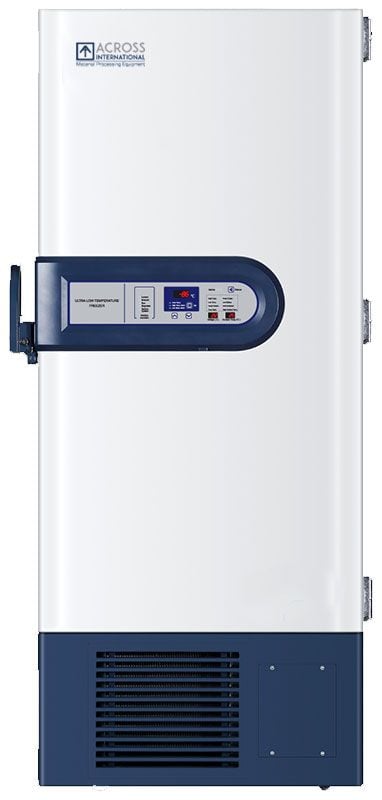

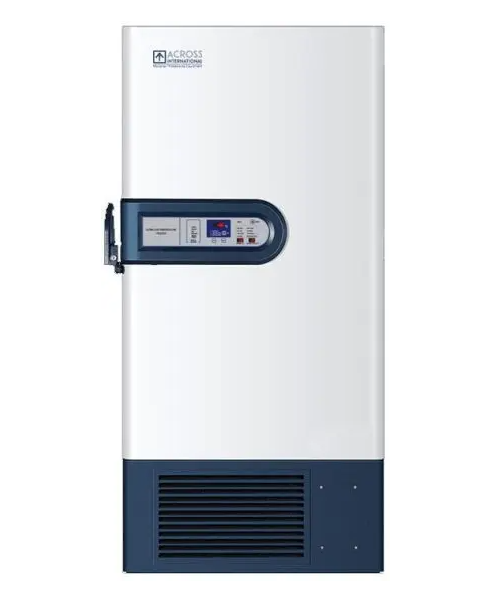

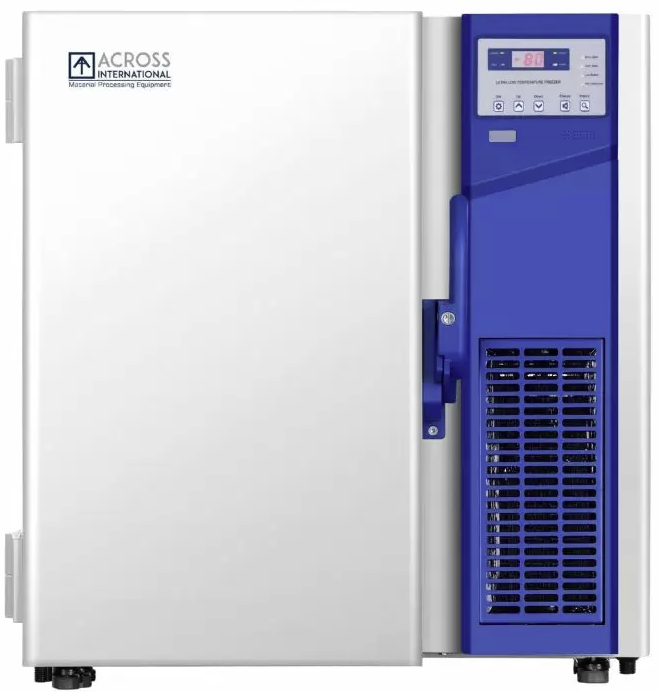

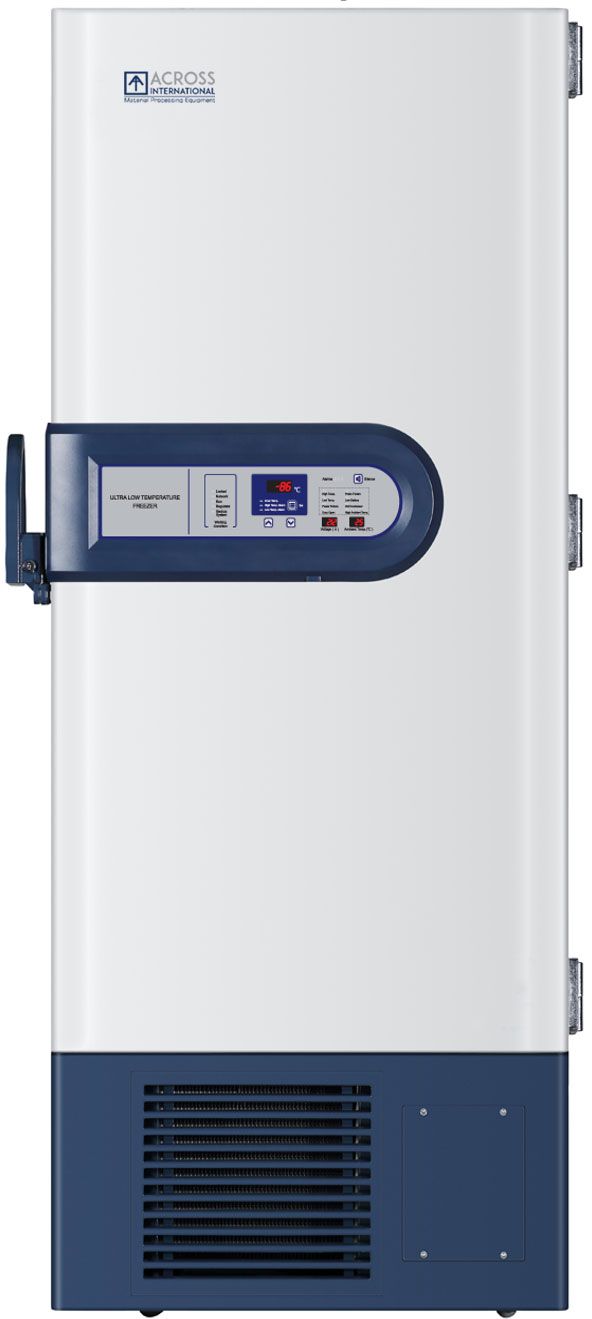

RapidChill Ultra-Low Temperature Freezers
Manufacturer: Across International
Across International's RapidChill Ultra-Low Temperature Freezer holds the top position in their laboratory freezers. These energy-efficient units are designed for fast cooling, ultra-low power consumption, and ease of maintenance. They have a temperature range of -40°C to -86°C and a low noise level of 46-50 dBA. Freezer compressors are hermetically sealed, industrial-grade compressors for ultra-low refrigerant applications. The cooling system is a hydrocarbon refrigeration system for maximum efficiency. Four different doors mean ease of access to minimize any frost build-up inside the cooling chamber. Safety features include door locks and a series of safety alarms.
Description
The Across International RapidChill series ultra-low temperature freezers are designed for fast cooling, low power consumption, very low noise, and ease of maintenance.
Features:
- microprocessor temperature controller
- SECOP (formerly known as Danfoss) compressor
- HC refrigeration system
- High/low-temperature alarms, power failure alarms, door open alarms, filter clogging alarms, and remote alarm contacts
- 48-hour battery backup for controller and alarm
- Keyed door lock and password protection
- Analog display for internal temperature, ambient temperature, input voltage, and error code
- 4 hours from ambient to -86°C
- Noise level between 46-50 dBA
- Powder coated steel chamber
Certifications & Compliances:
- UL 61010-1
- CSA C22.2
- Energy Star (G20h.110, G26h)
Warranty:
- 2-year full service warranty
- 3-year parts warranty
- 5-year compressor warranty
Please Note:
- For indoor use only
- Avoid direct sunlight and water spills
- Clean the condenser fins and remove frost from inside the chamber at least once a month
- Do not plug in your unit for the first 24 hours of receiving your unit.
| SKU | Door Type | Operating Temperature Range | Compliance | Hinge |
|---|---|---|---|---|
| G04h.110 | Solid Swing Door | -40°C to -86°C | UL 61010-1, CSA C22.2 | Left |
| G12h.110 | Solid Swing Door | -40°C to -86°C | UL 61010-1, CSA C22.2 | Right |
| G20h.110 | Solid Swing Door | -40°C to -86°C | UL 61010-1, CSA C22.2, Energy Star | Right |
| G26h | Solid Swing Door | -40°C to -86°C | UL 61010-1, CSA C22.2, Energy Star | Right |
|
RapidChill Series SpecSheet | Download |
| SKU | Dimensions | Electrical Information | Refrigerant | Controller |
|---|---|---|---|---|
| G04h.110 | 30.0 in x 26.0 in x 32.0 in | 110V (±10%), 60Hz, 6A, 1-PH, 680W | R600A (Stage 1), R1150 and R50 (Stage 2) | Microprocessor |
| G12h.110 | 32.7 in x 35.2 in x 72.7 in | 120V (±10%), 60Hz, 1-PH, 12A | R290 (Stage 1), R170 (Stage 2) | Microprocessor |
| G20h.110 | 36.0 in x 38.5 in x 77.0 in | 110V (±10%), 60Hz, 1-PH, 1000W | R290 (Stage 1), R170 (Stage 2) | Microprocessor |
| G26h | 38.5 in x 41.0 in x 78.0 in | 110V (±10%), 60Hz, 1-PH, 1000W | R290 (Stage 1), R170 (Stage 2) | Microprocessor |
Across International's RapidChill Ultra-Low Temperature Freezer holds the top position in their laboratory freezers. These energy-efficient units are designed for fast cooling, ultra-low power consumption, and ease of maintenance. They have a temperature range of -40°C to -86°C and a low noise level of 46-50 dBA. Freezer compressors are hermetically sealed, industrial-grade compressors for ultra-low refrigerant applications. The cooling system is a hydrocarbon refrigeration system for maximum efficiency. Four different doors mean ease of access to minimize any frost build-up inside the cooling chamber. Safety features include door locks and a series of safety alarms.
Starting at $7,490.00
Request A Quote
