ISF Floor Incubated Shakers

Name: ISF Floor Incubated Shakers
Brand: JeioTech
SKU: AAH23375U-GROUP

Manufacturer: JeioTech

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Ambient Temperature Range	Electrical Information	Price	Qty
AAH23375U AAH23375U	ISF-7100 Floor Incubated Shaker	+5°C to 80°C	120V, 60Hz, 7.3A	$14,936.00	+ -
AAH23575U AAH23575U	ISF-7100R Floor Refrigerated Incubated Shaker	-20°C to 80°C	120V, 60Hz, 10A	$16,773.00	+ -
AAH23475U AAH23475U	ISF-7200 Floor Incubated Shaker	+5°C to 80°C	120V, 60Hz, 7.3A	$14,936.00	+ -
AAH23675U AAH23675U	ISF-7200R Floor Refrigerated Incubated Shaker	-20°C to 80°C	120V, 60Hz, 10A	$16,773.00	+ -
Total $0.00

Use the Quantity box to select product first.

Accessories

Grouped product items
Cat Code	Description	Dimensions	For Use With	Price	Qty

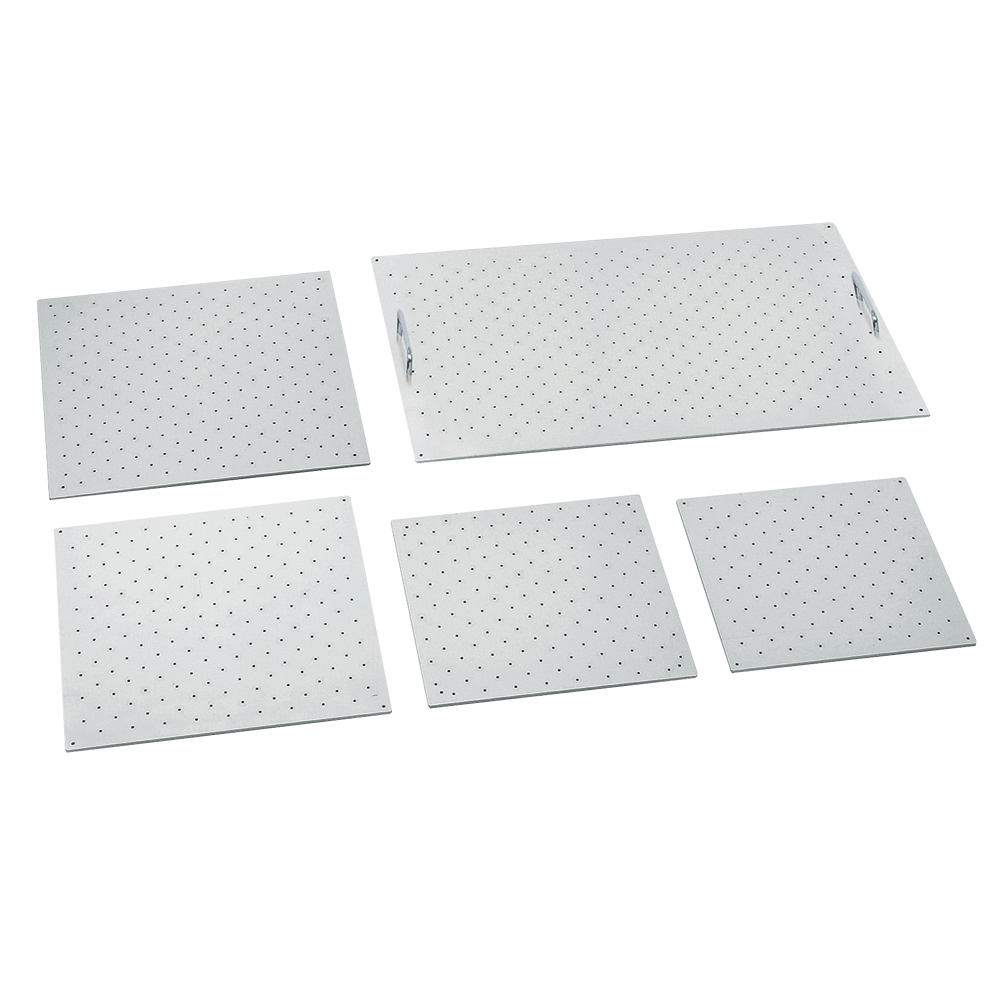

AAA23503-V3 AAA23503-V3	ISF-7000 Universal Platform	29.7 in x 20.5 in	ISF-7000 Series	$908.00	+ -

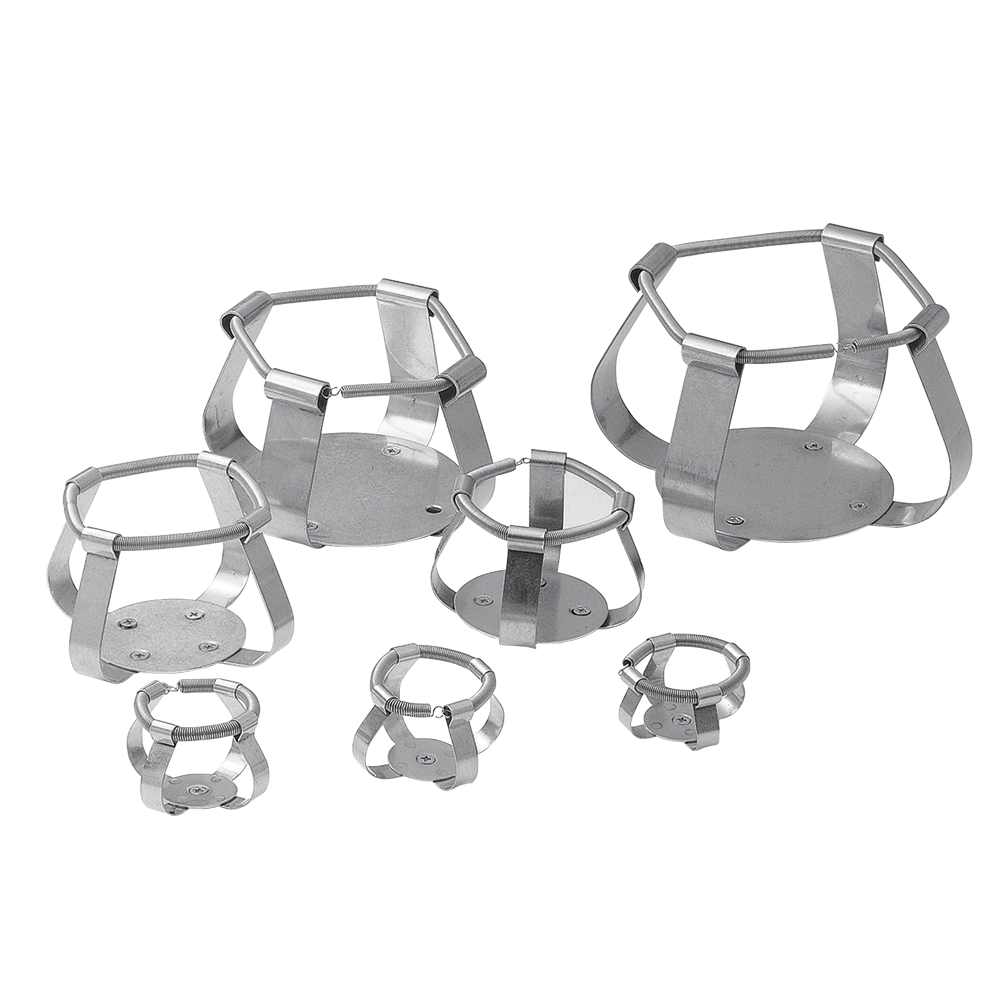

AAA23550 AAA23550	50 mL Erlenmeyer Flask Clamp	2 in x 2 in x 1.25 in	IST, ISS, ISF Series	$17.60	+ -
AAA23551 AAA23551	100 mL Erlenmeyer Flask Clamp	2.5 in x 2.5 in x 1.5 in	IST, ISS, ISF Series	$20.53	+ -
AAA23552 AAA23552	250 mL Erlenmeyer Flask Clamp	3 in x 3 in x 2.5 in	IST, ISS, ISF Series	$26.40	+ -
AAA23553 AAA23553	500 mL Erlenmeyer Flask Clamp	3 in x 3 in x 4 in	IST, ISS, ISF Series	$35.19	+ -
AAA23554 AAA23554	1 L Erlenmeyer Flask Clamp	5.5 in x 5.5 in x 3 in	IST, ISS, ISF Series	$41.06	+ -
AAA23555 AAA23555	2 L Erlenmeyer Flask Clamp	6.5 in x 6.5 in x 4.5 in	IST, ISS, ISF Series	$64.00	+ -
AAA23556 AAA23556	300 mL Erlenmeyer Flask Clamp	4.5 in x 4.5 in x 6.5 in	IST, ISS, ISF Series	$26.40	+ -
AAA23557 AAA23557	2800 mL Erlenmeyer Flask Clamp	8 in x 8 in x 4.5 in	IST, ISS, ISF Series	$64.00	+ -
AAA23558 AAA23558	4 L Erlenmeyer Flask Clamp	9 in x 9 in x 4.5 in	IST, ISS, ISF Series	$110.00	+ -
AAA23559 AAA23559	6 L Erlenmeyer Flask Clamp	10.5 in x 10.5 in x 5 in	IST, ISS, ISF Series	$142.00	+ -

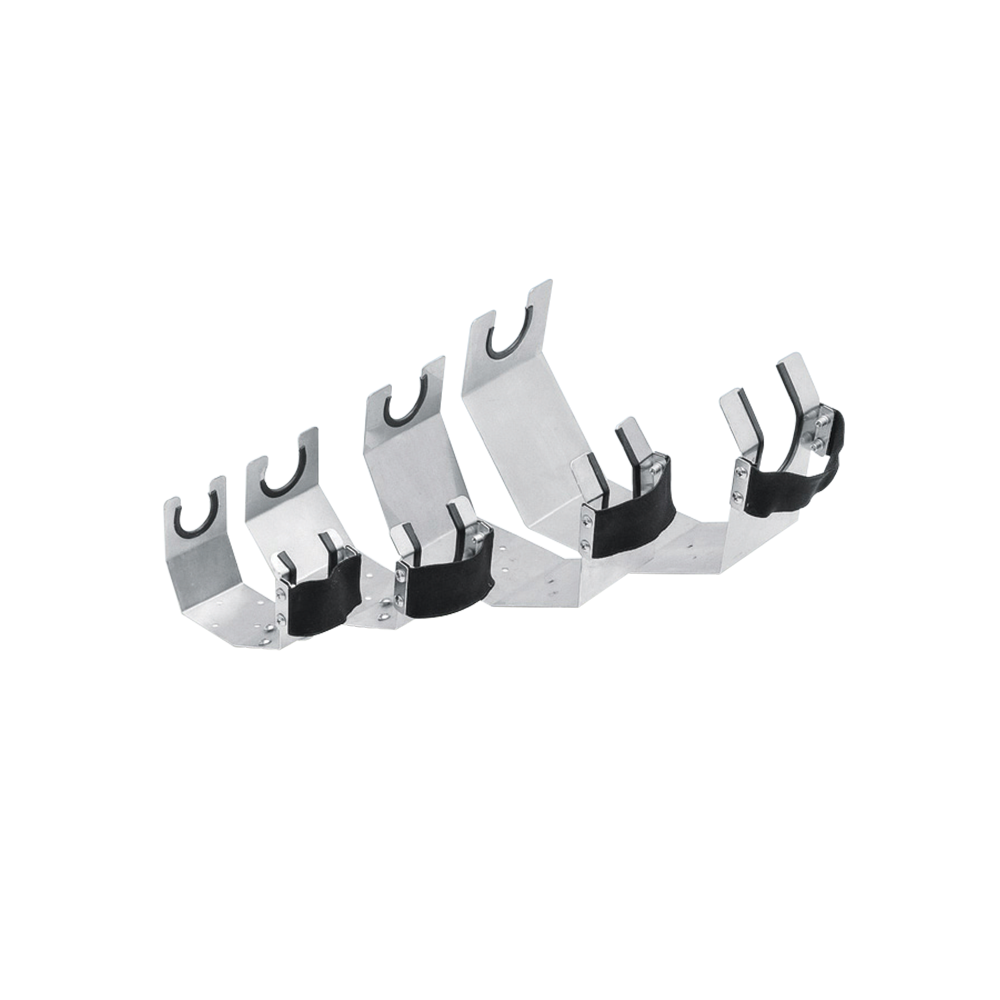

AAA23562 AAA23562	250 mL Separatory Funnel Clamp		IST, ISS, ISF Series	$80.00	+ -
AAA23563 AAA23563	500 mL Separatory Funnel Clamp		IST, ISS, ISF Series	$92.00	+ -
AAA23564 AAA23564	1 L Separatory Funnel Clamp		IST, ISS, ISF Series	$99.00	+ -
AAA23565 AAA23565	2 L Separatory Funnel Clamp		IST, ISS, ISF Series	$117.00	+ -

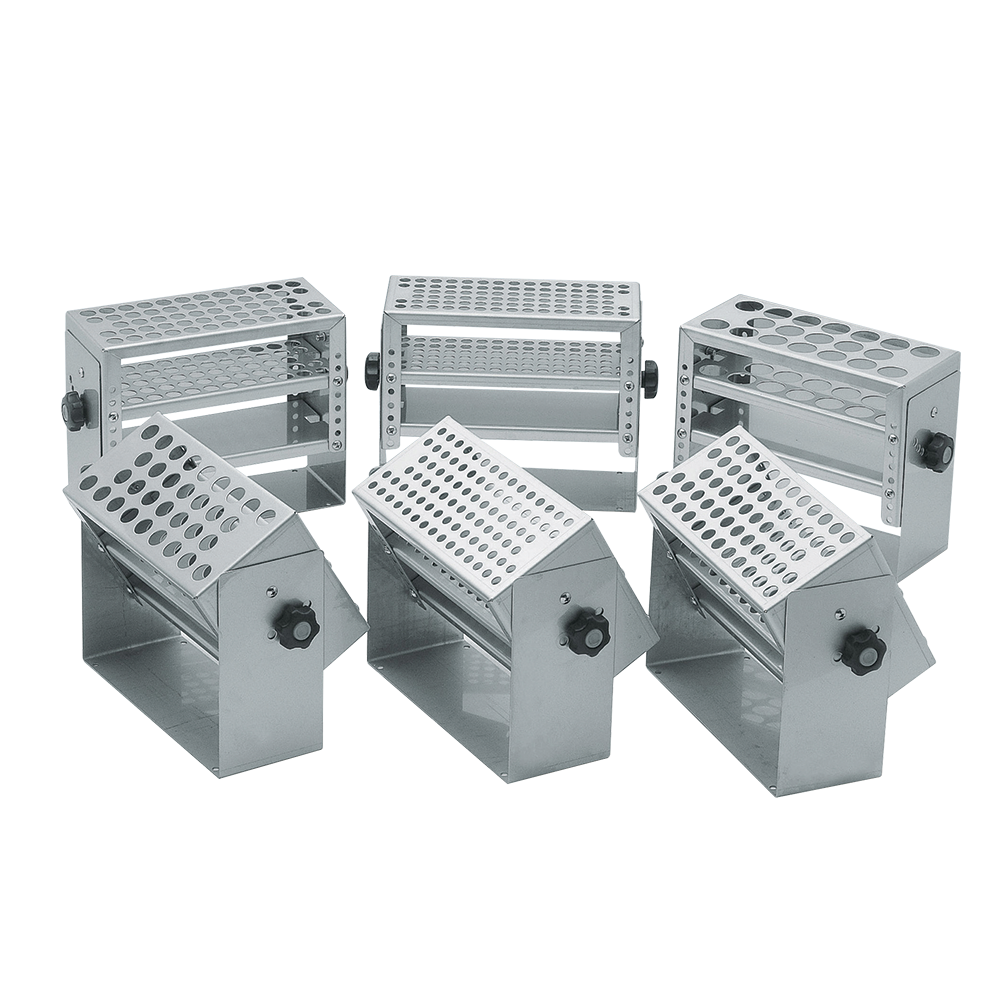

AAA23581 AAA23581	8 mm Test Tube Rack	9 in x 4 in x 7.5 in	IST, ISS, ISF Series	$417.00	+ -
AAA23582 AAA23582	10 mm Test Tube Rack	9 in x 4 in x 7.5 in	IST, ISS, ISF Series	$417.00	+ -
AAA23583 AAA23583	12 mm Test Tube Rack	9 in x 4 in x 7.5 in	IST, ISS, ISF Series	$417.00	+ -
AAA23584 AAA23584	14 mm Test Tube Rack	9 in x 4 in x 7.25 in	IST, ISS, ISF Series	$417.00	+ -
AAA23585 AAA23585	17 mm Test Tube Rack	9 in x 4 in x 7.5 in	IST, ISS, ISF Series	$417.00	+ -
AAA23586 AAA23586	25 mm Test Tube Rack	9 in x 4 in x 7.25 in	IST, ISS, ISF Series	$417.00	+ -
AAA23587 AAA23587	30 mm Test Tube Rack		IST, ISS, ISF Series	$417.00	+ -
AAA23593 AAA23593	50 mm Test Tube Rack		IST, ISS, ISF Series	$417.00	+ -
AAA23594 AAA23594	35 mm Test Tube Rack		IST, ISS, ISF Series	$417.00	+ -
AAA23651 AAA23651	Tower Micro-Plate Holder		IST, ISS, ISF Series	$305.00	+ -
AAA23652 AAA23652	Flat-A Micro-Plate Holder		IST, ISS, ISF Series	$269.00	+ -
AAA23653 AAA23653	Flat-B Micro-Plate Holder		IST, ISS, ISF Series	$237.00	+ -
AAA23654 AAA23654	Single Micro-Plate Holder		IST, ISS, ISF Series	$56.00	+ -

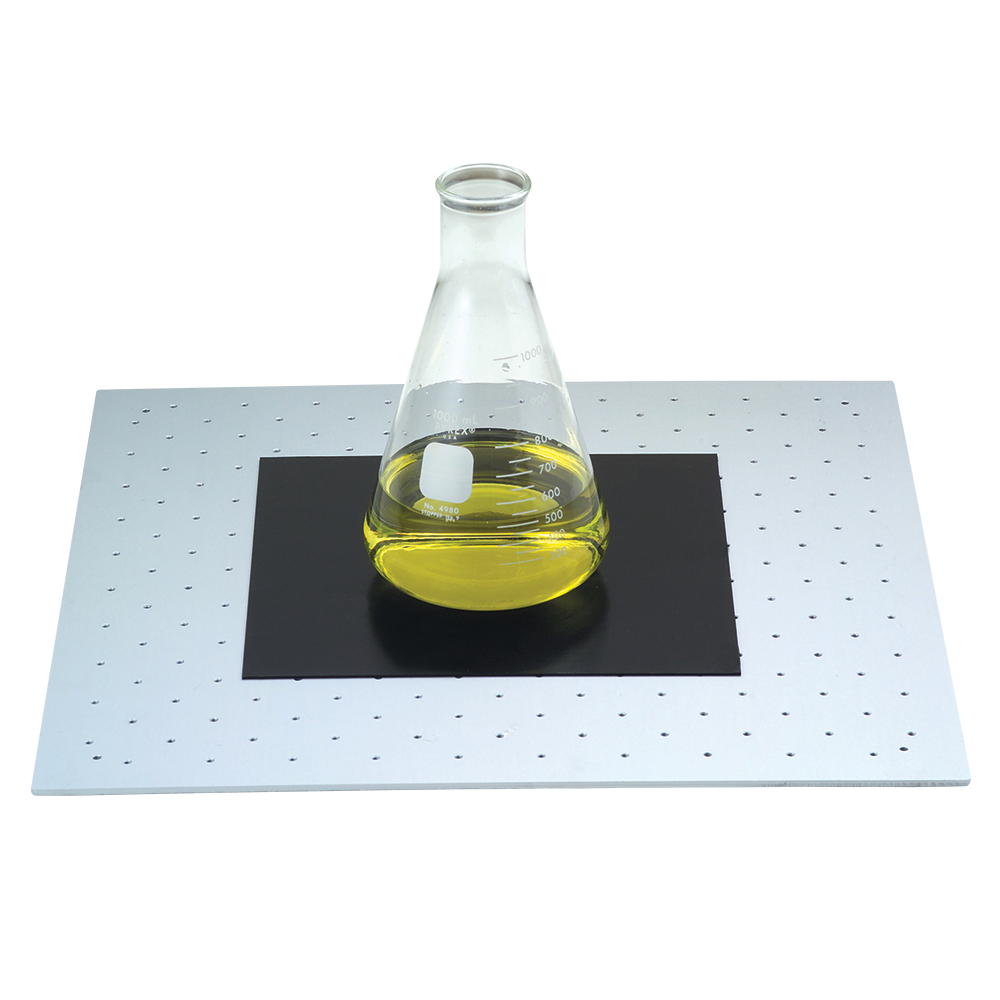

AAA30551 AAA30551	Lab Sticker Pad		IST, ISS, ISF Series	$250.00	+ -
Total $0.00

Use the Quantity box to select product first.

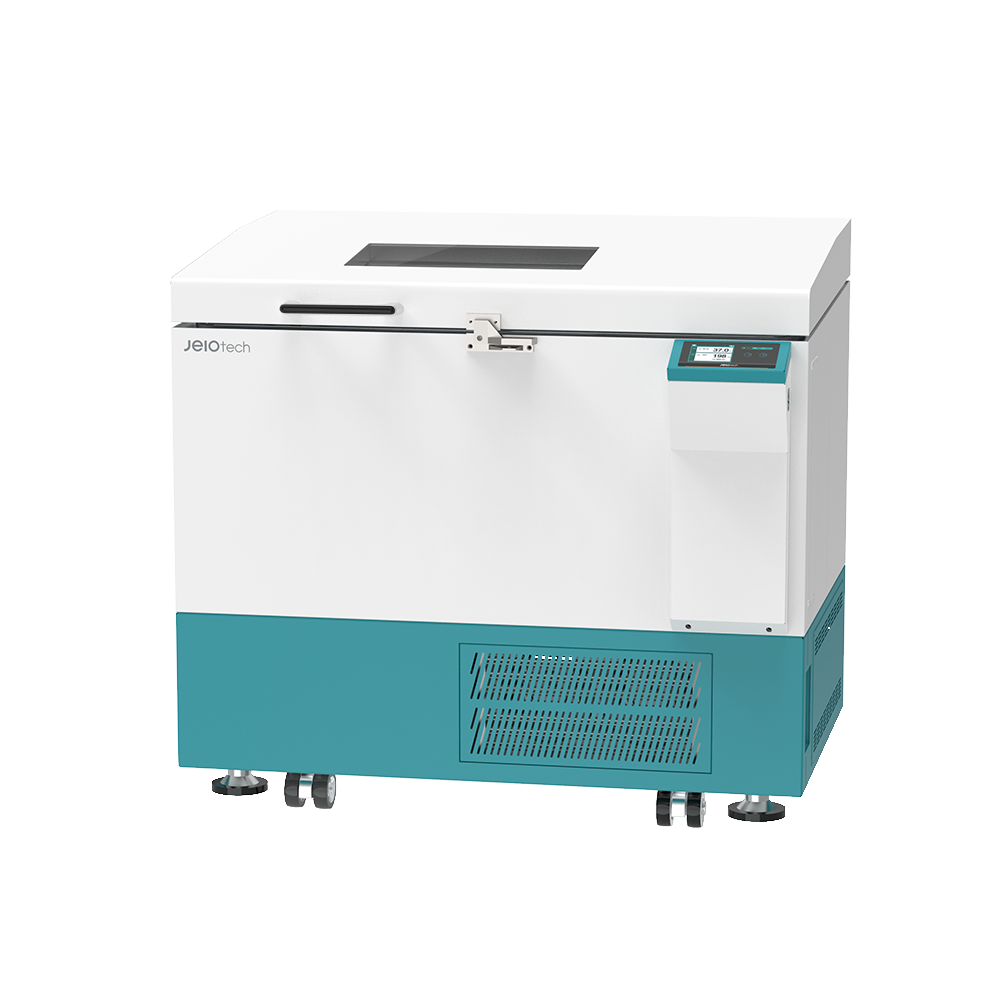

Experience high-capacity and precise shaking with the ISF Floor Incubated Shakers from JeioTech. These shakers are engineered for heavy workloads and feature rapid temperature control. Their exclusive direct-drive mechanism and triple cam system ensure quiet, maintenance-free operation and smooth acceleration, preventing spills, making them ideal for demanding laboratory applications.

Description

Overview

In Stock!

Lead Times May Vary

These floor-model incubated shakers offer large capacity, accommodating up to 6 L flasks, and deliver powerful shaking with efficient heating and cooling. Their exclusive, ergonomically designed drive mechanism ensures reliability.

Features:

Temperature range:

Ambient 5°C to 80°C for ISF-7100/7200
Ambient -20°C (Min. 4) to 80°C for ISF-7100R/7200R

Competitive high shaking speed up to 500 rpm

Speed range: 30 rpm to 500 rpm

Orbital shaking motion in various diameter

25.4 mm for ISF-7100/R
50.8 mm for ISF-7200/R

Microprocessor PID control
Three point temperature calibration/Automatic tuning
Wide speed range even with heavy workload

Ideal DD (Direct Drive) brushless motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation

Pleasant test environment by the smooth acceleration and deceleration control

Smooth start and smooth stop function prevents chemical spills from flasks or test tubes

High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door open
Air-tight silicone door seal with lockable door for safe storage of samples

Convenience:

Intuitive touch screen LCD controller with easy icons and logical menus
Easy-set digital timer for shaking operation (1 min to 999 hr 59 min)
Easy sample monitoring and convenient sample loading

Clear observation of samples without affecting inner chamber’s environment thanks to the transparent top viewing window with bright LED lamps
The lid is inclined gently towards the front for easy observation of samples in the chamber
Gas spring lid supports providing smooth motion, soft opening and closing

Repetitive task can be easily performed as the platform stops where it starts

Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process

Corrosion resistance stainless steel interior
Easy-access drain system with a quick disconnect valve offers great convenience to clean up of spills
Built-in RS-232 port and USB port for external control and data collection
Sturdy foot caster, beneficial for easy mobility during installation or relocation
Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection (when purchased LC GreenBox)

Safety:

Automatic run after power interruption
Temperature and shaking speed deviation alarm
Over-current protection
Triple independent temperature monitor system

Temperature deviation alarm (High/Low)
Electronic temperature limiter (High/Low)
Mechanical over-temperature limiter (High)

Environment-friendly CFC-free refrigerant (ISF-7100R/7200R)
Audible and visible open door alarms

Specifications

SKU	Capacity	Speed Range
AAH23475U	270 L (9.5 cu ft.)	30 rpm to 300 rpm
AAH23675U	270 L (9.5 cu ft.)	30 rpm to 300 rpm
AAH23375U	270 L (9.5 cu ft.)	30 rpm to 500 rpm
AAH23575U	270 L (9.5 cu ft.)	30 rpm to 500 rpm

Additional Info

SKU	Platform Size	Internal Dimensions	External Dimensions
AAH23475U	29.7 in x 20.5 in	35.2 in x 25.0 in x 18.9 in	44.4 in x 33.6 in x 40.8 in
AAH23675U	29.7 in x 20.5 in	35.2 in x 25.0 in x 18.9 in	44.4 in x 33.6 in x 40.8 in
AAH23375U	29.7 in x 20.5 in	35.2 in x 25.0 in x 18.9 in	44.4 in x 33.6 in x 40.8 in
AAH23575U	29.7 in x 20.5 in	35.2 in x 25.0 in x 18.9 in	44.4 in x 33.6 in x 40.8 in

Starting at $14,936.00

Select a product below and add it to your cart to request a quote.
