Incu-Shaker™ Stackable Shaking Incubators
Manufacturer: Benchmark Scientific
Description

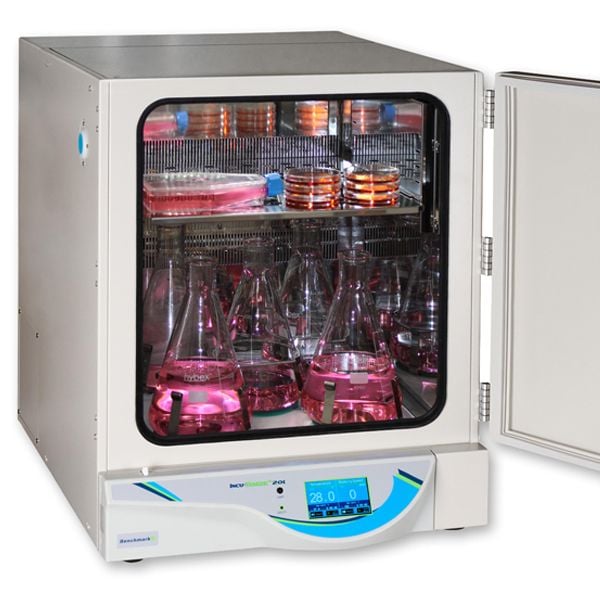

The Benchmark Incu-Shaker™ 20L and 20LR Stackable Shaking Incubators offer the highest capacity in the Incu-Shaker line. With a large shaking platform and a +22-inch chamber height, the 20L series is capable of high-throughput culture growth in flask sizes up to 5/6 liters. These shakers can be stacked (up to two units high), increasing the capacity while maximizing floor space in the laboratory.
The internal chambers are constructed of high-grade stainless steel (304), and when combined with our proprietary heat distribution technology, the temperature is precisely maintained throughout the chamber. The powerful brushless induction motor drive is designed for years of trouble-free service, even under continuous use conditions with heavy loads. Noise and vibration are minimized by an advanced, computer-designed motor isolation system that results in minimal vibration at all speed levels.
Features:
- Convenient stacking with included brackets
- Adjustable shelf for height as needed for additional clearance
- Stainless steel chamber for temperature uniformity
- Full-color touch screen controls
- Access port on the left side for external temperature monitoring or power cables
Maximum Capacity:
| Flask Size | Max Capacity |
|---|---|
125 mL Flasks |
36 |
250 mL Flasks |
25 |
500 mL Flasks |
16 |
1000 mL Flasks |
9 |
2000 mL Flasks |
5 |
2.8 L Fernbach |
5 |
3000 mL Flasks |
4 |
5000 mL Flasks |
4 |
| SKU | Platform Size | Mixing Orbit | Temperature Accuracy | Temperature Uniformity | Material | Includes |
|---|---|---|---|---|---|---|
| H3020-E | 18 in x 18 in | 19 mm | ± 0.1°C at 37°C | ± 0.5°C at 37°C | Stainless Steel, 304 | 18 in x 18 in Non-Slip Rubber Mat Platform, Stacking Brackets, Adjustable Shelf |
| H3022 | 18 in x 18 in | 19 mm | ± 0.1°C at 37°C | ± 0.5°C at 37°C | Stainless Steel, 304 | 18 in x 18 in Non-Slip Rubber Mat Platform, Stacking Brackets, Adjustable Shelf |
| H3022-E | 18 in x 18 in | 19 mm | ± 0.1°C at 37°C | ± 0.5°C at 37°C | Stainless Steel, 304 | 18 in x 18 in Non-Slip Rubber Mat Platform, Stacking Brackets, Adjustable Shelf |
| H3020 | 18 in x 18 in | 19 mm | ± 0.1°C at 37°C | ± 0.5°C at 37°C | Stainless Steel, 304 | 18 in x 18 in Non-Slip Rubber Mat Platform, Stacking Brackets, Adjustable Shelf |
| SKU | Dimensions | Warranty | Power Requirement | Increments | Timer Range | Chamber Size |
|---|---|---|---|---|---|---|
| H3020-E | 23.6 in x 34.3 in x 28.7 in | 2 Year | 230V | 0.1°C | 1 min to 48 hr. or Continuous | 20 in x 19.9 in x 22.7 in |
| H3022 | 23.6 in x 34.3 in x 28.7 in | 2 Year | 115V | 0.1°C | 1 min to 48 hr. or Continuous | 20 in x 19.9 in x 22.7 in |
| H3022-E | 23.6 in x 34.3 in x 28.7 in | 2 Year | 230V | 0.1°C | 1 min to 48 hr. or Continuous | 20 in x 19.9 in x 22.7 in |
| H3020 | 23.6 in x 34.3 in x 28.7 in | 2 Year | 115V | 0.1°C | 1 min to 48 hr. or Continuous | 20 in x 19.9 in x 22.7 in |
Starting at from $10,094.95 Sale $8,580.71
Select a product below and add it to your cart to request a quote.
