VDR Round Vacuum Desiccators

Name: VDR Round Vacuum Desiccators
Brand: JeioTech
SKU: AAAD2011-GROUP

Manufacturer: JeioTech

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Capacity	Price	Qty
AAAD2021 AAAD2021	6 L VDR-20G Desiccator with Gauge	6 L (0.2 cu ft.)	$341.00	+ -
AAAD2041 AAAD2041	6 L VDR-20UG Desiccator with Gauge and UV Block Effect	6 L (0.2 cu ft.)	$426.00	+ -

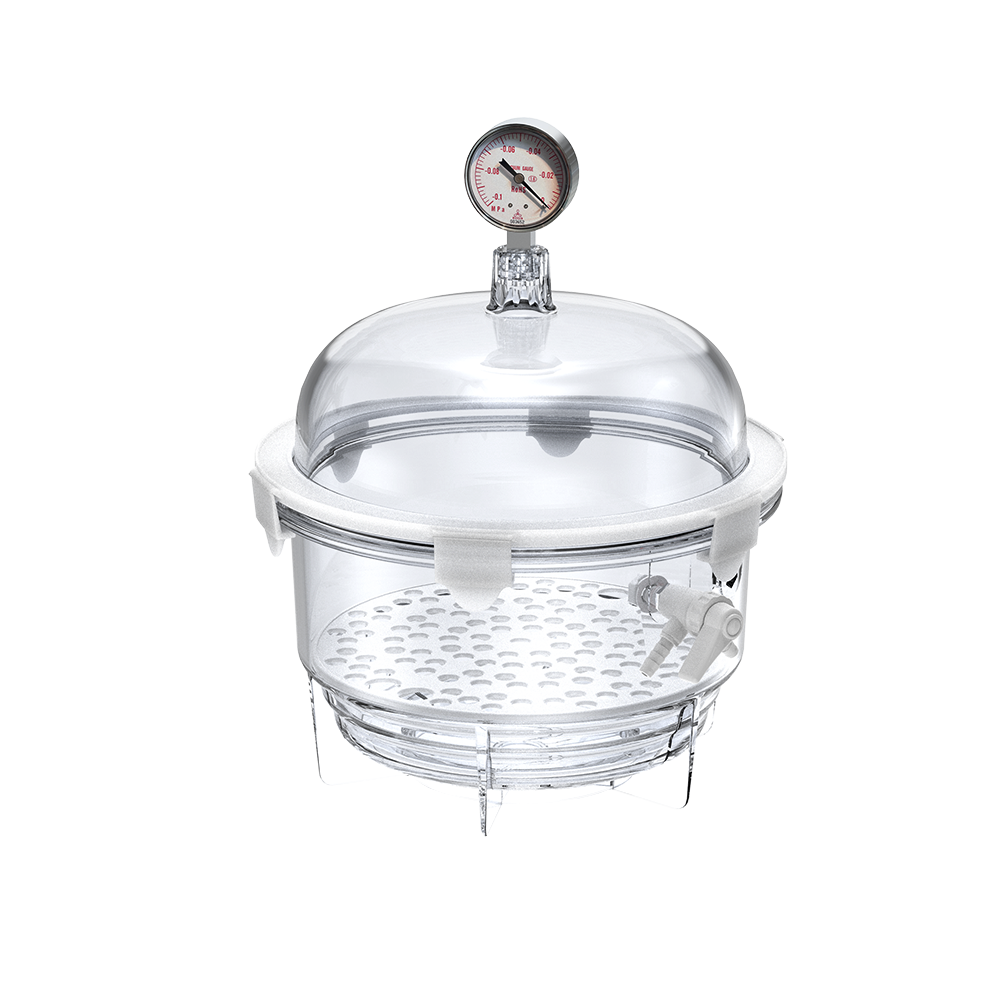

AAAD2121 AAAD2121	10 L VDR-25G Desiccator with Gauge	10 L (0.4 cu ft.)	$392.00	+ -
AAAD2141 AAAD2141	10 L VDR-25UG Desiccator with Gauge and UV Block Effect	10 L (0.4 cu ft.)	$488.00	+ -

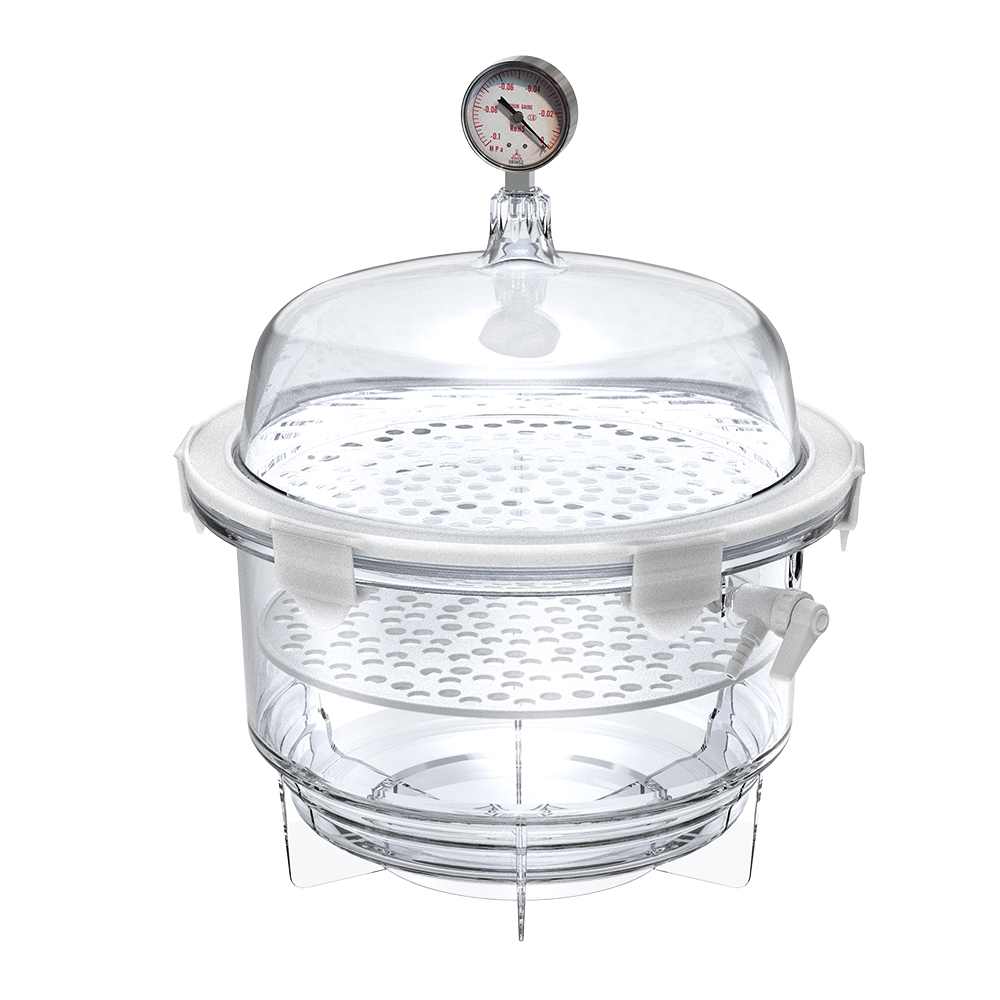

AAAD2221 AAAD2221	20 L VDR-30G Desiccator with Gauge	20 L (0.7 cu ft.)	$477.00	+ -
AAAD2241 AAAD2241	20 L VDR-30UG Desiccator with Gauge and UV Block Effect	20 L (0.7 cu ft.)	$585.00	+ -
Total $0.00

Use the Quantity box to select product first.

The VDR Round Vacuum Desiccators from JeioTech offer a lightweight yet exceptionally strong design, maintaining a vacuum of 1 Torr for over 72 hours. Constructed from highly transparent, shatterproof polycarbonate with a greaseless silicone gasket, they provide a clean environment for your samples. With models featuring optional vacuum gauges and UV blocking capabilities, these desiccators are a versatile and reliable choice for any laboratory setting.

Description

Overview

In Stock!

Lead Times May Vary

JeioTech round Vacuum Desiccators offer a lightweight yet high tensile strength design, ensuring durability and reliability. These desiccators are available with an optional vacuum gauge, allowing for easy monitoring of vacuum levels.

Features:

Maximum vacuum of 1 Torr (1.33 x 10-4 Mpa) for more than 72 hours
High quality silicone gasket ensures greaseless airtight seal for the clean and cost effective test environment
Highly transparent, shatterproof, non-corrosive, and easy to clean polycarbonate construction
Three-way stopcock provides great convenience for consistent and uniform vacuum draw, vacuum release, or gas exchange

The barbed fitting on each side secures attachment of tubing

Flange lock holding the top and the bottom together during non-vacuum conditions
Various models available with respect to sizes and UV blocking effect
Minimizing damages or discoloration of light-sensitive samples (for U/UG models)
A vacuum gauge attachable at the center of the lid for easy vacuum level checking (for G/UG models)
The top and bottom of round vacuum desiccators and cylindrical vacuum desiccators are compatible with each other for diverse use
RoHS except for VDR-U models

Specifications

SKU	Type	Material	Gauge	Color
AAAD2021	Round	Polycarbonate	0 Mpa to -0.1 Mpa	Clear
AAAD2041	Round	Polycarbonate	0 Mpa to -0.1 Mpa	Amber
AAAD2121	Round	Polycarbonate	0 Mpa to -0.1 Mpa	Clear
AAAD2141	Round	Polycarbonate	0 Mpa to -0.1 Mpa	Amber
AAAD2221	Round	Polycarbonate	0 Mpa to -0.1 Mpa	Clear
AAAD2241	Round	Polycarbonate	0 Mpa to -0.1 Mpa	Amber

Downloads

JeioTech Desiccator Brochure

Download

Additional Info

SKU	Internal Dimensions	External Dimensions	Certification	Barb Fitting Diameter
AAAD2021	7.2 in x 6.8 in	9.9 in x 11 in	RoHS Compliant	0.37 in (9.5 mm)
AAAD2041	7.2 in x 6.8 in	9.9 in x 11 in		0.37 in (9.5 mm)
AAAD2121	9.5 in x 8.1 in	12.4 in x 12.8 in	RoHS Compliant	0.37 in (9.5 mm)
AAAD2141	9.5 in x 8.1 in	12.4 in x 12.8 in		0.37 in (9.5 mm)
AAAD2221	11.8 in x 10.5 in	15.9 in x 15.7 in	RoHS Compliant	0.37 in (9.5 mm)
AAAD2241	11.8 in x 10.5 in	15.9 in x 15.7 in		0.37 in (9.5 mm)
