Guardian™ 5000 Series Hot Plates
Manufacturer: Ohaus Corporation
Description
The Ohaus Guardian™ 5000 Series Hot Plates are engineered for precision, safety, and versatility across research, academic, and industrial settings. Prioritizing simplicity and efficiency, these digital hot plates supply powerful heating up to 550°C with an intuitive interface and robust features. They are the ideal solution for temperature-sensitive reactions, sterilization, denaturing, and general sample preparation, providing consistently reliable results.
These hot plates feature premium hardware and software to support diverse applications safely. The backlit LCD-display provides clear status monitoring, while RS232 connectivity allows for convenient data logging and remote control. For ultimate precision, the hot plates offer 3 temperature control modes for quick heating without overshoot. Safety is paramount: the hot plates are equipped with both hot surface indicators and audible alarms, and the large, angled front panel allows for easy distance monitoring. A kit option that includes an external probe and holder is available for applications that require the highest degree of temperature accuracy directly within the sample.
Features:
- Powerful heating up to 550°C with 3 temperature control modes to prevent overshoot
- Backlit LCD display and simple controls for user-friendly operation
- RS232 connectivity for remote control and data logging
- Hot surface indicator and audible alarms for enhanced safety

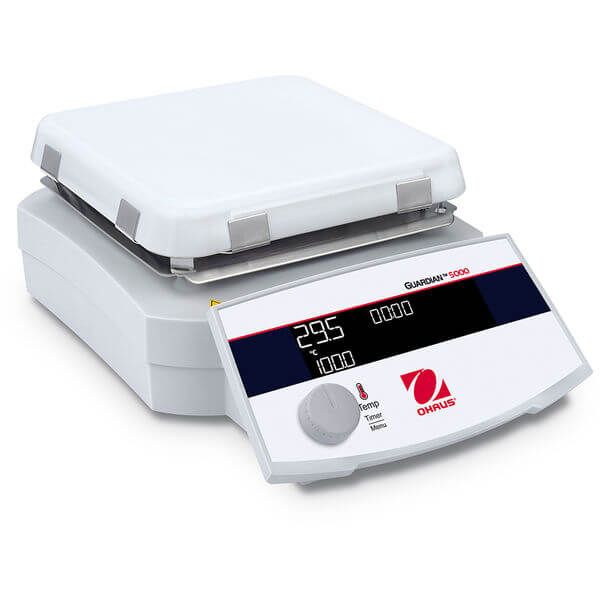

- Ceramic 7 in x 7 in square top plate with a large, angled front panel for easy distance monitoring

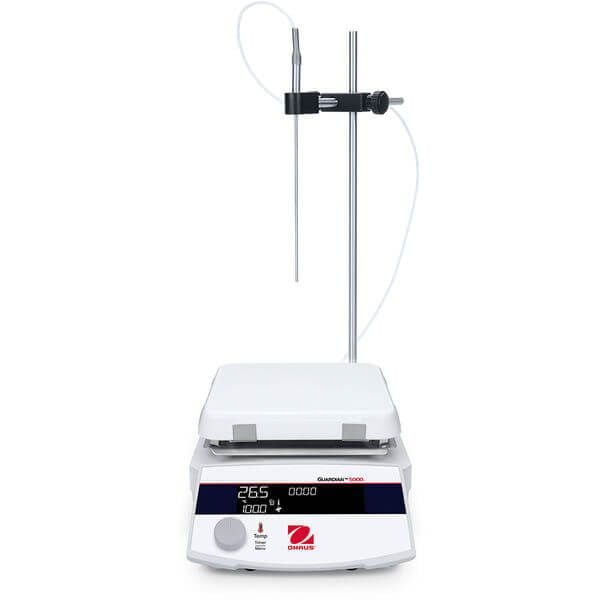

- Kit option available with an external temperature probe and holder for precise sample control
- Durable design with IP32 protection
| SKU | Temperature Accuracy | Power Requirement | Model # |
|---|---|---|---|
| 30541633 | ±0.2°C + PT1000 (Class A) Tol. | 100-120 VAC, 15A, 50/60Hz, 1582 W | E-G52HP07C |
| 30541634 | ±0.2°C + PT1000 (Class A) Tol. | 220-240 VAC, 7A, 50/60Hz, 1050 W | E-G52HP07C |
| 30981780 | ±0.2°C + PT1000 (Class A) Tol. | 100-120 VAC, 15A, 50/60Hz, 1582 W | E-G52HP07C -K1 |
| 30981781 | ±0.2°C + PT1000 (Class A) Tol. | 220-240 VAC, 7A, 50/60Hz, 1050 W | E-G52HP07C -K1 |
| SKU | Communication | Calibration | Display | Dimensions | Includes |
|---|---|---|---|---|---|
| 30541633 | Ethernet, RS232, USB | Temperature Calibration 3 Plate/3 Probe | LCD | 12.94 in x 8.69 in x 4.56 in | |
| 30541634 | Ethernet, RS232, USB | Temperature Calibration 3 Plate/3 Probe | LCD | 12.94 in x 8.69 in x 4.56 in | |
| 30981780 | Ethernet, RS232, USB | Temperature Calibration 3 Plate/3 Probe | LCD | 12.94 in x 8.69 in x 4.56 in | Temperature Probe, Holder Kit |
| 30981781 | Ethernet, RS232, USB | Temperature Calibration 3 Plate/3 Probe | LCD | 12.94 in x 8.69 in x 4.56 in | Temperature Probe, Holder Kit |
Starting at $539.00
Select a product below and add it to your cart to request a quote.
