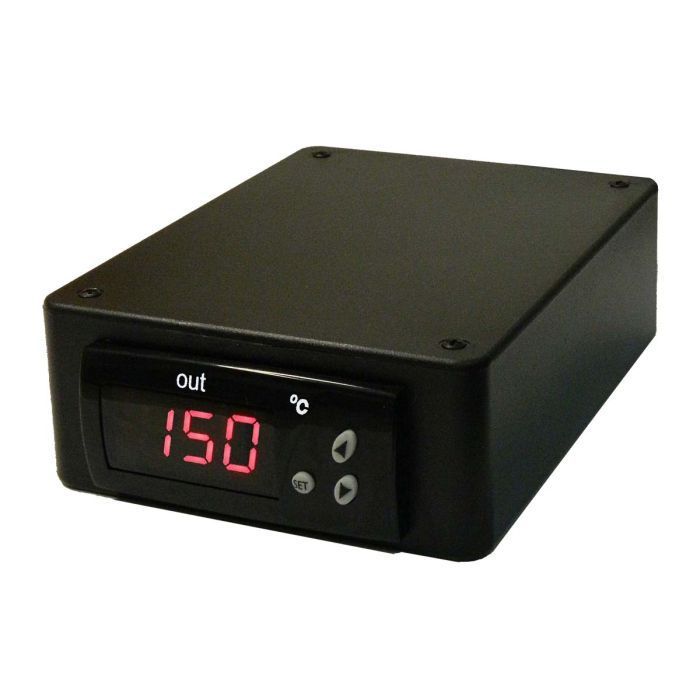

SDC Digital Benchtop Temperature Controllers

BriskHeat SDC Benchtop Digital Temperature Controller is compatible with a wide range of heaters and surface heating applications. The Digital Temperature Controller is designed for general-purpose use in indoor environments to control temperatures on applications requiring automatic temperature control.

Features:

• 3-key push button interface
• Includes thermocouple and power output cords requiring automatic temperature control
• Compact benchtop design
• Configuration options below support either J-Type or K-Type Thermocouples
• Voltage: 120 or 240 VAC
• Maximum Amp Load: 10 amps
• Temperature Display Units: °F or °C based on model
• Sensor Input: 5 ft (1.5 m) Type-J or Type-K Thermocouple factory installed
• Accuracy: ± 1% full span
• Hysteresis: Adjustable setting from 1° to 99° (°F or °C) Alarms: Audible; Programmable for high or low range
• Special Features: Password protection for all parameters except set-point; Sensor break operation option

Environmental Exposures:

• Operating range: 32°F to 158°F (0°C to 70°C)
• Storage range: -4°F to 176°F (-20°C to 80°C)
• Relative humidity: < 80% non-condensing temperatures
• Enclosure Dimensions: 5.5 in W x 1.75 in H x 4.25 in D (140 mm W x 45 mm H x 108 mm D)

*Maximum temperature based on thermocouple, not temperature controller range
