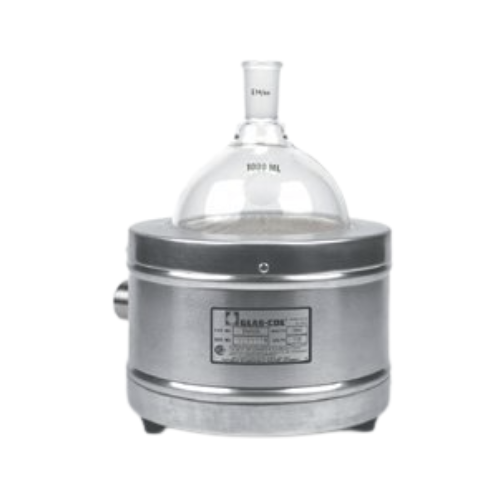

TM Series Round Bottom Flask Mantles

Name: TM Series Round Bottom Flask Mantles
Brand: Glas-Col LLC
SKU: 100B TM117-GROUP

Manufacturer: Glas-Col LLC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Quantity	Capacity	Electrical Information	Price	Qty
100B TM100 100B TM100	200 mL Series TM Round Bottom Flask Mantle, 115V	Each	200 mL	115V, 100W	$327.00	+ -
100B TM101 100B TM101	200 mL Series TM Round Bottom Flask Mantle, 230V	Each	200 mL	230V, 100W	$347.00	+ -
100B TM102 100B TM102	250 mL Series TM Round Bottom Flask Mantle, 115V	Each	250 mL	115V, 180W	$332.00	+ -
100B TM103 100B TM103	250 mL Series TM Round Bottom Flask Mantle, 230V	Each	250 mL	230V, 180W	$358.00	+ -
100B TM104 100B TM104	300 mL Series TM Round Bottom Flask Mantle, 115V	Each	300 mL	115V, 180W	$358.00	+ -
100B TM105 100B TM105	300 mL Series TM Round Bottom Flask Mantle, 230V	Each	300 mL	230V, 180W	$370.00	+ -
100B TM106 100B TM106	500 mL Series TM Round Bottom Flask Mantle, 115V	Each	500 mL	115V, 270W	$382.00	+ -
100B TM107 100B TM107	500 mL Series TM Round Bottom Flask Mantle, 230V	Each	500 mL	230V, 270W	$401.00	+ -
100B TM108 100B TM108	1000 mL Series TM Round Bottom Flask Mantle, 115V	Each	1000 mL	115V, 380W	$405.00	+ -
100B TM109 100B TM109	1000 mL Series TM Round Bottom Flask Mantle, 230V	Each	1000 mL	230V, 380W	$428.00	+ -
100B TM110 100B TM110	2000 mL Series TM Round Bottom Flask Mantle, 115V	Each	2000 mL	115V, 500W	$424.00	+ -
100B TM111 100B TM111	2000 mL Series TM Round Bottom Flask Mantle, 230V	Each	2000 mL	230V, 500W	$445.00	+ -
100B TM112 100B TM112	3000 mL Series TM Round Bottom Flask Mantle, 115V	Each	3000 mL	115V, 500W	$505.00	+ -
100B TM113 100B TM113	3000 mL Series TM Round Bottom Flask Mantle, 230V	Each	3000 mL	230V, 500W	$526.00	+ -
100B TM114 100B TM114	5000 mL Series TM Round Bottom Flask Mantle, 115V	Each	5000 mL	115V, 600W	$626.00	+ -
100B TM115 100B TM115	5000 mL Series TM Round Bottom Flask Mantle, 230V	Each	5000 mL	230V, 600W	$647.00	+ -
100B TM116 100B TM116	12000 mL Series TM Round Bottom Flask Mantle, 115V	Each	12000 mL	115V, 650W (2)	$1,170.00	+ -
100B TM117 100B TM117	12000 mL Series TM Round Bottom Flask Mantle, 230V	Each	12000 mL	230V, 650W (2)	$1,190.00	+ -
100B TM118 100B TM118	22000 mL Series TM Round Bottom Flask Mantle, 115V	Each	22000 mL	115V, 770W (2)	$1,346.00	+ -
100B TM119 100B TM119	22000 mL Series TM Round Bottom Flask Mantle, 230V	Each	22000 mL	230V, 770W (2)	$1,365.00	+ -
100B TM120 100B TM120	50000 mL Series TM Round Bottom Flask Mantle, 115V	Each	50000 mL	115V, 1000W (3)	$2,135.00	+ -
100B TM121 100B TM121	50000 mL Series TM Round Bottom Flask Mantle, 230V	Each	50000 mL	230V, 1000W (3)	$2,153.00	+ -
100B TM122 100B TM122	72000 mL Series TM Round Bottom Flask Mantle, 230V	Each	72000 mL	230V, 2000W (2)	$2,432.00	+ -
100B TM94 100B TM94	50 mL Series TM Round Bottom Flask Mantle, 115V	Each	50 mL	115V, 60W	$327.00	+ -
100B TM96 100B TM96	100 mL Series TM Round Bottom Flask Mantle, 115V	Each	100 mL	115V, 80W	$327.00	+ -
100B TM97 100B TM97	100 mL Series TM Round Bottom Flask Mantle, 230V	Each	100 mL	230V, 80W	$347.00	+ -
100B TM98 100B TM98	125 mL Series TM Round Bottom Flask Mantle, 115V	Each	125 mL	115V, 80W	$327.00	+ -
100B TM99 100B TM99	125 mL Series TM Round Bottom Flask Mantle, 230V	Each	125 mL	230V, 80W	$347.00	+ -
Total $0.00

Use the Quantity box to select product first.

The TM Series Round Bottom Flask Mantle delivers safe, uniform, and efficient heating for your laboratory applications. Engineered to eliminate uneven heating and hot spots, this spherical-style mantle ensures maximum surface coverage while giving you a clear view of your flask contents. Unlike traditional Bunsen burners and hot plates, the TM Series offers superior temperature uniformity and reliable performance, making it the ideal choice for heating organic liquids and other demanding applications.

Description

Overview

In Stock!

Lead Times May Vary.

Each TM Series Round Bottom Flask Mantle is built with a rigid aluminum housing for durability and strength, while the soft fabric interior gently nests your glassware to minimize the risk of thermal shock. Larger mantles are equipped with multiple heating circuits, providing precise temperature control, even when the flask is less than half full. With a maximum internal operating temperature of 450°C, the TM Series mantle is designed to meet the needs of modern labs.

Features:

Accommodates round bottom spherical glass flasks
Rigid aluminum housing provides superior strength and vessel support
Soft fabric interior reduces risk of thermal shock and glassware damage
Maximum internal operating temperature of 450°C for demanding applications
Small sizes include stability feet to improve balance and keep exterior cooler
Larger mantles feature multiple circuits for precise temperature control
100B TM94 through 100B TM118 detachable 4-ft., 3-wire cord and locking connector
100B TM120 and 100B TM122-terminal box

Note: Heating mantles and tapes must be operated through a power control.

Specifications

SKU	Diameter	Height	Depth	Outside Diameter	Material
100B TM100	76 mm	4.75 in	1.50 in	6.25 in	Aluminum
100B TM101	76 mm	4.75 in	1.50 in	6.25 in	Aluminum
100B TM102	83 mm	4.75 in	1.63 in	6.25 in	Aluminum
100B TM103	83 mm	4.75 in	1.63 in	6.25 in	Aluminum
100B TM104	86 mm	4.75 in	1.69 in	6.25 in	Aluminum
100B TM105	86 mm	4.75 in	1.69 in	6.25 in	Aluminum
100B TM106	101 mm	5.00 in	2.0 in	6.25 in	Aluminum
100B TM107	101 mm	5.00 in	2.0 in	6.25 in	Aluminum
100B TM108	130 mm	5.00 in	2.56 in	7.50 in	Aluminum
100B TM109	130 mm	5.00 in	2.56 in	7.50 in	Aluminum
100B TM110	170 mm	6.00 in	3.38 in	10.00 in	Aluminum
100B TM111	170 mm	6.00 in	3.38 in	10.00 in	Aluminum
100B TM112	183 mm	6.00 in	3.60 in	10.00 in	Aluminum
100B TM113	183 mm	6.00 in	3.60 in	10.00 in	Aluminum
100B TM114	220 mm	7.00 in	4.31 in	12.00 in	Aluminum
100B TM115	220 mm	7.00 in	4.31 in	12.00 in	Aluminum
100B TM116	293 mm	9.00 in	5.77 in	16.50 in	Aluminum
100B TM117	293 mm	9.00 in	5.77 in	16.50 in	Aluminum
100B TM118	347 mm	10.00 in	6.81 in	19.00 in	Aluminum
100B TM119	347 mm	10.00 in	6.81 in	19.00 in	Aluminum
100B TM120	456 mm	13.00 in	8.98 in	24.00 in	Aluminum
100B TM121	456 mm	13.00 in	8.98 in	24.00 in	Aluminum
100B TM122	522 mm	14.00 in	10.19 in	26.00 in	Aluminum
100B TM94	48 mm	4.75 in	.94 in	6.25 in	Aluminum
100B TM96	60 mm	4.75 in	1.19 in	6.25 in	Aluminum
100B TM97	60 mm	4.75 in	1.19 in	6.25 in	Aluminum
100B TM98	70 mm	4.75 in	1.38 in	6.25 in	Aluminum
100B TM99	70 mm	4.75 in	1.38 in	6.25 in	Aluminum

Downloads

Glas-Col Product Brochure

Download

Additional Info

SKU	Max Temperature	Certification
100B TM100	752°F (400°C)	CSA
100B TM101	752°F (400°C)
100B TM102	752°F (400°C)	CSA
100B TM103	752°F (400°C)
100B TM104	752°F (400°C)	CSA
100B TM105	752°F (400°C)
100B TM106	752°F (400°C)	CSA
100B TM107	752°F (400°C)
100B TM108	752°F (400°C)	CSA
100B TM109	752°F (400°C)
100B TM110	752°F (400°C)	CSA
100B TM111	752°F (400°C)
100B TM112	752°F (400°C)	CSA
100B TM113	752°F (400°C)
100B TM114	752°F (400°C)	CSA
100B TM115	752°F (400°C)
100B TM116	752°F (400°C)	CSA
100B TM117	752°F (400°C)
100B TM118	752°F (400°C)	CSA
100B TM119	752°F (400°C)
100B TM120	752°F (400°C)	CSA
100B TM121	752°F (400°C)
100B TM122	752°F (400°C)	CSA
100B TM94	752°F (400°C)	CSA
100B TM96	752°F (400°C)	CSA
100B TM97	752°F (400°C)
100B TM98	752°F (400°C)	CSA
100B TM99	752°F (400°C)
