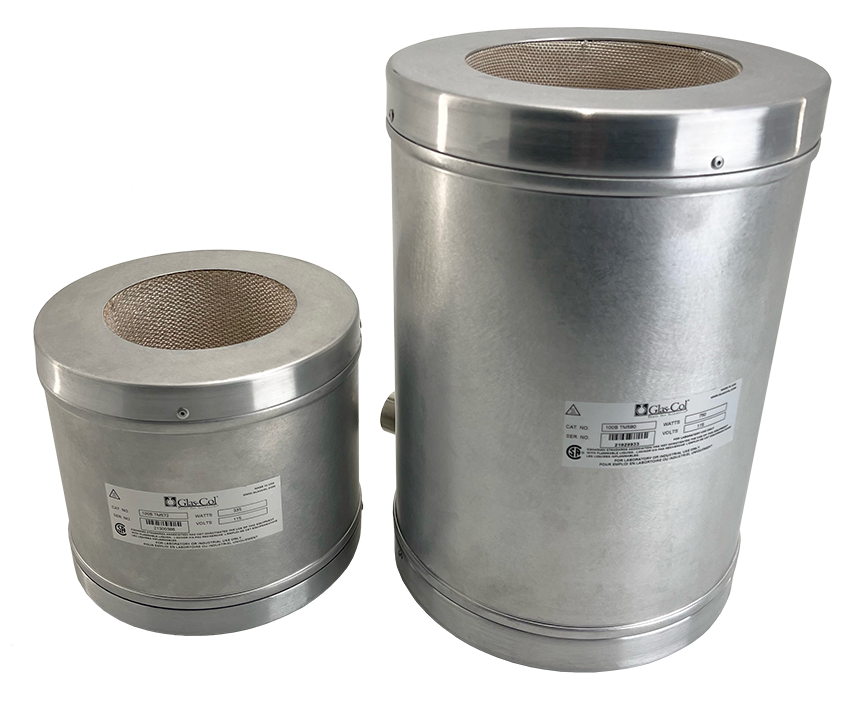

Resin Reaction Flask Heating Mantles

Name: Resin Reaction Flask Heating Mantles
Brand: Glas-Col LLC
SKU: 100B TM508-GROUP

Manufacturer: Glas-Col LLC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Quantity	Capacity	Electrical Information	Price	Qty
100B TM508 100B TM508	500 mL Resin Reaction Flask Mantle, 200W	Each	500 mL	115V, 200W	$482.00	+ -
100B TM512 100B TM512	1000 mL Resin Reaction Flask Mantle, 270W	Each	1000 mL	115V, 270W	$503.00	+ -
100B TM514 100B TM514	1500 mL Resin Reaction Flask Mantle, 330W	Each	1500 mL	115V, 330W	$523.00	+ -
100B TM516 100B TM516	2000 mL Resin Reaction Flask Mantle, 400W	Each	2000 mL	115V, 400W	$523.00	+ -
100B TM518 100B TM518	3000 mL Resin Reaction Flask Mantle, 600W	Each	3000 mL	115V, 600W	$580.00	+ -
100B TM560 100B TM560	500 mL Resin Reaction Flask Mantle, 250W	Each	500 mL	115V, 250W	$482.00	+ -
100B TM562 100B TM562	1000 mL Resin Reaction Flask Mantle, 300W	Each	1000 mL	115V, 300W	$503.00	+ -
100B TM564 100B TM564	1500 mL Resin Reaction Flask Mantle, 380W	Each	1500 mL	115V, 380W	$522.00	+ -
100B TM566 100B TM566	2000 mL Resin Reaction Flask Mantle, 450W	Each	2000 mL	115V, 450W	$533.00	+ -
100B TM568 100B TM568	3000 mL Resin Reaction Flask Mantle, 600W	Each	3000 mL	115V, 600W	$576.00	+ -
100B TM570 100B TM570	500 mL Resin Reaction Flask Mantle, 270W	Each	500 mL	115V, 270W	$470.00	+ -
100B TM572 100B TM572	1000 mL Resin Reaction Flask Mantle, 335W	Each	1000 mL	115V, 335W	$489.00	+ -
100B TM576 100B TM576	2000 mL Resin Reaction Flask Mantle, 470W	Each	2000 mL	115V, 470W	$504.00	+ -
100B TM578 100B TM578	3000 mL Resin Reaction Flask Mantle, 550W	Each	3000 mL	115V, 550W	$565.00	+ -
100B TM580 100B TM580	4000 mL Resin Reaction Flask Mantle, 750W	Each	4000 mL	115V, 750W	$616.00	+ -
Total $0.00

Use the Quantity box to select product first.

The Resin Reaction Flask Mantle is engineered to deliver safe, uniform heating for clear resinous materials and organic liquids. By eliminating hot spots and providing maximum surface coverage, this mantle ensures superior temperature uniformity, an essential advantage over traditional Bunsen burners and hot plates. Designed with both performance and safety in mind, it is the trusted solution for laboratories conducting resin reactions and other demanding applications.

Description

Overview

In Stock!

Lead Times May Vary.

The Resin Reaction Flask Mantle's rigid housing offers exceptional strength and support for your glassware, while the soft fabric interior gently cradles vessels to reduce the risk of thermal shock and breakage. Capable of withstanding internal operating temperatures up to 450°C, the Resin Reaction mantle is built for reliability in high-temperature applications. Smaller units are designed with feet for enhanced stability and cooler exterior temperatures, and all 115-volt models are CSA certified for compliance and safety.

Features:

Rigid housing provides strength and durability while supporting vessel weight
Fabric interior gently nests glassware to reduce risk of thermal shock
Withstands internal operating temperatures up to 450°C
Stability feet on smaller sizes help balance and keep exterior cooler
All 115-volt units are CSA certified for safety and compliance
Separable 4-foot, 3-wire cord included on TM508 thru TM581 models
One circuit heat input for reliable performance

Applications:

Safest and most reliable method for heating resin reaction mixtures
Ideal for organic liquids requiring uniform, controlled heating

Caution: Chemical spillage, overheating, overloading, and general misuse will greatly reduce service life!

Note: Heating mantles and tapes must be operated through a power control.

Specifications

SKU	Height	Depth	Capacity	Diameter	Outside Diameter
100B TM508	5 in	3 in	500 mL	4.5 in	7.5 in
100B TM512	7 in	4.5 in	1000 mL	4.5 in	7.5 in
100B TM514	9 in	6.63 in	1500 mL	4.5 in	7.5 in
100B TM516	9 in	7.5 in	2000 mL	4.5 in	7.5 in
100B TM518	13 in	11 in	3000 mL	4.5 in	7.5 in
100B TM560	5 in	2.5 in	500 mL	4.63 in	7.5 in
100B TM562	7.5 in	5.63 in	1000 mL	4.63 in	7.5 in
100B TM564	9 in	6.63 in	1500 mL	4.63 in	7.5 in
100B TM566	11 in	8.88 in	2000 mL	4.63 in	7.5 in
100B TM568	12 in	10 in	3000 mL	4.63 in	7.5 in
100B TM570	6.5 in	4.5 in	500 mL	3.75 in	7.5 in
100B TM572	7 in	5.25 in	1000 mL	4.25 in	7.5 in
100B TM576	8 in	6 in	2000 mL	5.50 in	9.0 in
100B TM578	11 in	9 in	3000 mL	5.50 in	9.0 in
100B TM580	13 in	11 in	4000 mL	5.50 in	9.0 in
