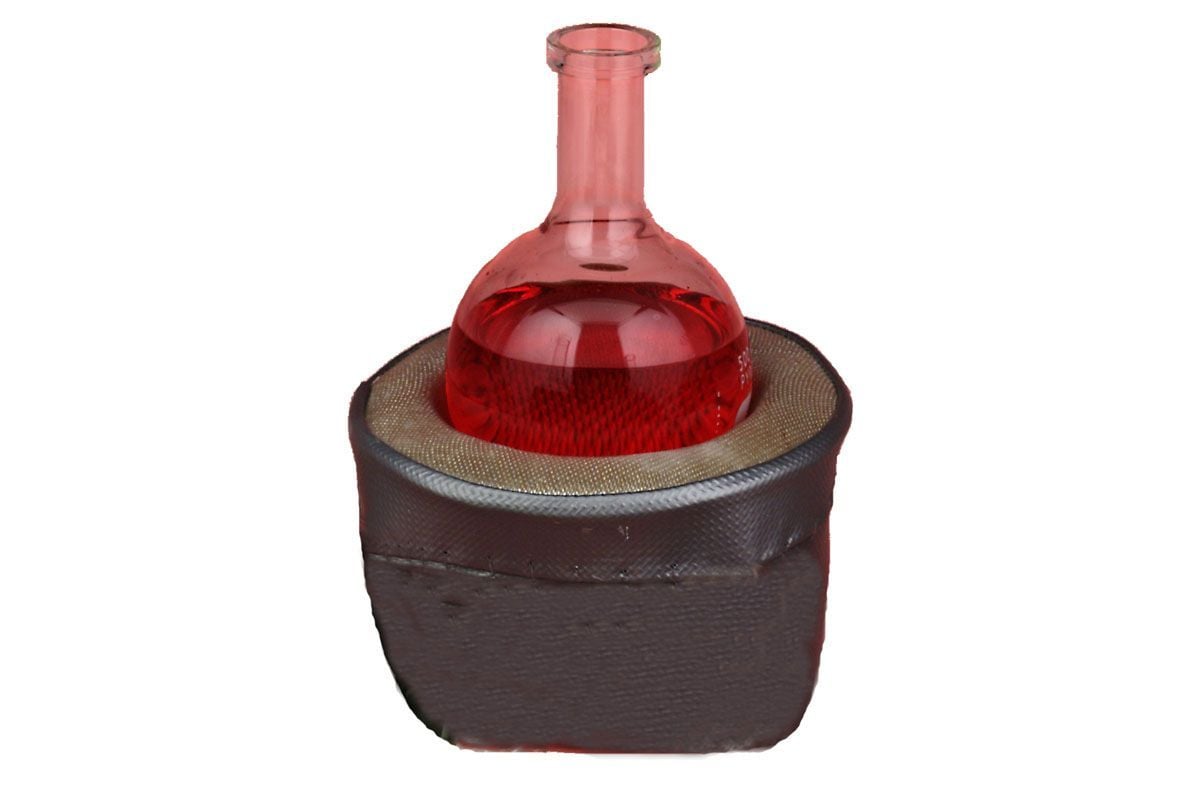

HM Table Top Heating Mantles
Manufacturer: BriskHeat
Description
BriskHeat Table Top Heating Mantles offer uniform heat distribution for round-bottom flasks. This self-standing heating mantle can be placed directly on the counter top and allows for easy viewing of flask contents. A convenient self-supporting low-watt heating mantle that is a safe alternative to other heating methods like a Bunsen Burner.
Temperature Controller is required for safe operation of this product.
Features:
- Temperatures up to 900°F (482°C)
- Stackable for easy storage
- Self-supporting design can be placed directly on countertop
- Low-watt density
- Safe alternative to other heating methods like a Bunsen Burner
- Easy viewing of flask contents
- Multi-stranded resistance wire for increased durability. Knit and braided for uniform heat coverage
Please note: Actual product color may vary from the images shown. Each heating mantle undergoes a finishing step which includes supplying power, allowing it to briefly heat up. This final step helps reduce the amount of outgassing (smoke caused from the fiberglass particles being heated) produced on the first few times the heating mantle is heated. As a result, the heating mantle may be discolored when it arrives to our customers.
| SKU | Max Temperature |
|---|---|
| HM0050VF1 | 900°F (482°C) |
| HM0100VF1 | 900°F (482°C) |
| HM0250VF1 | 900°F (482°C) |
| HM0500VF1 | 900°F (482°C) |
| HM1000VF1 | 900°F (482°C) |
| HM2000VF1 | 900°F (482°C) |
| HM3000VF1 | 900°F (482°C) |
| HM5000VF1 | 900°F (482°C) |
| HM0050VF2 | 900°F (482°C) |
| HM0100VF2 | 900°F (482°C) |
| HM0250VF2 | 900°F (482°C) |
| HM0500VF2 | 900°F (482°C) |
| HM1000VF2 | 900°F (482°C) |
| HM2000VF2 | 900°F (482°C) |
| HM3000VF2 | 900°F (482°C) |
| HM5000VF2 | 900°F (482°C) |
| SKU | Certification | Plug Type | Lead Length |
|---|---|---|---|
| HM0050VF1 | REACH, RoHS, CSA, IP20 | NEMA 1-15P | 6 ft (1.8 m) |
| HM0100VF1 | REACH, RoHS, CSA, IP20 | NEMA 1-15P | 6 ft (1.8 m) |
| HM0250VF1 | REACH, RoHS, CSA, IP20 | NEMA 1-15P | 6 ft (1.8 m) |
| HM0500VF1 | REACH, RoHS, CSA, IP20 | NEMA 1-15P | 6 ft (1.8 m) |
| HM1000VF1 | REACH, RoHS, CSA, IP20 | NEMA 1-15P | 6 ft (1.8 m) |
| HM2000VF1 | REACH, RoHS, CSA, IP20 | NEMA 1-15P | 6 ft (1.8 m) |
| HM3000VF1 | REACH, RoHS, CSA, IP20 | NEMA 1-15P | 6 ft (1.8 m) |
| HM5000VF1 | REACH, RoHS, CSA, IP20 | NEMA 1-15P | 6 ft (1.8 m) |
| HM0050VF2 | REACH, RoHS, CSA, IP20 | NEMA 6-15 | 6 ft (1.8 m) |
| HM0100VF2 | REACH, RoHS, CSA, IP20 | NEMA 6-15 | 6 ft (1.8 m) |
| HM0250VF2 | REACH, RoHS, CSA, IP20 | NEMA 6-15 | 6 ft (1.8 m) |
| HM0500VF2 | REACH, RoHS, CSA, IP20 | NEMA 6-15 | 6 ft (1.8 m) |
| HM1000VF2 | REACH, RoHS, CSA, IP20 | NEMA 6-15 | 6 ft (1.8 m) |
| HM2000VF2 | REACH, RoHS, CSA, IP20 | NEMA 6-15 | 6 ft (1.8 m) |
| HM3000VF2 | REACH, RoHS, CSA, IP20 | NEMA 6-15 | 6 ft (1.8 m) |
| HM5000VF2 | REACH, RoHS, CSA, IP20 | NEMA 6-15 | 6 ft (1.8 m) |
Starting at $186.00
Select a product below and add it to your cart to request a quote.
