Isola EDGE Filtered Workstations

Name: Isola EDGE Filtered Workstations
Brand: Mystaire Inc
SKU: MY-ISL36P2-GROUP

Manufacturer: Mystaire Inc

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Voltage	Width	Price	Qty
MY-ISL36P2 MY-ISL36P2	Isola® EDGE Filtered Workstation	110V	36 in	$8,000.00	+ -
MY-ISL48P2 MY-ISL48P2	Isola® EDGE Filtered Workstation	110V	48 in	$8,800.00	+ -
MY-ISL72P2 MY-ISL72P2	Isola® EDGE Filtered Workstation	110V	72 in	$9,900.00	+ -
Total $0.00

Use the Quantity box to select product first.

Accessories

Grouped product items
Cat Code	Description	Country of Manufacture	Quantity	Includes	For Use With	Price	Qty

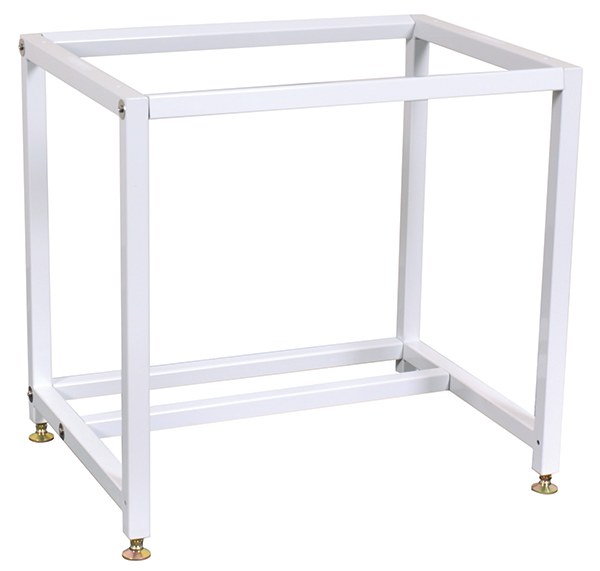

MY-STD36 MY-STD36	Metal Stand, 36 in	United States	Each	36 inch white, powder coated stand	Isola 36 Workstation	$1,300.00	+ -
MY-STD48 MY-STD48	Metal Stand, 48 in	United States	Each	48 inch white, powder coated stand	Isola 48 Workstation	$1,500.00	+ -
MY-STD72 MY-STD72	Metal Stand, 72 in	United States	Each	72 inch white, powder coated stand	Isola 72 Workstation	$1,800.00	+ -
MY-FDR76-4 MY-FDR76-4	16 oz. Solucide Disinfection Spray, Lemon Scented	United States	4/Case			$99.00	+ -
MY-PBC36 MY-PBC36	Base Cabinet, 36 in	United States	Each	36 inch base cabinet	Isola 36	$2,100.00	+ -
MY-PBC48 MY-PBC48	Base Cabinet, 48 in	United States	Each	48 inch base cabinet	Isola 48	$2,500.00	+ -
MY-PBC72 MY-PBC72	Base Cabinet, 72 in	United States	Each	72 inch base cabinet	Isola 72	$3,100.00	+ -
Total $0.00

Use the Quantity box to select product first.

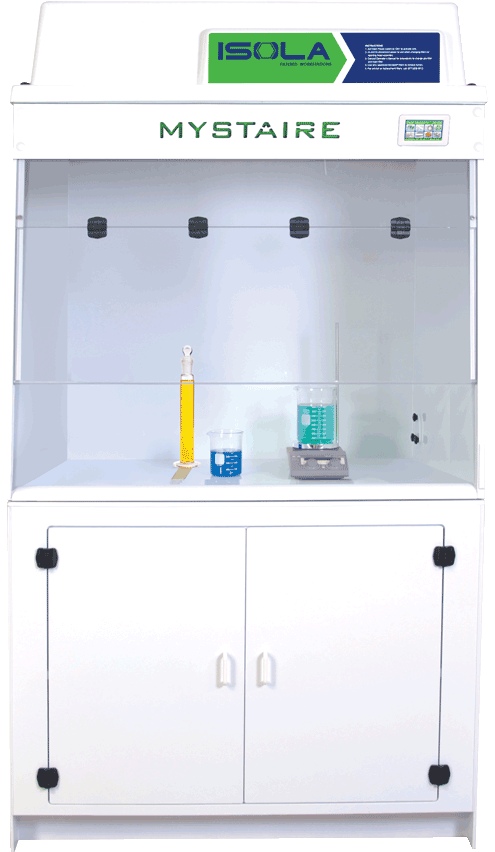

The Mystaire® Isola EDGE Filtered, Ductless Workstation provides superior filtration while offering the same convenience as traditional laboratory hoods. The angled and rolled entry design promotes a smooth, turbulent-free work area, which reduces eddy currents that affect containment. Compared to a traditional (ducted) workstation, the ductless equipment reduces power and maintenance costs and eliminates the spread of harmful contaminants into the environment. The Isola wokstations have an installed controller and notify the operator with lights and alarms when it is time to change the filter.

Description

Overview

In Stock!

4 Week Lead Time

The EDGE workstation has a dual-wall thermally-fused solid polypropylene chamber to allow the insulation of common laboratory fixtures and electrical outlets, if needed. The main chamber offer superior chemical resistance while the contoured entry foil provides both spill containment and smooth airflow dynamics. The workstations are available in a variety of widths with multiple accessories to keep your equipment running smoothly for any application need.

The workstation is shipped fully assembled!

Features:

EverSafe™ III touch screen controller constantly monitors fume hood performance with audible and visible alarms
Vividly displayed status of face velocity in linear feet per minute or meters per second
18-Icon display for simple touch control of hood features and functions
LED lighting for true illumination of the entire work area
Solid-state gas detection with three sensitivity set points, Conforms to UL, CSA, and CE electrical requirements, Integral polypropylene spill basin with rolled foil entry
Built-in filter and application validation
Optional installations of gas, water, electrical fixtures and/or polypropylene sink

Process Steps:

Laboratory room air enters into Isola
The contaminants are mixed with laboratory air
Contaminated air is filtered through either gas phase carbon filtration or mechanical filtration
Air is constantly monitored for filter breakthrough as well as temperature and humidity
Air passes through the safety filtration zone before returning to the laboratory

Specifications

SKU	Type	Includes	Material	Lighting	Certification	Country of Manufacture
MY-ISL72P2	EDGE	EverSafe III Touch Microprocessor controller	Polypropylene	LED lighting	UL, CSA, and CE	United States
MY-ISL36P2	EDGE	EverSafe III Touch Microprocessor controller	Polypropylene	LED lighting	UL, CSA, and CE	United States
MY-ISL48P2	EDGE	EverSafe III Touch Microprocessor controller	Polypropylene	LED lighting	UL, CSA, and CE	United States
