PYREX® Soxhlet Extraction Complete Apparatus, Standard Taper Joints, Allihn Condenser

Name: PYREX® Soxhlet Extraction Complete Apparatus, Standard Taper Joints, Allihn Condenser
Brand: Corning Life Sciences
SKU: 3840-L-GROUP

Manufacturer: Corning Life Sciences

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Quantity	Capacity	Price	Qty
3840-L 3840-L	500 mL PYREX® Extractor System, Soxhlet Extractor and Allihn Condenser, 5 Bulbs	Each	500 mL	$623.33	+ -
3840-M 3840-M	250 mL PYREX® Extractor System, Soxhlet Extractor and Allihn Condenser, 4 Bulbs	Each	250 mL	$554.27	+ -
3840-S 3840-S	125 mL PYREX® Extractor System, Soxhlet Extractor and Allihn Condenser, 4 Bulbs	Each	125 mL	$511.47	+ -
3840-XL 3840-XL	1 L PYREX® Extractor System, Soxhlet Extractor and Allihn Condenser	Each	1 L	$1,125.85	+ -
Total $0.00

Use the Quantity box to select product first.

Accessories

Grouped product items
Cat Code	Description	Quantity	Capacity	Height	Joint Size	Length	Material	Tubulation Outside Diameter	Type	Price	Qty

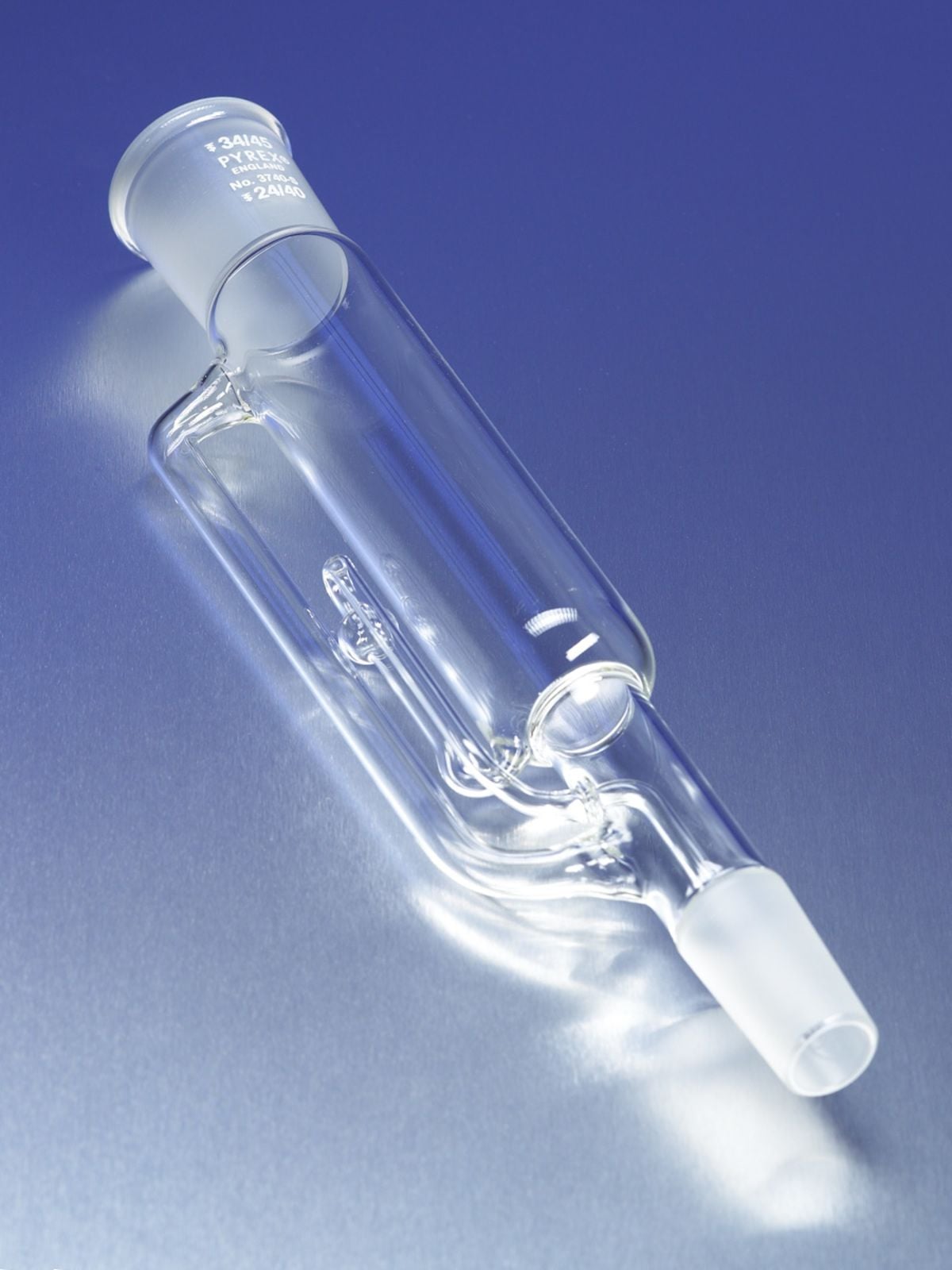

3740-L 3740-L	200 mL PYREX® Soxhlet Extractor, Standard Taper Joints, Body Only	2/Case	200?mL	350?mm (approx.)	Inner: 24/40 (Bottom) Outer: 55/50 (Top)	Siphon to Plate: 113?mm (approx.)	Borosilicate Glass			$699.56	+ -
3740-M 3740-M	85 mL PYREX® Soxhlet Extractor, Standard Taper Joints, Body Only	2/Case	85 mL	303?mm (approx.)	Inner: 24/40 (Bottom) Outer: 45/50 (Top)	Siphon to Plate: 8?mm (approx.)	Borosilicate Glass			$620.91	+ -
3740-S 3740-S	50 mL PYREX® Soxhlet Extractor, Standard Taper Joints, Body Only	2/Case	50 mL	295?mm (approx.)	Inner: 24/40 (Bottom) Outer: 34/45 (Top)	Siphon to Plate: 62?mm (approx.)	Borosilicate Glass			$520.68	+ -
3740-XL 3740-XL	500 mL PYREX® Soxhlet Extractor, Standard Taper Joints, Body Only	2/Case	500 mL	430?mm (approx.)	Inner: 29/42 (Bottom) Outer: 71/60 (Top)	Siphon to Plate: 13?mm (approx.)	Borosilicate Glass			$1,229.29	+ -
3840-1LFO 3840-1LFO	1 L PYREX® Extractor System Replacement Flask	Each	1 L		Outer: 29/42		Borosilicate Glass	10 mm (approx.)		$76.47	+ -
3840-LCO 3840-LCO	5 Bulb PYREX® Allihn Condenser Replacement, 500 mL Extractor System	Each		388 mm (approx.)	Inner: 55/50		Borosilicate Glass	10?mm (approx.)	Allihn	$281.80	+ -
3840-MCO 3840-MCO	4 Bulb PYREX® Allihn Condenser Replacement, 250 mL Extractor System	Each		331 mm (approx.)	Inner: 45/50		Borosilicate Glass	10?mm (approx.)	Allihn	$241.25	+ -
3840-SCO 3840-SCO	4 Bulb PYREX® Allihn Condenser Replacement, 125 mL Extractor System	Each		282 mm (approx.)	Inner: 34/45		Borosilicate Glass	10?mm (approx.)	Allihn	$204.37	+ -
3840-XLCO 3840-XLCO	PYREX® Allihn Condenser Replacement, 1L Extractor System	Each			Inner: 71/60 Bottom: 19/22		Borosilicate Glass	10?mm (approx.)	Allihn	$438.93	+ -
Total $0.00

Use the Quantity box to select product first.

The PYREX® Soxhlet Extraction Complete Apparatus, Standard Taper Joints, Allihn Condenser, consists of a Soxhlet extractor, an Allihn condenser, and a flask, all of which come equipped with standard taper joints. The tubulation O.D. on the condenser is 10 mm.

Description

Overview

In Stock!

Lead Times May Vary

Features:

Replacement flask with a 29/42 outer Standard Taper joint for the #3840-XL 1L extractor system
Tubulation O.D. on the condenser is 10 mm

Specifications

SKU	Material	Type	Joint Size	Height	Tubulation Outside Diameter
3840-S	Borosilicate Glass	Allihn, Boiling	Bottom: 24/40 Top: 34/45	655 mm (approx.)	8 mm (approx.)
3840-XL	Borosilicate Glass	Air Reflux, Boiling	Bottom: 29/42 Top: 71/60	880 mm (approx.)	9 mm (approx.)
3840-L	Borosilicate Glass	Allihn, Boiling	Bottom: 24/40 Top: 55/50	803 mm (approx.)	6 mm (approx.)
3840-M	Borosilicate Glass	Allihn, Boiling	Bottom: 24/40 Top: 45/50	711 mm (approx.)	7 mm (approx.)

Additional Info

SKU	Capacity	Height	Joint Size	Length	Tubulation Outside Diameter
3840-S	125 mL	655 mm (approx.)	Bottom: 24/40 Top: 34/45	Siphon to Plate: 62 mm (approx.) Extractor Body: 192 mm (approx.)	8 mm (approx.)
3840-XL	1 L	880 mm (approx.)	Bottom: 29/42 Top: 71/60	Siphon to Plate: 13 mm (approx.) Extractor Body: 319 mm (approx.)	9 mm (approx.)
3840-L	500 mL	803 mm (approx.)	Bottom: 24/40 Top: 55/50	Extractor Body: 35 mm (approx.)	6 mm (approx.)
3840-M	250 mL	711 mm (approx.)	Bottom: 24/40 Top: 45/50	Siphon to Plate: 8 mm (approx.) Extractor Body: 25 mm (approx.)	7 mm (approx.)

Starting at $511.47

Select a product below and add it to your cart to request a quote.

PYREX® Soxhlet Extraction Complete Apparatus, Standard Taper Joints, Allihn Condenser

Description

PYREX® Soxhlet Extraction Complete Apparatus, Standard Taper Joints, Allihn Condenser

Request A Quote
