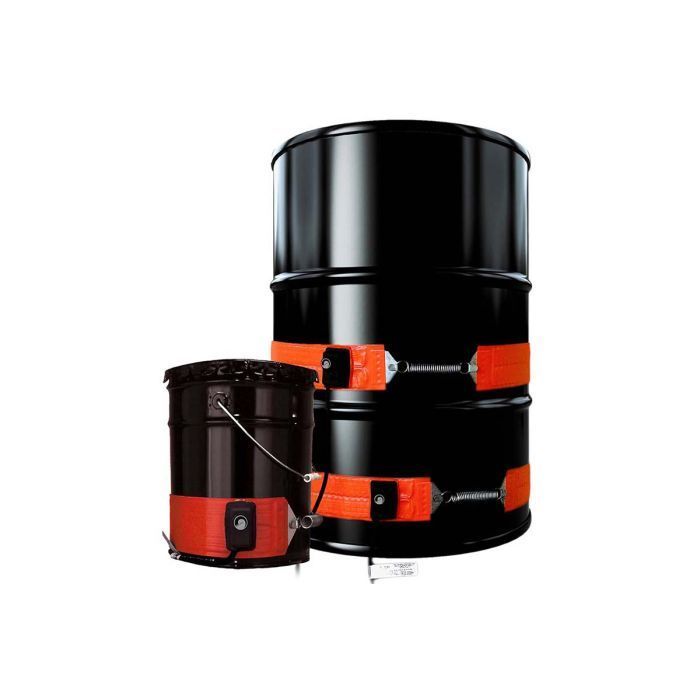

DHLS Heavy Duty Mid-Temperature Silicone Rubber Drum and Pail Heaters
Manufacturer: BriskHeat
BriskHeat's DHLS Heavy Duty Mid-Temperature Silicone Rubber Drum and Pail Heaters are designed with two extra-thick layers of fiberglass reinforced silicone rubber for excellent strength and durability. They are ideal for fast heat-up and mid-temperature maintenance. For use on metal drums only.
Description
In Stock!
Lead Times May Vary
Designed with two extra-thick layers of fiberglass reinforced silicone rubber for excellent strength and durability, the DHLS Drum and Pail heaters are ideal for fast heat-up and mid-temperature maintenance. For use on metal drums only.
Features:
- Moisture and chemical resistant
- Easy to use - simple plug-and-play design
- Provides long service life and can be used in a wide variety of environments
- Adjustable thermostat - temperatures up to 160°F or 425°F (71°C or 218°C)
- Exceptional durability and flexibility for a wide range of metal drum/pail heating applications
- Extra-wide 4 in (102 mm) surface coverage
- Grounded for your safety - meets NEC 427.23
- 6 ft (1.8 m) long power cord with choice of plug or leads
- Improves flow and reduces viscosity levels of drum and pail contents
- Heater Width: 4 in (102 mm)
- Voltage Options: 120VAC
- Exposure Temperature: -60°F to 450°F (-51°C to 232°C)
- Dielectric Strength: Over 2000 volts
- Attachment Type: Expandable spring closure ? expands up to 3 in (76 mm)
- Silicone Rubber Density: Heavy duty: 46.0 oz/yd⊃2 (1560 g/m⊃2) | Extra heavy duty: 75.0 oz/yd⊃2 (2543 g/m⊃2)
- Power Cord: 6 ft (1.8 m) long with choice of plug
- Standard 120 VAC: 3-prong grounded plug (NEMA 5-15P) | CSA/cURus approved 120 & 240 VAC: bare wire leads
Ideal For:
- Viscosity Control
- Freeze Protection
- Temperature Maintenance
- Melting of Solids
| SKU | Max Temperature | Length | Width | Density | Diameter |
|---|---|---|---|---|---|
| DHLS10 | Up to 160°F (71°C) | 35.0 in (889 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 11.1 to 12.1 in (282 to 307 mm) |
| DHLS11 | Up to 160°F (71°C) | 44.0 in (1118 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 14.0 to 15.0 in (355 to 381 mm) |
| DHLS13 | Up to 160°F (71°C) | 58.5 in (1486 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 18.6 to 19.6 in (472 to 498 mm) |
| DHLS15 | Up to 160°F (71°C) | 70.0 in (1778 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 22.3 to 23.2 in (566 to 589 mm) |
| DHLS20 | Up to 160°F (71°C) | 35.0 in (889 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 11.1 to 12.1 in (282 to 307 mm) |
| DHLS21 | Up to 160°F (71°C) | 44.0 in (1118 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 14.0 to 15.0 in (355 to 381 mm) |
| DHLS23 | Up to 160°F (71°C) | 58.5 in (1486 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 18.6 to 19.6 in (472 to 498 mm) |
| DHLS25 | Up to 160°F (71°C) | 70.0 in (1778 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 22.3 to 23.2 in (566 to 589 mm) |
| DHLS10A | Up to 160°F (71°C) | 35.0 in (889 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 11.1 to 12.1 in (282 to 307 mm) |
| DHLS11A | Up to 160°F (71°C) | 44.0 in (1118 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 14.0 to 15.0 in (355 to 381 mm) |
| DHLS13A | Up to 160°F (71°C) | 58.5 in (1486 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 18.6 to 19.6 in (472 to 498 mm) |
| DHLS15A | Up to 160°F (71°C) | 70.0 in (1778 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 22.3 to 23.2 in (566 to 589 mm) |
| DHLS20A | Up to 160°F (71°C) | 35.0 in (889 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 11.1 to 12.1 in (282 to 307 mm) |
| DHLS21A | Up to 160°F (71°C) | 44.0 in (1118 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 14.0 to 15.0 in (355 to 381 mm) |
| DHLS23A | Up to 160°F (71°C) | 58.5 in (1486 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 18.6 to 19.6 in (472 to 498 mm) |
| DHLS25A | Up to 160°F (71°C) | 70.0 in (1778 mm) | 4 in (102 mm) | 5.0 watts/in² (0.78 watts/cm²) | 22.3 to 23.2 in (566 to 589 mm) |
| SKU | Certification | Plug Type | Lead Length | Wattage |
|---|---|---|---|---|
| DHLS10 | REACH, RoHS, IP54 | NEMA 5-15P | 6 ft (1.8 m) | 550W |
| DHLS11 | REACH, RoHS, IP54 | NEMA 5-15P | 6 ft (1.8 m) | 700W |
| DHLS13 | REACH, RoHS, IP54 | NEMA 5-15P | 6 ft (1.8 m) | 1000W |
| DHLS15 | REACH, RoHS, IP54 | NEMA 5-15P | 6 ft (1.8 m) | 1200W |
| DHLS20 | REACH, RoHS, IP54, CE | Bare Wire Leads | 6 ft (1.8 m) | 550W |
| DHLS21 | REACH, RoHS, IP54, CE | Bare Wire Leads | 6 ft (1.8 m) | 700W |
| DHLS23 | REACH, RoHS, IP54, CE | Bare Wire Leads | 6 ft (1.8 m) | 1000W |
| DHLS25 | REACH, RoHS, IP54, CE | Bare Wire Leads | 6 ft (1.8 m) | 1200W |
| DHLS10A | REACH, RoHS, IP54, CSA, cURus | NEMA 5-15P | 6 ft (1.8 m) | 550W |
| DHLS11A | REACH, RoHS, IP54, CSA, cURus | NEMA 5-15P | 6 ft (1.8 m) | 700W |
| DHLS13A | REACH, RoHS, IP54, CSA, cURus | NEMA 5-15P | 6 ft (1.8 m) | 1000W |
| DHLS15A | REACH, RoHS, IP54, CSA, cURus | NEMA 5-15P | 6 ft (1.8 m) | 1200W |
| DHLS20A | REACH, RoHS, IP54, CSA, cURus, CE | Bare Wire Leads | 6 ft (1.8 m) | 550W |
| DHLS21A | REACH, RoHS, IP54, CSA, cURus, CE | Bare Wire Leads | 6 ft (1.8 m) | 700W |
| DHLS23A | REACH, RoHS, IP54, CSA, cURus, CE | Bare Wire Leads | 6 ft (1.8 m) | 1000W |
| DHLS25A | REACH, RoHS, IP54, CSA, cURus, CE | Bare Wire Leads | 6 ft (1.8 m) | 1200W |
