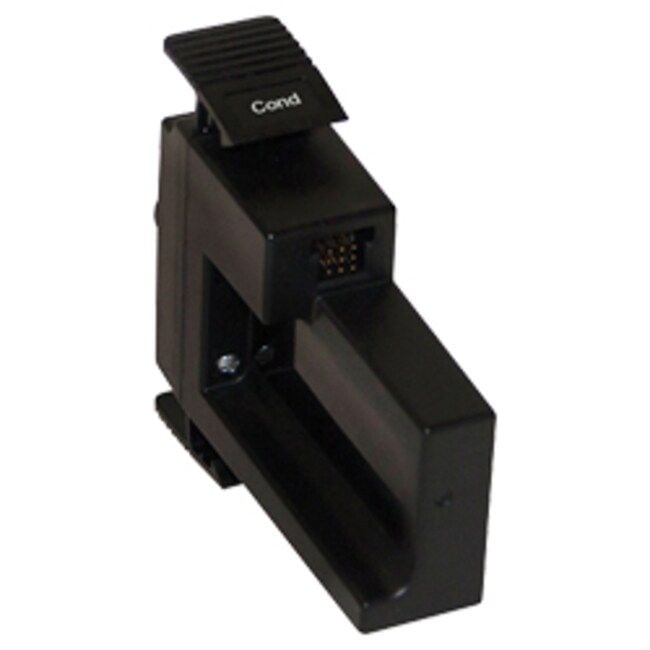

Orion™ Versa Star Conductivity Measurement Module
Manufacturer: Thermo Orion
Description
Add conductivity, total dissolved solids (TDS), salinity, resistivity and temperature measurement capabilities to your Thermo Scientific™ Orion™ Versa Star meter using the Thermo Scientific™ Orion™ Versa Star Conductivity Measurement Module. Each Orion™ Versa Star meter has four channels that can be customized with interchangeable measurement modules. The Versa Star conductivity module offers reliable, fast results with auto-ranging conductivity values and linear, non-linear pure water or EP temperature compensation with 5, 10, 15, 20 or 25 °C reference temperatures.
Features:
- • Plain language screen prompts and soft keys that update for easy selection
- • Multi-language interface that supports English, Spanish, French, Italian, German and Chinese
- • Non-volatile memory that holds up to 2,000 data points with time and date stamp
- • Two USB and RS232 ports for easy data transfer and updating meter software
- • Data analysis software for transferring stored results or displaying readings in real-time
- • Direct control for two Orion Star™ stirrer probes (096019, sold separately) for mixing samples without a stir plate
- • Electrode arm and newly-designed probe holder to maintain and place probes into samples
- • Universal power adapter that works with almost every AC power source
- • IP54-rated housing that handles splashes
- • Three year meter replacement warranty
| Specifications | Conductivity Module (VSTAR-CND) | |
| Conductivity | Range | 0.001 μS to 3000 mS |
|---|---|---|
| Resolution | 0.001 μS minimum; 4 significant figures minimum |
|
| Relative Accuracy | 0.5 % reading ±1 digit | |
| Reference Temperature | 5, 10, 15, 20, 25 °C | |
| Temperature Compensation | Linear (0 to 10.0 %/ºC), nLn, nLFu, USP/EP |
|
| Compatible Cell Constants | 0.001 to 199.9 | |
| Calibration Points | Up to 6 points | |
| Calibration Editing | Yes | |
| Resistivity | Range | 2 ohm to 100 meg-ohm |
| Resolution | 2 ohms-cm | |
| Relative Accuracy | 0.5 % reading ±1 digit | |
| Salinity | Type | Practical salinity or natural sea water |
| Range | 0.01 to 80.0 psu 0.01 to 42 ppt sea water |
|
| Resolution | 0.01 | |
| Relative Accuracy | ±0.1 | |
| TDS | Range | 0 to 200 ppt |
| Resolution | 4 significant digits | |
| Relative Accuracy | ±0.5 % reading ±1 digit | |
| TDS Factor Range | Linear 0.01 to 10.00 | |
| Temperature | Range | -5 to 105 °C, 23 to 221 ºF |
| Resolution | 0.1 | |
| Relative Accuracy | ±0.1 | |
| Offset Calibration | 1 point | |
| Inputs | 8-pin mini-DIN | |
|
Smart Notes: How do you account for temperature differences when measuring water conductivity? | Download |
