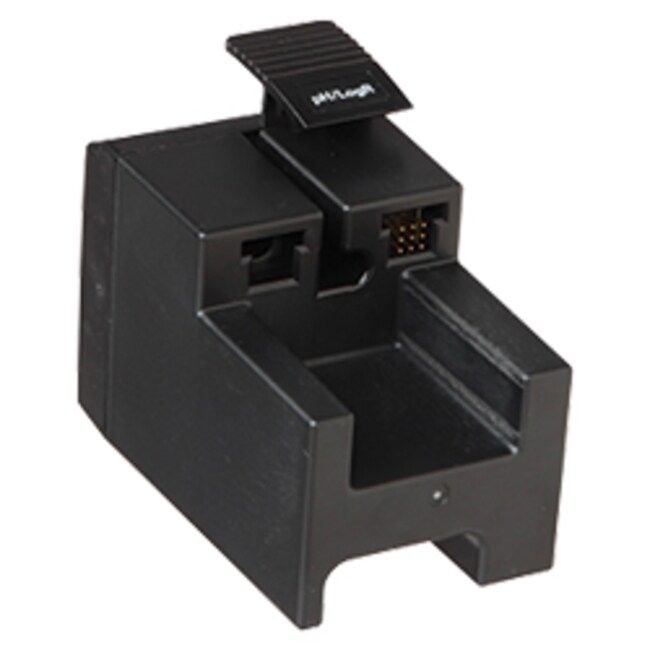

Orion™ Versa Star pH / LogR Measurement Module
Manufacturer: Thermo Orion
Description
Add pH, mV, ORP and LogR temperature measurement capabilities to your Thermo Scientific™ Orion™ Versa Star meter using the Thermo Scientific™ Orion™ Versa Star pH / LogR Measurement Module. Each Orion™ Versa Star meter has four channels that can be customized with interchangeable measurement modules. The Orion™ Versa Star pH/LogR module offers LogR temperature technology that uses the glass-bulb of most pH electrodes to measure both pH and temperature at the same location – ideal for small sample volumes and samples that are difficult to clean.
pH/Temperature module allows:
- • Up to five point pH calibration with automatic recognition for USA/NIST™ and DIN buffers
- • Fixing of calibration errors without a complete recalibration with calibration editing
Module featuring LogR technology: Includes all of the features of the pH module with added benefits:
- • The most advanced electrode diagnostics
- • No temperature sensor needed to get temperature compensated pH readings
| Specifications | Orion™ Versa Star pH | |
| pH | Range | -2.000 to 20.000 |
|---|---|---|
| Resolution | 0.1, 0.01, 0.001 | |
| Relative Accuracy | ±0.002 | |
| Calibration Points | Up to 6 | |
| Calibration Editing | Yes | |
| Adjustable ISO Point | Yes | |
| mV/Rel/mV/ORP | Range | ±2000.0 mV |
| Resolution | 0.1 | |
| Relative Accuracy | ±0.2 mV or ±0.05 % of reading whichever is greater | |
| EHORP Mode | Yes | |
| Range | 0 to 100 °C, 32 to 212 ºF | |
| LogR Temperature | Resolution | 0.1 |
| Relative Accuracy | ±0.5 | |
| Resistance Range | 0 to 6000 MΩ | |
| Resistance Resolution | 0.1 MΩ up to 1999.9 MΩ, 1 MΩ above 1999.9 MΩ |
|
| Offset Calibration | Up to 3 points | |
| Calibration Options | ATC probe, NIST reference | |
| Temperature Measurement without LogR In-Use |
Range | -5 to 105 ºC, 23 to 221 ºF |
| Resolution | 0.1 | |
| Relative Accuracy | ±0.1 | |
| Offset Calibration | 1 point | |
| Inputs | pH | BNC, reference pin |
| ATC | 8-pin mini-DIN | |
|
Smart Notes: How do you account for temperature differences when measuring water conductivity? | Download |
Starting at $1,320.00
