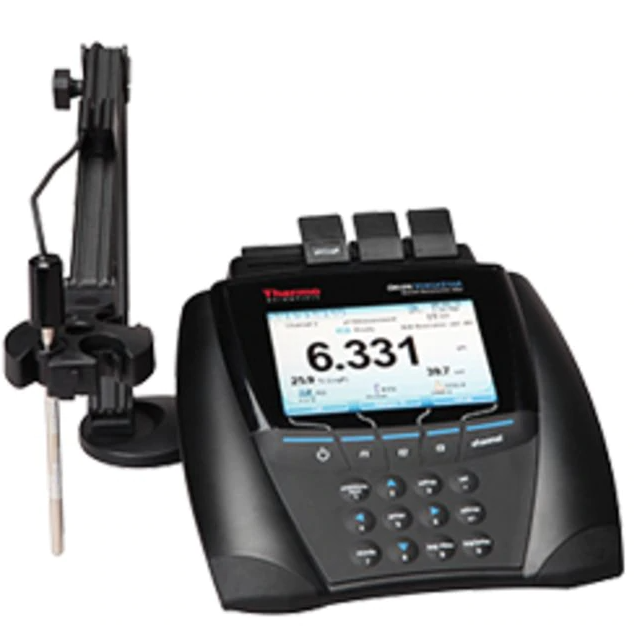

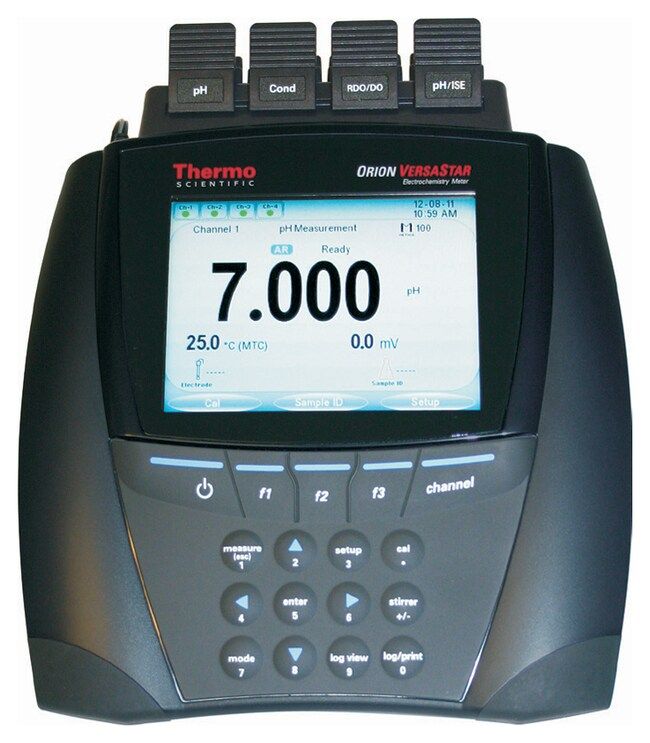

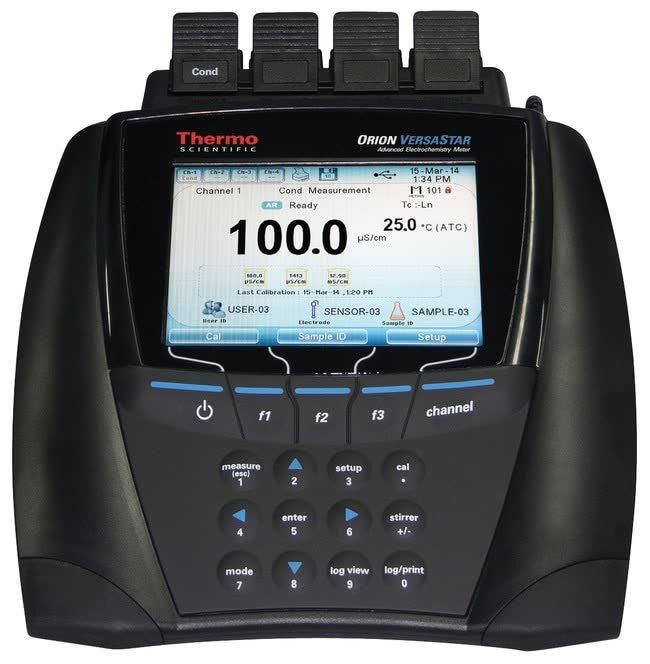

Orion™ Versa Star Benchtop Meter with Conductivity, TDS, Salinity, Resistivity and Temperature Module
Manufacturer: Thermo Orion
Starting at from $2,590.00 Sale $2,460.50
Select a product below and add it to your cart to request a quote.
Orion™ Versa Star Benchtop Meter with Conductivity, TDS, Salinity, Resistivity and Temperature Module
Description
All Meters include VSTAR-CND Conductivity Module, Electrode Stand, Universal Power Adapter, Literature CD, Printed Quick Start Guide, Computer Interface Cable and Meter Test Certificate.
Get high accuracy, premium performance and ultimate flexibility with the Thermo Scientific™ Orion™ Versa Star Benchtop Meter with Conductivity Module. Meet your most challenging applications for conductivity, total dissolved solids (TDS), salinity, resistivity and temperature. Easily view measurements on the stunning color display and customize the four meter channels with interchangeable modules. Obtain reliable, fast results with auto-ranging conductivity values and extensive temperature compensation options. Log up to 2000 data point sets with time / date and transfer to printer or computer.
Large, Color Graphic LCD Display:
- Informative display shows readings, connections, time, date, sample ID, user ID and calibration information
- Five modules to customize the four channels as you need it
- Plain language screen prompts and soft keys that update for easy selection
- Multilanguage interface that supports English, Spanish, French, Italian, German and Chinese
Features:
- Non-volatile memory holds up to 2000 data points with time and date stamp
- Two USB and RS232 ports for easy data transfer and updating meter software
- Data analysis software for transferring stored results or displaying readings in real time
- Direct control for two Orion Star stirrer probes (096019, sold separately) for mixing samples without a stir plate
- Electrode arm and newly designed probe holder make it easier to maintain and place probes into samples
- Universal power adapter that works with almost every AC power source
- IP54-rated housing handles splashes
VERSA STAR Conductivity Module, VSTAR-CND:
- Selectable conductivity reference temperatures of 5, 10, 15, 20 or 25 °C with linear, non-linear nLFn, non-linear nLFu and EP curve options
- Choice of practical salinity or natural sea water curves for salinity
Specifications | VSTAR20 |
AC Adapter | Universal 50-60 Hz, 100-240 VAC power adapter (Cat. No. STARA-PWR) |
---|---|
Accuracy Conductivity | 0.5% of reading ±1 digit > 3 μS; 0.5% of reading ±0.01 μS ≤ 3 μS |
Accuracy Resistivity | 0.5% of reading ±1 digit |
Accuracy Salinity | 0.5% of reading ±1 digit |
Accuracy TDS | 0.5% of reading ±1 digit |
Accuracy Temperature | ±0.1°C |
Alarm Output | Set point alarm, high/low limit alarm, calibration due alarm |
Backlight | Yes |
Calibration Modes | Conductivity with calibration editing option and temperature |
Calibration Points Conductivity | Up to 6 |
Cell Constant | 0.001 to 199.9 cm-1 |
Certifications Compliance | CE, TUV 3-1, FCC Class A |
Channels | 4 - customizable with modules |
Data Log Function Type | Automatic data logging with Auto-Read, Timed and Single Shot measure modes; manual data logging with Continuous measure mode |
Data Management Details | Transfer single, range or all data points to printer or computer |
Data Points | 2000 with date and time stamp |
Description | Orion Versa Star benchtop meter with conductivity/TDS/salinity/resistivity module and stand |
Dimensions LxWxH | 28 cm x 24 cm x 10 cm (11" x 9.5" x 3.9"), modules add ≤ 2 cm (0.8") L & H |
Display Type | Color graphic LCD with user-customizable options |
Includes | Versa Star meter, VSTAR-CND conductivity module, electrode stand, universal power adapter, literature, computer cable and calibration test certificate |
Inputs | 8 pin MiniDIN (conductivity sensor with built-in temperature), two stirrer inputs (stirrer probe) |
IP Rating | IP-54 |
Keypad | Numeric with menu-specific function keys and dual purpose scroll/shortcut keys |
Languages | English, Spanish, French, Italian, German, Chinese, Portuguese and Korean |
Measurement Modes | Conductivity, TDS, salinity or resistivity with temperature |
Memory | Non-volatile memory preserves data log, calibration log and meter settings |
Methods | 10 per channel with password protection |
Model | Orion Versa Star 20 Conductivity/TDS/Salinity/Resistivity/Temperature Benchtop Meter |
Outputs | USB (2), RS232 |
Power Supply | Universal AC adapter (included) |
Range Conductivity | 0.001 µS/cm to 3000 mS/cm |
Range Resistivity | 2 ohm to 100.0 meg-ohm |
Range Salinity | 0.06 to 80.00 psu, 0.05 to 42.00 ppt |
Range TDS | 0.001 to 200.0 ppm |
Range Temperature | -5.0 to 105.0 °C, 22.0 to 221.0 °F |
Relative Humidity Range | 5 to 85 %, non-condensing |
Resolution Conductivity | 0.001 μS minimum, auto ranging up to 4 significant digits |
Resolution Resistivity | 1 ohm or 0.1 meg-ohm, auto ranging |
Resolution Salinity | 0.01 psu or 0.01 ppt minimum, auto ranging |
Resolution TDS | 0.001 ppm minimum, auto ranging up to 4 significant digits |
Resolution Temperature | 0.1°C, 0.1°F |
Salinity Measurement Modes | Practical salinity (psu) or natural sea water (ppt) |
Sensor Types | 2-cell or 4-cell conductivity sensors with built-in temperature |
Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
TDS Factor Range | Linear (0.02 to 9.99) |
Temperature Ambient Operating | 5 to 45°C, 41° to 113°F |
Temperature Compensation | Linear, nLFn (non-linear ultra pure water), nLFu (non-linear ultra pure degassed water), EP (off with warning) or off |
Temperature Probe Calibration | 1 point temperature offset calibration |
Temperature Reference Options | 5, 10, 15, 20, 25°C |
Temperature Selection | Manual or automatic with ATC temperature probe |
Warranty | 3 year meter and module warranty |
Weight | 1.2 kg (modules add 0.2 kg each), 2.5 lbs (modules add 0.5 lbs each) |
SKU | Temperature Range | Display | Temperature Accuracy |
---|---|---|---|
VSTAR20 | -5 to 105°C | Color Graphic LCD | ±0.1°C |
VSTAR22 | -5 to 105°C | Color Graphic LCD | ±0.1°C |
VSTAR23 | -5 to 105°C | Color Graphic LCD | ±0.1°C |
SKU | Warranty | Height | Width | Length |
---|---|---|---|---|
VSTAR20 | 3 Year | 3.9 in | 9.5 in | 11 in |
VSTAR22 | 3 Year | 3.9 in | 9.5 in | 11 in |
VSTAR23 | 3 Year | 3.9 in | 9.5 in | 11 in |
