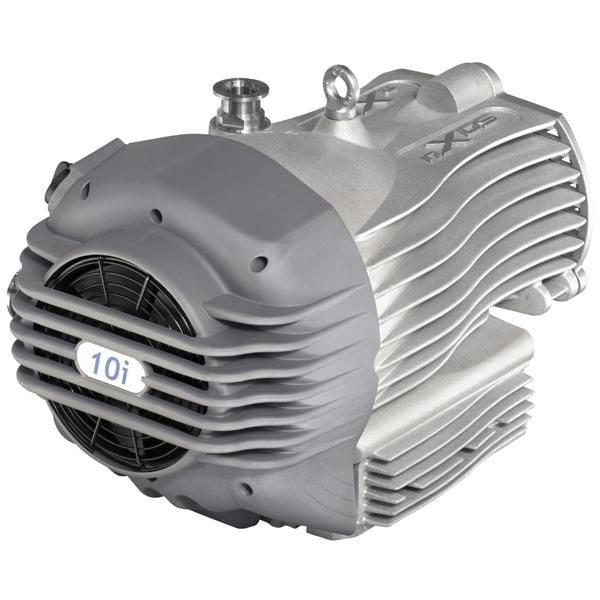

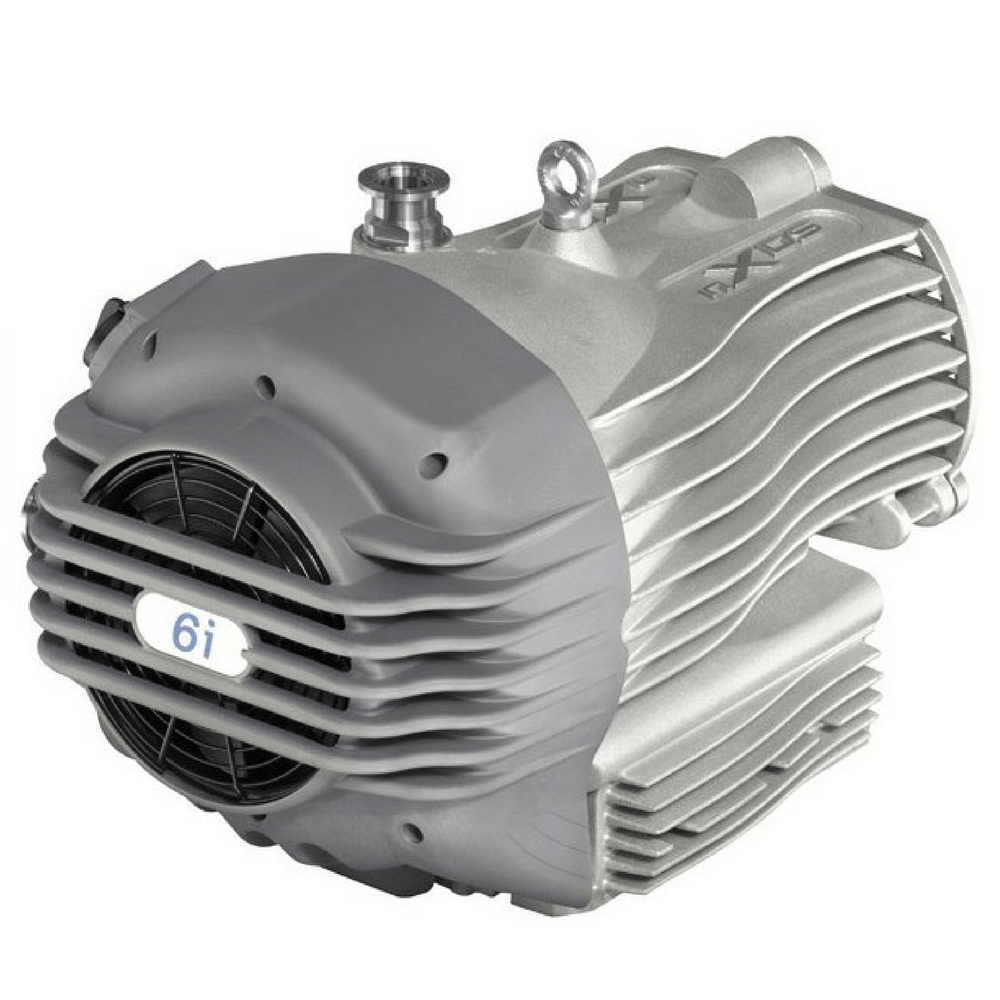

Edwards nXDS Oil-Free Scroll Pumps
Manufacturer: Turbo Vacuum
Description
The Edwards nXDS Oil-Free Scroll Pumps have scroll vacuum technology to the next level. Improved performance, exceptional pumping capability, quiet operation and extended service intervals make NXDS the ultimate dry choice. NXDS has been designed to combine the latest advances in scroll technology with an intelligent drive coupled with the long established, truly dry, hermetically sealed mechanism of the XDS series. Hermetic sealing ensures that the vacuum environment is not contaminated by bearing lubricant and, conversely, the bearings are not contaminated by any process gas being pumped. The pump contains an advanced controller that allows for several modes of control such as the manual, parallel remote, and serial communication remote.
Applications:
- Mass Spectrometry
- Electron Microscopy
- Sample preparation
- Research and Development
- High energy physics
- Industrial
- Chemicals
Features:
- Quiet operation: Better working environment
- Hermetically sealed for a lubricant-free vacuum environment: Contamination free process and no oil to dispose of
- Low power consumption: Low cost of ownership
- Intelligent and easy to use controls: Flexibility of operation
- Superior vapor handling: Wide range of applications
- Long service intervals: Maximized up-time
| SKU | Operating Temperature Range | Power Requirement | Water Vapor Tolerance |
|---|---|---|---|
| NXDS6I-1PH | 5°C to 40°C | 115-230 V, 60/50 Hz, 1 Phase | 110 gh-1 |
| NXDS10I-1PH | 5°C to 40°C | 115-230 V, 60/50 Hz, 1 Phase | 145 gh-1 |
| NXDS15I-1PH | 5°C to 40°C | 115-230 V, 60/50 Hz, 1 Phase | 240 gh-1 |
Starting at $7,978.00
Select a product below and add it to your cart to request a quote.
