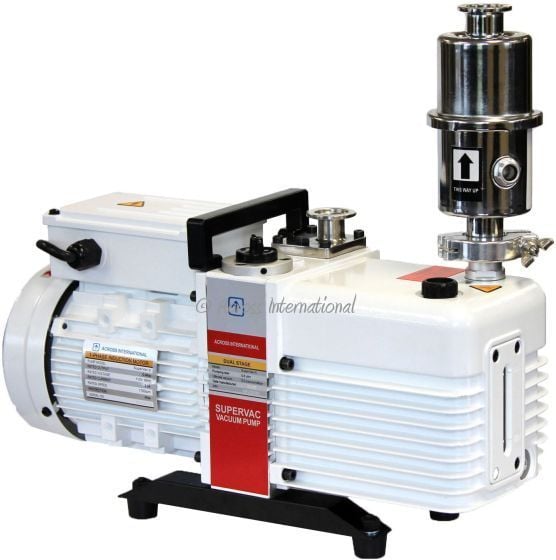

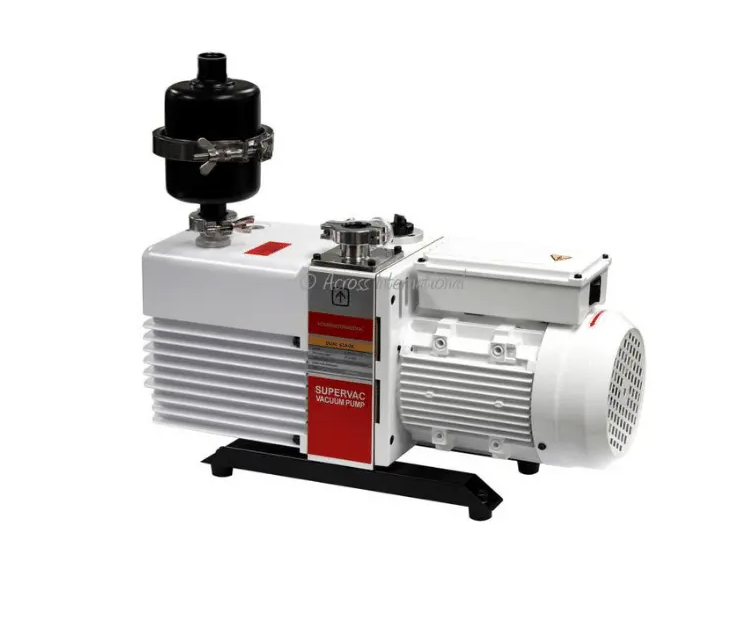

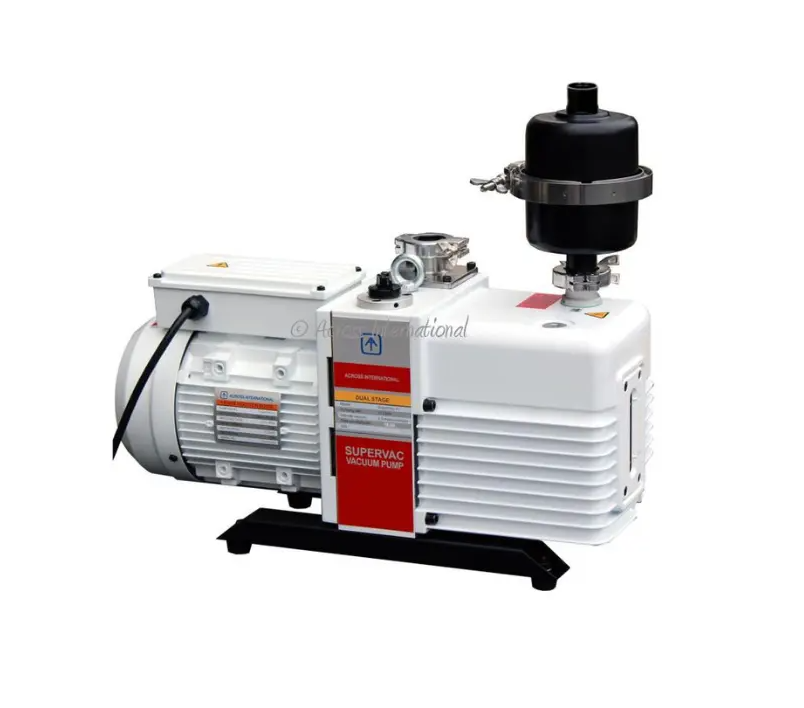

SuperVac 2-Stage Corrosion-Resist Vacuum Pumps
Manufacturer: Across International
Description
The Across International SuperVac Corrosion-Resist commercial grade vacuum pumps have a high standard of equipment safety and lifespan. These pumps are designed for reliable long time continuous operation, and they will take your equipment's vacuum down to 0.3 microns in minutes.
Multi-level gas ballast is designed to allow the pull of a less deep and slower vacuum by opening the gas ballast. This allows dry air to go directly into the pump and dilute the vacuum pull. It also helps keep moisture, solvent, and other contaminants from getting stuck in the pump, instead of passing through to the exhaust.
Features:
- Corrosion-resistant design for durable operation in various environment
- Adjustable gas ballast
- 2-stages
- Built-in oil back-flow prevention check valve
- Internal forced oil cycling system
- Integrated cylinder structure
- Exhaust filter with easy-to-change replaceable filter element
- Heavy duty structure and designed for reliable long time operation
- Low noise
- For vacuum ovens and freeze dryers
- 2-year warranty
SuperVac Corrosion-Resistant, 2-Stage Pumps Include:
| Quantity | Product |
|---|---|
| 2 pieces (SV11C-UL/SV21C-UL) 1 piece (SV5C-UL) |
Ai Premium vacuum pump oil (1L) |
| 1 piece | KF25 stainless steel vacuum bellow |
| 2 pieces | KF25 wing nut flange quick clamp |
| 2 pieces | KF25 flange centering ring |
| 1 piece | User's manual |
| SKU | Motor Speed | Vacuum Level | Temperature Range |
|---|---|---|---|
| SV11C-UL.110 | 1715 rpm (60Hz) 1440rpm (50Hz) |
0.3 micron without gas ballast 6 micron with gas ballast |
5°C to 40°C |
| SV11C-UL.220 | 1715 rpm (60Hz) 1440rpm (50Hz) |
0.3 micron without gas ballast 6 micron with gas ballast |
5°C to 40°C |
| SV21C-UL.110 | 1715 rpm | 0.3 micron without gas ballast 6 micron with gas ballast |
5°C to 40°C |
| SV21C-UL.220 | 1715 rpm | 0.3 micron without gas ballast 6 micron with gas ballast |
5°C to 40°C |
| SV5C-UL.110 | 1720 rpm (60Hz) 1450 rpm (50Hz) |
0.3 micron without gas ballast 6 micron with gas ballast |
5°C to 40°C |
| SV5C-UL.220 | 1720 rpm (60Hz) 1450 rpm (50Hz) |
0.3 micron without gas ballast 6 micron with gas ballast |
5°C to 40°C |
|
AI SuperVac Pump Specification Sheet | Download |
| SKU | Warranty | Dimensions |
|---|---|---|
| SV11C-UL.110 | 2 Years | 21.0 in x 7.5 in x 12.0 in |
| SV11C-UL.220 | 2 Years | 21.0 in x 7.5 in x 12.0 in |
| SV21C-UL.110 | 2 Years | 17.0 in x 6.75 in x 9.75 in |
| SV21C-UL.220 | 2 Years | 17.0 in x 6.75 in x 9.75 in |
| SV5C-UL.110 | 2 Years | 21.0 in x 7.5 in x 12.0 in |
| SV5C-UL.220 | 2 Years | 21.0 in x 7.5 in x 12.0 in |
