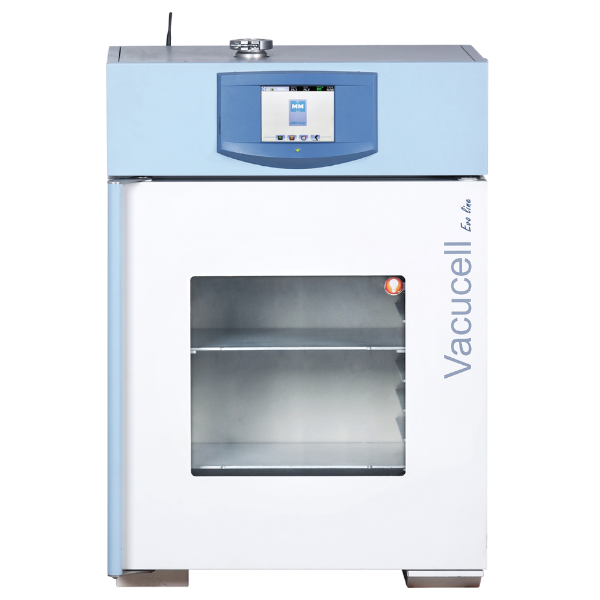

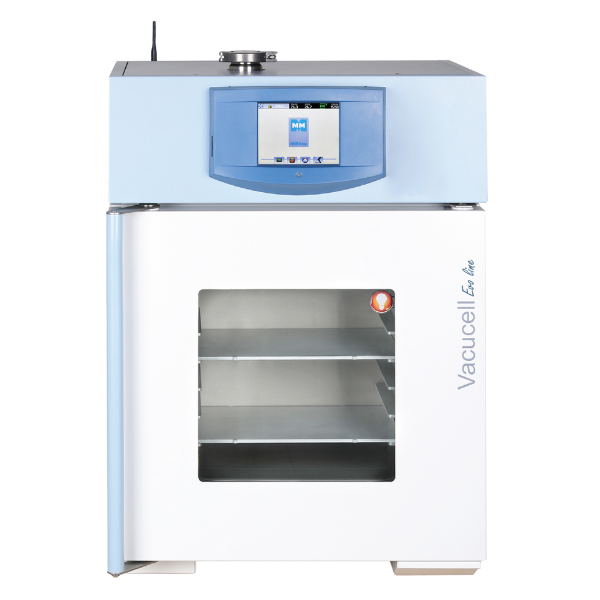

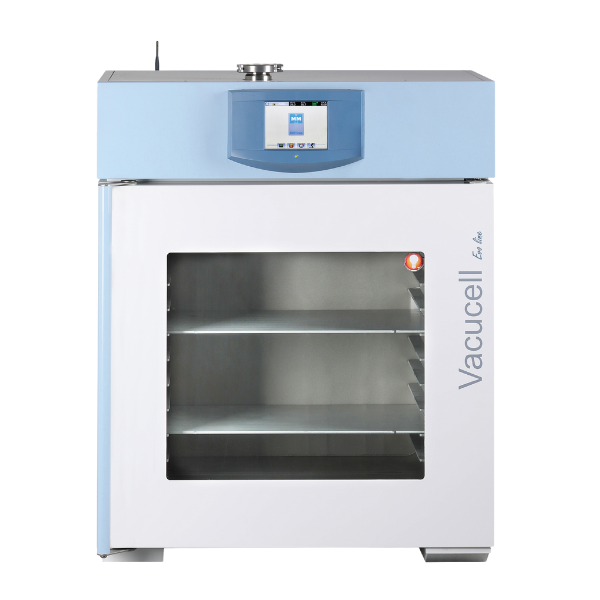

Vacucell® EVO Vacuum Drying Ovens

Vacucell® Vacuum Drying Ovens are engineered to dry temperature-sensitive, easily decomposable, or oxidative materials and solvents under controlled vacuum conditions. These lab ovens feature the Servotherm direct heat transfer system, which efficiently conducts heat from electrically heated chamber walls to the load via aluminum shelving. The ovens also include an inert gas connection for air evacuation from the chamber. Vacucell® devices can be connected to a central vacuum source.

Features:

• EVO advanced microprocessor controller
• 5.7 inch color touchscreen with glove friendly operation
• 100 programs with 100 segments each for varying loads and parameters and unlimited cycles
• Real-time programming and cycling with temperature ramping settings
• Graphic display of cycle parameters
• DIN 12880 digital safety thermostat
• Delayed heating start and stop function
• Acoustic and digital alarms
• Keypad lock
• RS 232 port
• Pharmaceutical grade AISI 316 stainless steel chamber
• Removable shelving brackets allow for easier cleaning and sterilization of the entire chamber
• Double wall chamber construction with 5 layers of insulation for more uniform internal chamber conditions
• Rounded interior corners
• Patented 4-point closing system that seals the door to the chamber gasket and enables hands-free opening and closing
• Door window installed in vacuum chamber
• Chamber has a 2 cm thick Ventiflex glass panel mounted on guide rails and springs to prevent potential explosions from excessive pressure
• The glass panel will release under excessive pressure to relieve pressure and prevent explosion

Certifications:

• CE, UL, and CSA listed
• FDA CFR 21 Part 11 compliant microprocessor integrated data logger and remote access with multi-level authentication
