BOV Series Vacuum Ovens

Name: BOV Series Vacuum Ovens
Brand: BEING Scientific
SKU: BV15020U-GROUP

Manufacturer: BEING Scientific

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Quantity	Capacity	Temperature Range	Price	Qty
BV15020U BV15020U	0.9 cu ft. BOV-20 Vacuum Oven, 110V	Each	0.9 cu ft. (24 L)	Ambient 10°C to 200°C	$2,450.00	+ -
BV15050U BV15050U	1.8 cu ft. BOV-50 Vacuum Oven, 120V	Each	1.8 cu ft. (53 L)	Ambient 10°C to 200°C	$3,800.00	+ -
BV22090U BV22090U	3.2 cu ft. BOV-90 Vacuum Oven, 110V	Each	3.2 cu ft. (91 L)	Ambient 10°C to 200°C	$5,800.00	+ -
Total $0.00

Use the Quantity box to select product first.

Accessories

Grouped product items
Cat Code	Description	For Model #	Includes	Price	Qty
P19027 P19027	Incubator/Oven Adjustable Shelf, 1240mm	BOV-20	Bracket	Regular Price $85.71 Special Price $85.71	+ -
P19035 P19035	Incubator/Oven Adjustable Shelf, 1620mm	BOV-50	Bracket	Regular Price $142.86 Special Price $142.86	+ -
P19037 P19037	Incubator/Oven Adjustable Shelf, 1900mm	BOV-90	Bracket	$200.00	+ -
P16021 P16021	Incubator/Oven Adjustable Sealing Gasket, 1240mm	BOV-20	N/A	Regular Price $42.86 Special Price $42.86	+ -
P16022 P16022	Incubator/Oven Adjustable Sealing Gasket, 1620mm	BOV-50	N/A	Regular Price $85.71 Special Price $85.71	+ -
P16023 P16023	Incubator/Oven Adjustable Sealing Gasket, 1900mm	BOV-90	N/A	Regular Price $114.29 Special Price $114.29	+ -
Total $0.00

Use the Quantity box to select product first.

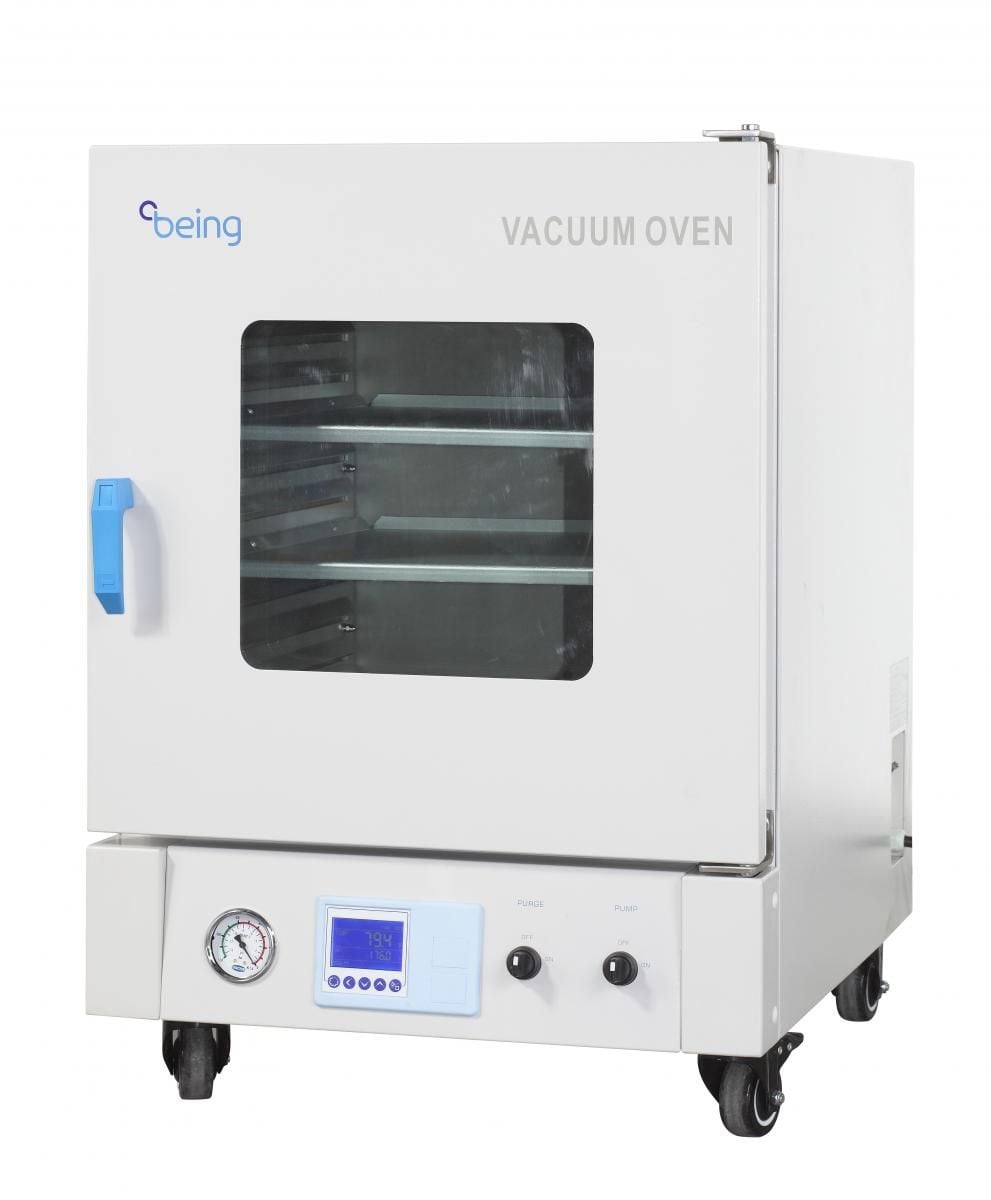

Achieve unparalleled precision in your drying and heating protocols with the BEING BOV Series Vacuum Ovens. Characterized by their high load capacity and exceptional temperature accuracy, these ovens are the ideal solution for applications requiring processing under vacuum or a controlled atmosphere. The ability to prevent oxidation, remove contaminants, and speed up outgassing makes the BOV Series an essential tool for material science, pharmaceuticals, and chemistry labs.

Description

Overview

In Stock!

Lead Times May Vary

The core of the BOV Series is its superior control. A P.I.D temperature controller and bundled heating provide accurate, reliable temperature uniformity up to 200°C. The oven is built for controlled atmospheric processing, featuring an Inert gas interface for easy access to gases like nitrogen and a solenoid valve to precisely control the vacuum degree. Safety is ensured by a multi-layered protection system, including an independent over-temperature limit controller and a toughened glass door for safe observation of the corrosion-resistant mirror stainless steel inner chamber. The unit is backed by a 2-year warranty.

Features:

PID temperature controller and bundled heating provide superior temperature uniformity
Wide temperature range of Ambient +10°C to 200°C
Inert gas interface for easy access to controlled atmospheres (e.g., nitrogen)
Corrosion-resistant mirror stainless steel inner chamber
Built-in toughened glass door for clear observation
Independent over-temperature limit controller for added safety
Equipped with a solenoid valve to control vacuum degree
Available in 0.9 cu ft, 1.8 cu ft, and 3.2 cu ft capacities
Backed by a 2-year warranty

Please note: An external vacuum pump is required for operation. Certain accessories are sold separately.

Specifications

SKU	Model #	Temperature Stability	Temperature Uniformity	Temperature Sensor	# of Shelves	Shelf Capacity	Max. # of Shelves
BV15020U	BOV-20	±0.5	±1 @ 100°C	PT100	2 Shelves	20 Kg	5 Shelves
BV15050U	BOV-50	±0.5	±1 @ 100°C	PT100	2 Shelves	20 Kg	7 Shelves
BV22090U	BOV-90	±0.5	±1 @ 100°C	PT100	2 Shelves	20 Kg	9 Shelves

Additional Info

SKU	Dimensions	Internal Dimensions	Plug Type	Power Requirement	Controller	Warranty	Timer Range	Certification	Material
BV15020U	17.5 in x 24.4 in x 22.8 in (445 mm x 620 mm x 580 mm)	11.8 in x 10.8 in x 11.8 in (300 mm x 275 mm x 300 mm)	NEMA 5-15	110V, 700W	PID	2 Year	00:01 - 99:59	ETL	Stainless Steel, Aluminum
BV15050U	22.8 in x 27.7 in x 26.5 in (580 mm x 705 mm x 675 mm)	16.3 in x 13.6 in x 14.6 in (415 mm x 345 mm x 370 mm)	NEMA 5-20	120V, 50/60 Hz, 1400W	PID	2 Year	00:01 - 99:59	ETL	Stainless Steel, Aluminum
BV22090U	24.0 in x 31.8 in x 31.6 in (610 mm x 810 mm x 805 mm)	17.7 in x 17.7 in x 17.7 in (450 mm x 450 mm x 450 mm)	NEMA 6-15	240V, 60 Hz, 2000W	PID	2 Year	00:01 - 99:59	ETL	Stainless Steel, Aluminum

Starting at $2,450.00

Select a product below and add it to your cart to request a quote.
