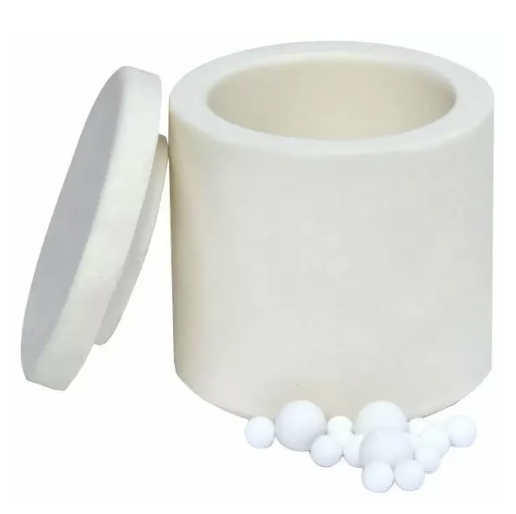

Alumina Ceramic Grinding Jars
Manufacturer: Across International
The Alumina Ceramic Grinding Jars from Across International are polished and ready to use whenever small-quantity samples need to be ground. They are to be used with the appropriate Planetary Ball Mill.
Description
In Stock!
Lead Times May Vary
The Alumina Ceramic Grinding Jars are polished and are used whenever small quantity of samples needed to be grinded.
Each Set Includes:
- Grinding Jar
- Lid
- Rubber Sealing Gasket
- Different Sizes of Mixed Alumina Ceramic Grinding Balls
Features:
- Al2O3 content: < 97%
- Hardness: 9 mohs
- Density: 3.65 g/cm3
Ball Configurations:
| 50 mL | 100 mL | 500 mL | 1000 mL | ||
|---|---|---|---|---|---|
Ball Size/Qty (Pcs) |
6 mm |
50 |
100 |
500 |
1000 |
10 mm |
8 |
16 |
100 |
200 |
|
20 mm |
2 |
3 |
|||
Jar Configurations:
| Planetary Ball Mill | Capacity | Compatible Non-Vacuum Jars | Compatible Vacuum Jars | Quantity |
|---|---|---|---|---|
PQ-N04 |
0.4 L |
50 mL - 100 mL |
50 mL |
4 |
PQ-N2 |
2 L |
250 mL - 500 mL |
100 mL - 250 mL |
4 |
PQ-N4 |
4 L |
100 mL - 250 mL |
250 mL - 500 mL |
4 |
Tolerance: ±2-3 mm
| SKU | Material | For Use With | Outer Diameter | Inner Diameter | Height | Depth |
|---|---|---|---|---|---|---|
| AC.1L | Alumina Ceramic | PQ-N4 | 131 mm | 115 mm | 115 mm | 115 mm |
| AC.500 | Alumina Ceramic | PQ-N2, PQ-N4 | 107 mm | 87 mm | 110 mm | 85 mm |
| AC.100 | Alumina Ceramic | PQ-N04 | 68 mm | 52 mm | 70 mm | 52 mm |
| SKU | Density |
|---|---|
| AC.1L | 3.65 g/cm3 |
| AC.500 | 3.65 g/cm3 |
| AC.100 | 3.65 g/cm3 |
