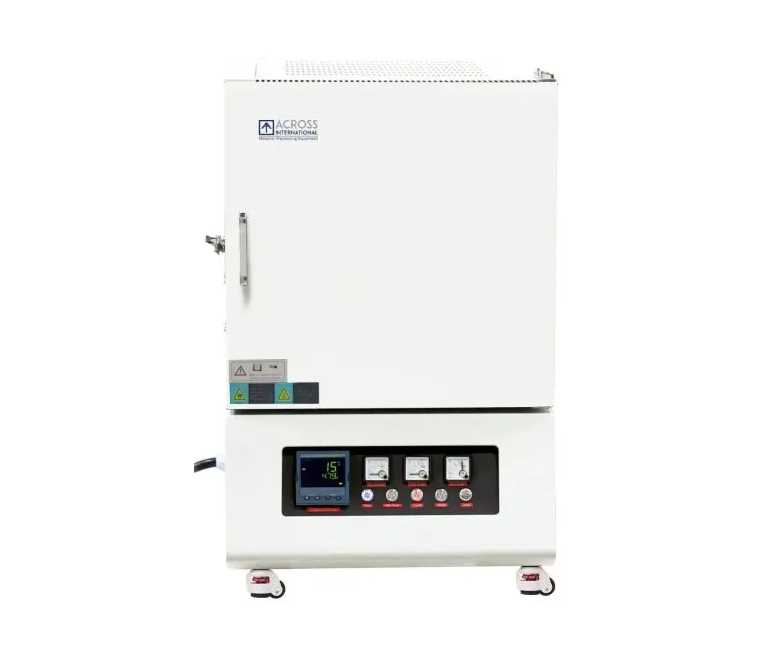

1750°C Muffle Furnace Eurotherm Digital Controller
Manufacturer: Across International
The Across Int. 1750°C Muffle Furnace with Eurotherm Digital Multi-Segment Controller helps laboratories and clinics with different sizes of sample heating. The chamber's physical capacity reaches 7x6x6 with a Mitsubishi 1900 alumina fiber insulation liner. The heating elements consist of molybdenum silicide. Programmable across 40 segments, data can be saved and exported from the unit. There is a built-in ammeter and dual voltmeters for easy monitoring and troubleshooting, to include ensuring the unit does not overheat with an overheating protection shut-off feature. As with all Across muffle furnaces, this unit is CE compliant.
Description
In Stock!
Lead Times May Vary
The CF1750 7x6x6 series features a chamber with Mitsubishi (Japan) high-quality grade 1900 alumina fiber insulation. It also offers molybdenum silicide heating elements.
Features:
- 40-segment digital controller
- Built-in RS485 digital communciations port and USB adaptor for PC remote control and monitoring
- Ability to save and export test results
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting
- Long life type B thermocouple
- CE compliant
Safety Features:
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
- Power failure protection resumes furnace operation right after the point of failure when power is re-established
CF1750 Series Includes:
| Quantity | Product |
|---|---|
| 1 piece | Thermocouple |
| 1 piece | U-shape tool for door block |
| 1 piece | Stainless steel tongs |
| 1 piece | Alumina thermal cushion block |
| 1 pair | Thermal gloves |
| 2 pieces | Spare |
| 1 set | Interface kit |
| 2 pieces | Spare heating element |
| 1 piece | Eurotherm USB software/td> |
| 1 piece | Alumina thermal plate |
| 5 pieces | Crucibles |
| 5 pieces | Crucible lids |
| 1 set | User's manual |
| SKU | Temperature Accuracy | Max Temperature | Dimensions |
|---|---|---|---|
| CF1750.7.6.6 | ±1°C | Working Temperature: 1750°C | 24" x 22" x 34" |
The Across Int. 1750°C Muffle Furnace with Eurotherm Digital Multi-Segment Controller helps laboratories and clinics with different sizes of sample heating. The chamber's physical capacity reaches 7x6x6 with a Mitsubishi 1900 alumina fiber insulation liner. The heating elements consist of molybdenum silicide. Programmable across 40 segments, data can be saved and exported from the unit. There is a built-in ammeter and dual voltmeters for easy monitoring and troubleshooting, to include ensuring the unit does not overheat with an overheating protection shut-off feature. As with all Across muffle furnaces, this unit is CE compliant.
Starting at $19,990.00
Request A Quote
