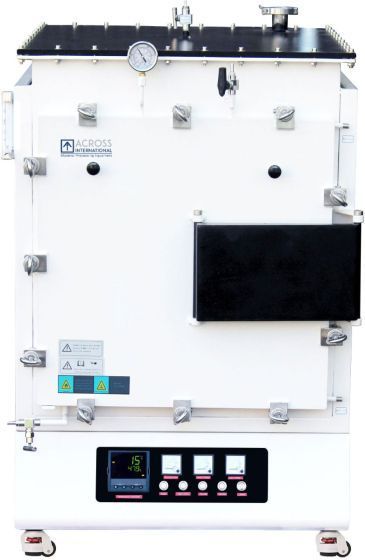

1700°C Max Controlled Atmosphere Muffle Furnaces

The Across International GCF1700 Series Controlled Atmosphere Muffle Furnaces are durable and offer a quality design perfect for the lab. It comes standard with a Mitsubishi (Japan) chamber with high-quality alumina fiber insulation and MoSi₂ heating elements. A double-walled steel internal housing helps minimize heat loss to the exterior surface. Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with a built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. Test results can be saved or exported.

Features:

• Multiple gas inlets and outlets with stainless steel ball valves. Flow meter to control inbound and outbound gas flows. Outlets can be ignited to burn off gas
• Furnace chamber is welded and oil leak tested to ensure air tightness. Furnace door is sealed with high temperature silicon gasket
• Built-in stainless steel water-cooling panel protects door sealing gasket when furnace is under heavy use
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot
• Multiple atmosphere processes in a single cycle are possible
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting, built-in computer interface
• Built in computer interface
• CE compliant

Safety Features:

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual)
• Shuts down furnace if thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished

GCF1700 Series Includes:
