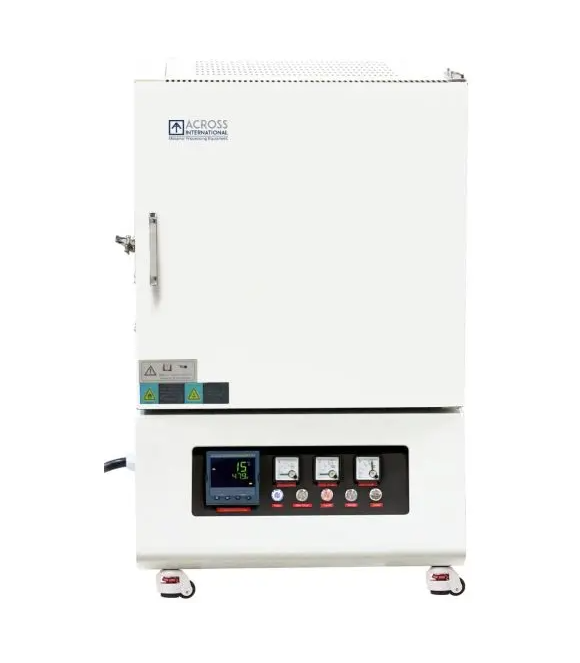

1700°C 40-Segment Muffle Furnaces

The Across International CF1700 Series Muffle Furnaces are durable and offer a quality design perfect for the lab. The C71400 series features a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and molybdenum silicide heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. Test results can also be saved and exported.

Features:

• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting
• Built-in computer interface
• Long life type B thermocouple
• CE compliant

Safety Features:

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual)
• Shuts down furnace if thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished

CF1700 Series Includes:
