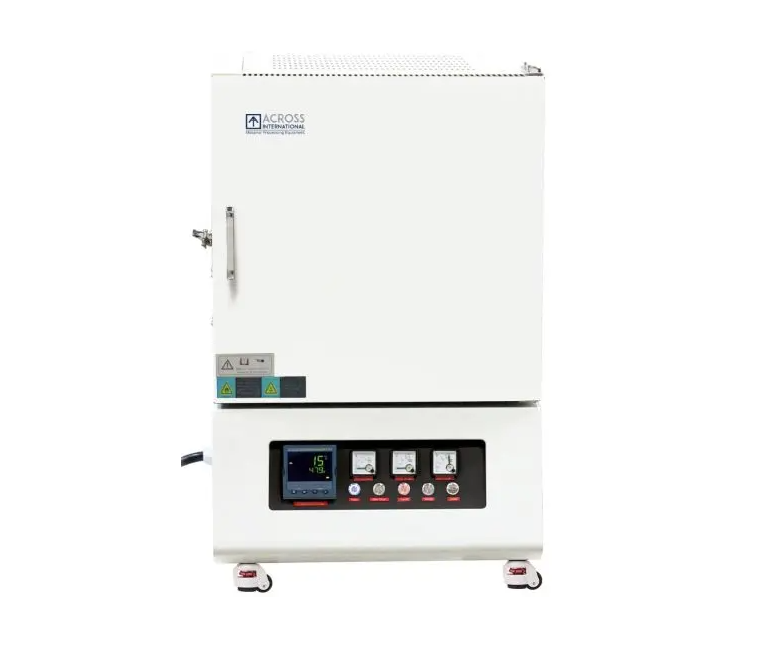

1400°C 40-Segment Muffle Furnaces

The Across International CF1400 Series Muffle Furnaces are durable and offer a quality design perfect for the lab. The CF1400 series features a chamber with Mitsubishi (Japan) high-quality alumina fiber insulation and silicon carbide (SiC) heating elements. A double-walled steel internal housing helps minimize heat loss to the exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. Test results can also be saved and exported.

Features:

• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting
• Built-in computer interface
• Long life type S thermocouple
• ETL and CE certified, standard

Safety Features:

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual)
• Shuts down furnace if thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is re-established

CF1400 Series Includes:
