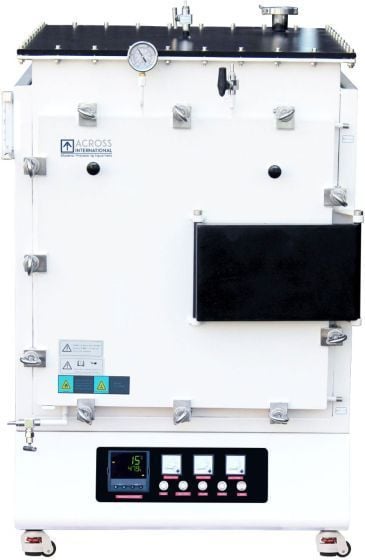

1200°C Controlled Atmosphere Muffle Furnaces

The Across International GCF1200 Series is Controlled Atmosphere Muffle Furnaces. This series is durable and offers a quality design that is perfect for the lab. The CF1200 series features a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and the famous Kanthal (Sweden) heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. Test results can be saved or exported.

Features:

• Multiple gas inlets and outlets with stainless steel ball valves. Flow meter to control inbound and outbound gas flows. Outlets can be ignited to burn off gas
• Furnace chamber is welded and oil leak tested to ensure air tightness. Furnace door is sealed with high temperature silicon gasket
• Built-in stainless steel water-cooling panel protects door sealing gasket when furnace is under heavy use.
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting
• Multiple atmosphere processes in a single cycle are possible
• Long life type K thermocouple
• ETL and CE certified, standard

Safety Features:

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual)
• Shuts down furnace if thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished

GCF1200 Series Includes:
