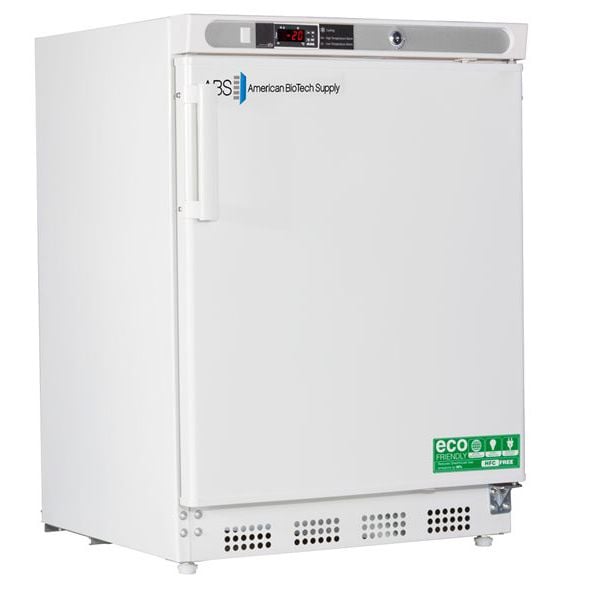

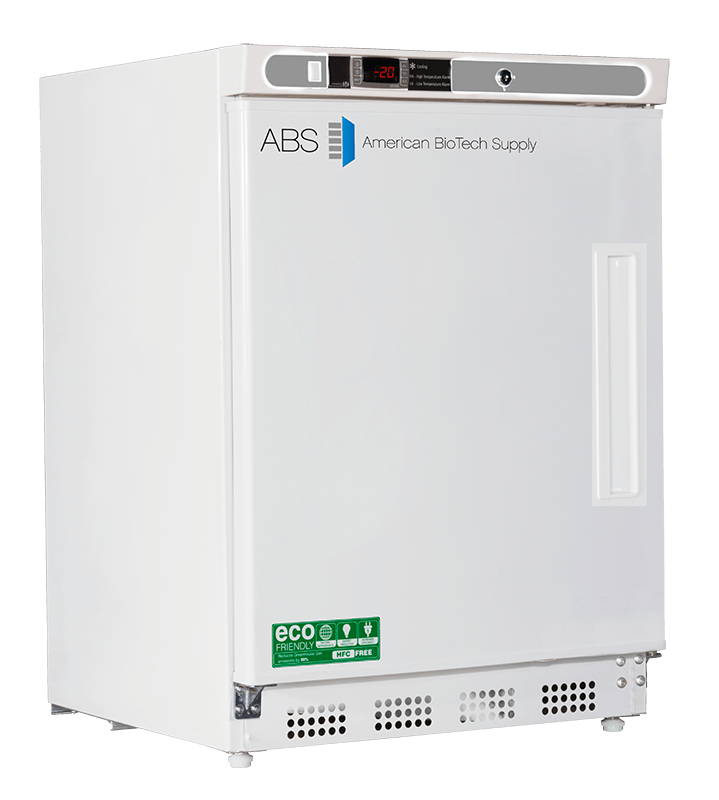

Premier Built-In Undercounter Auto Defrost Freezers
Manufacturer: American Biotech Supply
The Premier Built-In Undercounter Auto Defrost Freezers from American BioTech Supply utilize HFC-free R290 refrigerant and high-density urethane foam cabinet and door insulation. These units feature a microprocessor controller, a digital temperature display, and an array of safety features. They are UL/C-UL listed and have a two-year parts and labor warranty and a three-year compressor parts warranty. Units can be purchased with a right or left hinge.
Description
In Stock!
Lead Times May Vary
The Premier Built In Undercounter Freezers feature a microprocessor temperature controller and display, allow for precise temperature control, verification and recovery versus mechanical style thermostats. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.
Features:
- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high/low temperature alarms with remote alarm contacts
- Two probes
- One probe in air
- One probe in glycol bottle
- Probe access port (3/8")
- Auto defrost cycle every 6 hours
- Max air temp in empty freezer: +4.34°C
- Max air temp in loaded freezer: -2.89°C
- Max sample temp in empty freezer: -4.76°C
- Max sample temp in loaded freezer: -9.58°C
- Magnetic door gasket for positive seal
- Recessed door handle
- Leveling legs
- Powder coat exterior
- High density urethane foam cabinet and door insulation
- HFC-free refrigerant (R290), foam insulation and packaging
- Availible with left or right hinge
Compatibility:
- Pyxis®
- Omnicell®
- AcuDose RX®
Certifications
- UL, C-UL Listed
- ENERGYSTAR certified
Warranty:
- Two-year parts and labor warranty
- Five-year compressor parts warranty
Note:
- Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.
- The Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
| SKU | Door Type | Operating Temperature Range | Certification | Warranty | Hinge |
|---|---|---|---|---|---|
| ABT-HC-UCBI-0420A | Solid Swing Door | -15°C to -25°C | UL, C-UL Listed | 2 Year | Right |
| ABT-HC-UCBI-0420A-LH | Solid Swing Door | -15°C to -25°C | UL, C-UL Listed | 2 Year | Left |
|
ABT-HC-UCBI-0420A Exterior Cutsheet | Download |
|
|
ABT-HC-UCBI-0420A Interior Cutsheet | Download |
|
|
ABT-HC-UCBI-0420A Specsheet | Download |
|
|
ABT-HC-UCBI-0420A-LH Exterior Cutsheet | Download |
|
|
ABT-HC-UCBI-0420A-LH Interior Cutsheet | Download |
|
|
ABT-HC-UCBI-0420A-LH Specsheet | Download |
| SKU | Dimensions | Electrical Information | Refrigerant | Controller |
|---|---|---|---|---|
| ABT-HC-UCBI-0420A | 23.75 in x 24.5 in x 33.125 in | 115V, 60Hz, 1.8A, 1/8 HP | R290 | Microprocessor |
| ABT-HC-UCBI-0420A-LH | 23.75 in x 24.5 in x 33.125 in | 115V, 60Hz, 1.8A, 1/8 HP | R290 | Microprocessor |
The Premier Built-In Undercounter Auto Defrost Freezers from American BioTech Supply utilize HFC-free R290 refrigerant and high-density urethane foam cabinet and door insulation. These units feature a microprocessor controller, a digital temperature display, and an array of safety features. They are UL/C-UL listed and have a two-year parts and labor warranty and a three-year compressor parts warranty. Units can be purchased with a right or left hinge.
Starting at from $2,568.00 Sale $2,439.60
Request A Quote
![Premier Built-In Undercounter Auto Defrost Freezers]()
Select a product below and add it to your cart to request a quote.
