General Purpose Freestanding Undercounter Manual Defrost Freezers
Manufacturer: American Biotech Supply
These General Purpose Freestanding Undercounter Manual Defrost Freezers have a built-in mechanical thermostat with an operating temperature range of -15°C to -25°C with an average cycle temperature of -20°C. These units use HFC-Free Refrigerant (R600a) and high-density urethane foam cabinet and door insulation to maintain the cold temperature. These units are for general use only and come with a one-year warranty.
Description
In Stock!
Lead Times May Vary.
The General Purpose Free Standing Undercounter Freezers are intended for general purpose applications only where precise temperature control and maintenance are not essential, and there are no requirements for temperature alarms.
Features:
- Mechanical thermostat
- Average cycle temperature of -20°C
- Magnetic door gasket for positive seal
- High-density urethane foam cabinet and door insulation
- HFC-free refrigerant (R600a)
- Heavy duty door handle with keyed duty door handle
- Manual defrost
- Probe access port (3/8")
Compatibility:
- ABT-HC-UCFS-0220M: Pyxis®, Omnicell®, and AcuDose RX® compliant
Certifications:
- ABT-HC-UCFS-0420W: UL, C-UL listed
Warranty:
- One year parts and labor warranty
- Units require 4" of clearance around the back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating, and possible failure.
- Periodic defrosting is required.
| SKU | Door Type | Operating Temperature Range | Certification | Warranty | Hinge |
|---|---|---|---|---|---|
| ABT-HC-UCFS-0420W | Solid Swing Door | -15°C to -25°C | UL, C-UL Listed | 1 Year | Right |
| ABT-HC-UCFS-0220M | Solid Swing Door | -15°C to -25°C | 1 Year | Right |
|
ABT-HC-UCFS-0220M SpecSheet | Download |
|
|
ABT-HC-UCFS-0420W SpecSheet | Download |
|
|
ABT-HC-UCFS-0220M Ext CutSheet | Download |
|
|
ABT-HC-UCFS-0220M Int CutSheet | Download |
|
|
ABT-HC-UCFS-0420W Ext CutSheet | Download |
|
|
ABT-HC-UCFS-0420W Int CutSheet | Download |
| SKU | Dimensions | Electrical Information | Refrigerant | Controller |
|---|---|---|---|---|
| ABT-HC-UCFS-0420W | 20.25 in x 21.625 in x 31.5 in | 115V, 60Hz, 0.9A, 1/7 HP | R600a | Mechanical |
| ABT-HC-UCFS-0220M | 18.5 in x 19.5 in x 19.5 in | 115V, 60Hz, 1.1A, 1/10 HP | R600a | Mechanical |
These General Purpose Freestanding Undercounter Manual Defrost Freezers have a built-in mechanical thermostat with an operating temperature range of -15°C to -25°C with an average cycle temperature of -20°C. These units use HFC-Free Refrigerant (R600a) and high-density urethane foam cabinet and door insulation to maintain the cold temperature. These units are for general use only and come with a one-year warranty.
Starting at from $876.00 Sale $832.20
Request A Quote

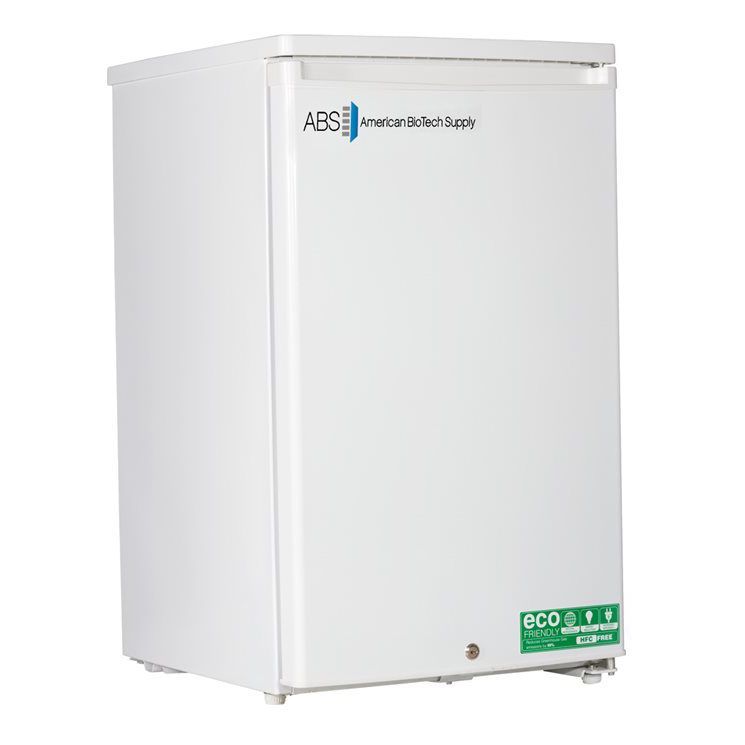

![4 cu ft. General Purpose Freestanding Undercounter Manual Defrost Freezer, 115V, Exterior]()
