CB Series Benchtop Water Circulators
Manufacturer: Yamato Scientific America
The Yamato Scientific Benchtop Water Circulator is notable for its precision and compact build. It has a wide temperature range of -10℃ to 80℃ and features a high head and flow rate and an easy-to-clean cooling air intake filter. It is also equipped with a drain and uses environmentally friendly refrigerant.
Description
In Stock!
Lead Times May Vary
Features:
- High head and flow rate
- Lift and flow rates allow stable circulation even when installed under a desk
- Filter mounting plate located on the front of the unit can be easily removed during cleaning
- Standard equipped with drain
- Maintenance work, such as the replacement of liquid, can be easily performed
- Nozzle is freely rotatable and can be installed in any direction
- Compact size for limited spaces
- R134a refrigerant
Safety Features:
- Overcurrent ELCB
- Temperature sensor failure
- Temperature rise/fall alarm(operation continues)
- Temperature upper/lower limit error (operation stops)
- Float switch for dry heating prevention
- Refrigeration overload relay
- Fan motor protection
- Circulation pump thermal protector
- Delay timer for refrigerator protection
- Overheat prevention device
Includes:
- Hose nozzle 10 mm outer diameter connection (for flexible hose connection)
- Knurled screw
| SKU | Ambient Temperature Range | Temperature Accuracy | Refrigerant | Cooling Capacity | Recirculating Pump Type |
|---|---|---|---|---|---|
| CB-100-115V | 5°C to 30°C | ± 0.1°C | R134a | 230W | Induction Motor 40W |
|
Benchtop Water Circulators Brochure | Download |
| SKU | Material | External Dimensions | Power Requirement | Temperature Sensor |
|---|---|---|---|---|
| CB-100-115V | Stainless Steel | 180 mm x 360 mm x 553 mm | AC115V, 13A with plug | Pt100Ω |
The Yamato Scientific Benchtop Water Circulator is notable for its precision and compact build. It has a wide temperature range of -10℃ to 80℃ and features a high head and flow rate and an easy-to-clean cooling air intake filter. It is also equipped with a drain and uses environmentally friendly refrigerant.
Starting at $3,730.00
Request A Quote

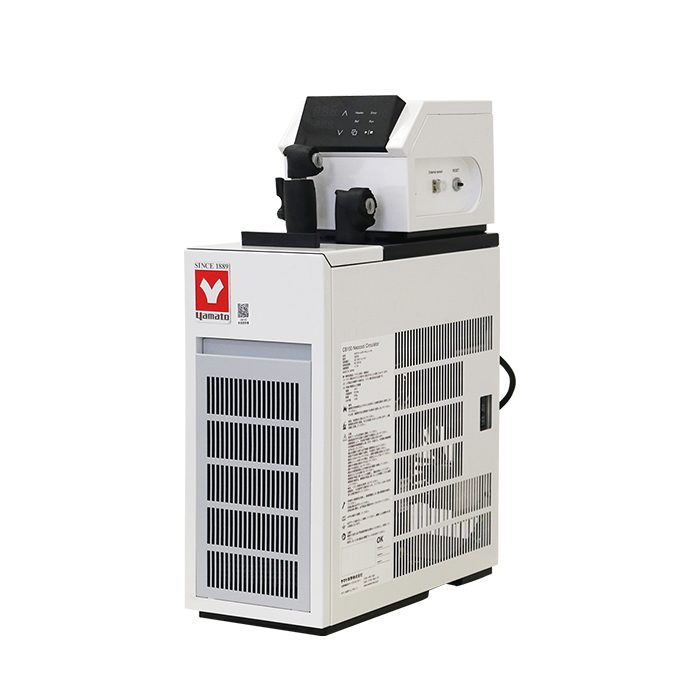

![Yamato Scientific Benchtop Water Circulator CB100]()
