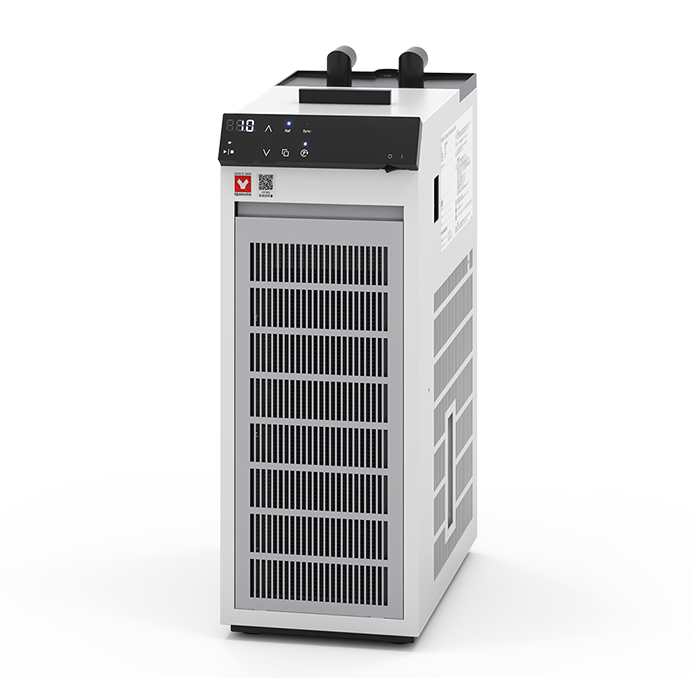

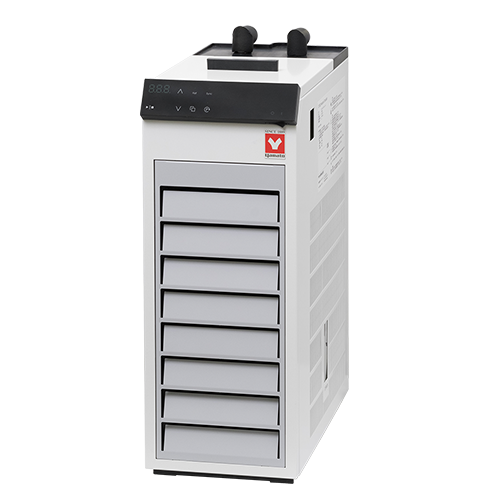

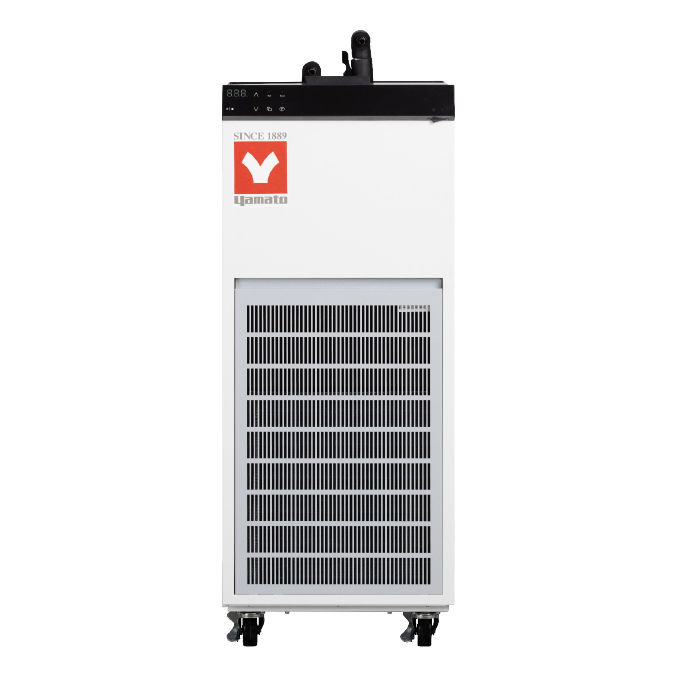

CF Series Refrigerated Water Circulators
Manufacturer: Yamato Scientific America
The Yamato Refrigerated Water Circulators are powerful water-saving closed cooling systems with an excellent cooling capacity. All models use environment-friendly coolants used for refrigeration. There are two sizes to choose from with capacities of either 3.9 L or 15.5 L. It features a user-friendly controller with high visibility and improved operability.
Description
In Stock!
Lead Times May Vary
The Yamato Refrigerated Water Circulators contain features to ensure quality operation, efficiency, and safety.
Features:
- User-friendly controller
- Possible to switch between measured temperature and set temperature
- Convenient circulation pathway connection
- Connection is completed by inserting a hard tube with 10 mm OD or flexible hose with 9mm ID
- Connector can be freely moved and be set in the desired direction
- Condensation drain port is designed near the connector on the upper rear of the unit for easy drainage
- Easy to clean intake filter
Safety Features:
- Overcurrent ELCB
- Temperature sensor failure
- Temperature upper/lower limit alert
- Temperature upper/lower limit error
- Refrigerator high pressure cut off switch fan motor protection
- Circulation pump protection
- Delay timer for refrigerator protection
- Overcurrent protection fuse (service outlet) (CF802)
- Refrigerator overload relay (CF802)
Includes:
- Condensation drain hose (1m)
- 2 Hose clamps
- 2 Hose nozzle (for flexible hose connection)
- Spare fuse for service outlet 2A for CF-802A
| SKU | Cooling Capacity | Refrigerant | Temperature Accuracy | Ambient Temperature Range |
|---|---|---|---|---|
| CF-303Y | ~450W at 10°C/~330W at -10°C | R452A | ± 1.0°C (≥ 0°C) / ± 1.5°C (< 0°C) | 5°C to 35°C |
| CF-313Y | ~450W at 10°C/~330W at -10°C | R452A | ± 1.0°C (≥ 0°C) / ± 1.5°C (< 0°C) | 5°C to 35°C |
| CF-802A-115V | ~1320W at 10°C / ~700W at -10°C | R410A | ± 1.0°C | 5°C to 35°C |
|
CF Series Water Circulator Brochure | Download |
| SKU | Material | External Dimensions | Power Requirement | Temperature Sensor |
|---|---|---|---|---|
| CF-303Y | Stainless Steel | 205 mm x 396 mm x 535 mm | AC115V, 6.8A with plug | Pt100Ω |
| CF-313Y | Stainless Steel | 205 mm x 396 mm x 535 mm | AC220V, 4A no plug | Pt100Ω |
| CF-802A-115V | Stainless Steel | 340 mm x 370 mm x 838 mm | AC115V, 15A with plug | Pt100Ω |
The Yamato Refrigerated Water Circulators are powerful water-saving closed cooling systems with an excellent cooling capacity. All models use environment-friendly coolants used for refrigeration. There are two sizes to choose from with capacities of either 3.9 L or 15.5 L. It features a user-friendly controller with high visibility and improved operability.
Starting at $2,575.00
Request A Quote
![CF Series Refrigerated Water Circulators]()
Select a product below and add it to your cart to request a quote.
