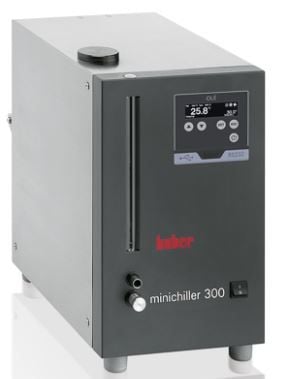

Minichiller® OLÉ Recirculating Chillers
Manufacturer: Huber USA
Description
The OLÉ controller combines advanced technology with simple operation, making these chillers ideal for routine tasks in research and industry. Despite their powerful performance, they have a small footprint, requiring only 225 x 360 mm of bench space. They are perfect for cooling demanding equipment like reactor blocks, vacuum pumps, and rotary evaporators. Key features include a bright, large OLED display, an illuminated fill level indicator, and natural refrigerants for eco-friendly operation. For applications requiring temperature elevation, an optional 1 kW heater extends the range up to +100°C (H models).
Features:
- Environmentally-friendly, economic cooling solution with reduced water usage
- Compact footprint (225 x 360 mm) ideal for benchtop placement
- Precise temperature control maintains stable application conditions
- Wide temperature range from -20°C to 40°C (up to 100°C with H models)
- Bright, large OLED display and illuminated filling level indicator
- Robust stainless construction and reliable continuous operation up to 40°C ambient temperature
- Easy to fill and empty
- Equipped with USB and RS232 interfaces for external control and data logging
- Utilizes natural refrigerants for sustainability
| SKU | Controller | Max Pressure | Refrigerant | Power Requirement | Max Suction |
|---|---|---|---|---|---|
| 3006.0093.98 | OLE | 0.25 bar | R290 | 110V - 120V, 60 Hz, 4.5 A | 0.17 bar |
| 3006.0095.98 | OLE | 0.25 bar | R290 | 110V - 120V, 60 Hz, 13 A | 0.17 bar |
| 3066.0001.98 | OLE | 0.17 bar | R290 | 110V - 120V, 60 Hz, 8.5 A | 0.4 bar |
| 3066.0002.98 | OLE | 0.17 bar | R290 | 208V - 240V, 60 Hz, 12 A | 0.4 bar |
|
|
Minichiller® OLÉ 300 Recirculating Chiller Specification Sheet | Download |
|
|
Minichiller® OLÉ 300-H Recirculating Chiller Specification Sheet | Download |
|
|
Minichiller® OLÉ 600/600-H Recirculating Chiller Specification Sheet | Download |
|
|
Huber Thermal Fluids Compatibility Chart | Download |
-
Read MoreAn easy decision: The modern Pilot ONE, and the simple KISS/OLÉ offer a range of functionality to suit all temperature control requirements.
| SKU | Model # | Type | Safety | Height | Width | Depth |
|---|---|---|---|---|---|---|
| 3006.0093.98 | MINICHILLER-300-OLE | Air Cooled | I/FL | 14.96 in | 8.86 in | 14.17 in |
| 3006.0095.98 | MINICHILLER-300-H-OLE | Air Cooled | I/FL | 14.96 in | 8.86 in | 14.17 in |
| 3066.0001.98 | MINICHILLER-600-OLE | Air Cooled | I/FL | 16.69 in | 11.02 in | 19.29 in |
| 3066.0002.98 | MINICHILLER-600-H-OLE | Air Cooled | I/FL | 16.69 in | 11.02 in | 19.29 in |
Starting at $6,230.00
Select a product below and add it to your cart to request a quote.
