Standard Digital Refrigerated/Heated Circulating Baths
Manufacturer: PolyScience
Set and read to 0.1°C, ±0.04°C temperature stability, and a 2-speed pump make the Standard Digital Controller an economical and reliable choice for a variety of laboratory applications, including those requiring closed-loop external circulation.
Description
In Stock!
Approx. 8 Week Lead Time
Standard Digital Temperature Controller Features
- Reliable
Set and read to 0.1°C, ±0.04°C temperature stability, and a 2-speed pump make the Standard Digital Controller an economical and reliable choice for a variety of laboratory applications, including those requiring closed-loop external circulation. - Communication
RS232 serial communication capability allows control and data logging via a PC or other remote device. - Intuitive Operation

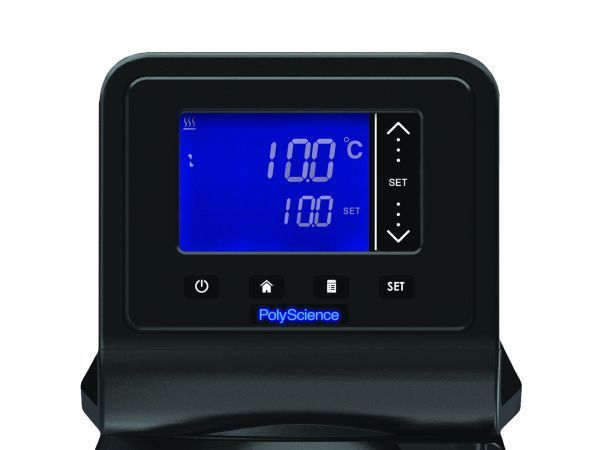

Plain-text prompts and intuitive controls guide you quickly through setup. Intelligent touch and scroll display makes it easy to make both large and small set-point changes. - Protection
User-settable high-temperature safety provides over-temperature and low-liquid level protection. Adjustable high and low limits guard against unintended set-point changes.
| SKU | Temperature Range | Temperature Stability | Certification | Compliance |
|---|---|---|---|---|
| SD7LR-20-A11B | -20°C to +170°C | ±0.04°C | ETL | RoHS, WEEE |
| SD07R-20-A11B | -20°C to +170°C | ±0.04°C | ETL | RoHS, WEEE |
| SD15R-30-A11B | -30°C to +170°C | ±0.04°C | ETL | RoHS, WEEE |
| SD20R-30-A11B | -30°C to +170°C | ±0.04°C | ETL | RoHS, WEEE |
| SD28R-30-A11B | -30°C to +170°C | ±0.04°C | ETL | RoHS, WEEE |
|
Polyscience 7 Liter Refrigerated Circulator | Download |
|
|
Polyscience 7 Liter Low Profile Refrigerated Circulator | Download |
|
|
Polyscience 15 Liter Refrigerated Circulator | Download |
|
|
Polyscience 20 Liter Refrigerated Circulator | Download |
|
|
Polyscience 28 Liter Refrigerated Circulator | Download |
|
|
PolyScience Selection Guide | Download |
| SKU | Electrical Information | Dimensions |
|---|---|---|
| SD7LR-20-A11B | 120 VAC, 60Hz, 1-Phase, 12A | 21.3 in x 8.7 in x 24.3 in |
| SD07R-20-A11B | 120 VAC, 60Hz, 1-Phase, 12A | 23.2 in x 16.2 in x 16.2 in |
| SD15R-30-A11B | 120 VAC, 60Hz, 1-Phase, 13A | 22.4 in x 14.5 in x 26.9 in |
| SD20R-30-A11B | 120 VAC, 60Hz, 1-Phase, 13A | 24.0 in x 16.6 in x 26.9 in |
| SD28R-30-A11B | 120 VAC, 60Hz, 1-Phase, 13A | 26.5 in x 18.0 in x 26.9 in |
Set and read to 0.1°C, ±0.04°C temperature stability, and a 2-speed pump make the Standard Digital Controller an economical and reliable choice for a variety of laboratory applications, including those requiring closed-loop external circulation.
Starting at $4,620.25
Request A Quote
![Standard Digital Refrigerated/Heated Circulating Baths]()
Select a product below and add it to your cart to request a quote.
