Unistat T Series Dynamic Temperature Control Systems

Name: Unistat T Series Dynamic Temperature Control Systems
Brand: Huber USA
SKU: 1003.0031.01-GROUPED

Manufacturer: Huber USA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Cooling Capacity	Heating Capacity	Model #	Temperature Range	Price	Qty

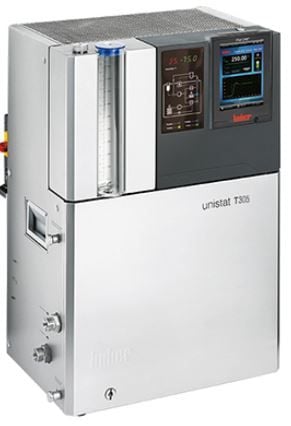

1003.0031.01 1003.0031.01	Unistat T305 Dynamic Temperature Control System	N/A	6.0 kW	Unistat-T305	65 to 300°C	$25,650.00	+ -
1003.0033.01 1003.0033.01	Unistat T305-HT Dynamic Temperature Control System	0.6 at 100°C	6.0 kW	Unistat-T305-HT	65 to 300°C	$29,700.00	+ -
1003.0035.01 1003.0035.01	Unistat T305W-HT Dynamic Temperature Control System	10.0 at 100°C	6.0 kW	Unistat-T305W-HT	(15) 65 to 300°C	$30,550.00	+ -

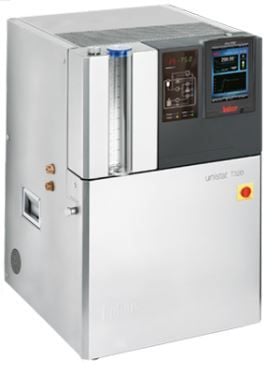

1083.0022.01 1083.0022.01	Unistat T320 Dynamic Temperature Control System	N/A	12.0 kW	Unistat-T320	65 to 300°C	$47,450.00	+ -
1083.0020.01 1083.0020.01	Unistat T320W-HT Dynamic Temperature Control System	6.0 at 100°C	12.0 kW	Unistat-T320W-HT	(15) 65 to 300°C	Please call for status & pricing.
1004.0058.01 1004.0058.01	Unistat T330W-HT Dynamic Temperature Control System	10.0 at 100°C	24.0 kW	Unistat-T330W-HT	(15) 65 to 300°C	$80,200.00	+ -

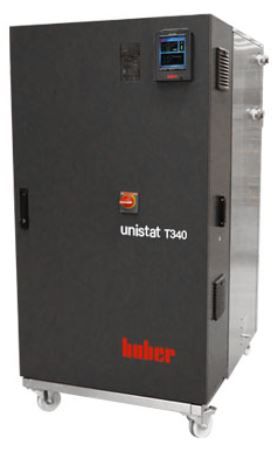

1024.0025.01 1024.0025.01	Unistat T340W-HT Dynamic Temperature Control System	12 at 100°C	48.0 kW	Unistat-T340W-HT	(15) 65 to 300°C	$109,900.00	+ -

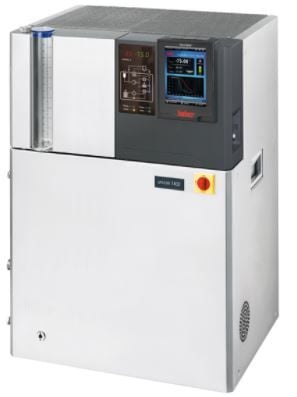

1038.0006.01 1038.0006.01	Unistat T402 Dynamic Temperature Control System	N/A	6.0 kW	Unistat-T402	80 to 425°C	$55,650.00	+ -
Total $0.00

Use the Quantity box to select product first.

Accessories

Grouped product items
Cat Code	Description	Density	Material	Temperature Range	Viscosity	Price	Qty
6164 6164	10L SilOil Heat Transfer Fluid, M40.165/220.10	1.0g/cm³ (at 20°C)	Low-Viscosity Silicone Fluid	-40°C to 165°C OR -40°C to 220°C when closed	10mm²/s (kinematic at 25°C)	$1,870.00	+ -
6166 6166	10L SilOil Heat Transfer Fluid, M60.115/200.05	0.92g/cm³ (at 20°C)	Low-Viscosity Silicone Fluid	-40°C to 115°C OR -60°C to 200°C when closed	5mm²/s (kinematic at 25°C)	$1,870.00	+ -
6158 6158	10L SilOil Heat Transfer Fluid, P20.275.50	0.96g/cm³ (at 20°C)	Low-Viscosity Silicon Oil	20°C to 275°C	50mm²/s (kinematic at 25°C)	$1,870.00	+ -
6479 6479	10L DW-Therm Heat Transfer Fluid, M90.200.02	0.879g/cm³ (at 20°C)	Mixture of Isomeric Triethoxysilanes	-90°C to 170°C OR -90°C to 200°C with Inertgas	2mm²/s (kinematic at 25°C)	$2,430.00	+ -
Total $0.00

Use the Quantity box to select product first.

The Huber Unistat T Series Dynamic Temperature Control Systems uses unique thermodynamic properties and a range of functions to meet any demand in the laboratory. All units contain a Pilot ONE controller for accurate and efficient temperature usage. All parts of the units are the latest technology used for optimal temperature transfer.

Description

Overview

In Stock!

Lead Times May Vary

The Huber Unistat T Series Dynamic Temperature Control Systems has distinctive technology that impresses as a result of economic operation with reduced operating costs and efficient energy management. Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. These units are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation.

Specifications:

Precise and reproducible temperature control results
Wide temperature ranges with no fluid change
Pilot ONE controller with touch screen navigation menu
Adaptive temperature control
Efficient circulation pump
RS232, ethernet, and 2 USB interfaces
Effecient operation saves working time adn operating costs
Proven functionality for the process idnustry
E-grade "Professional" included

Huber Heat Transfer Fluids have the best thermodynamic and environmentally friendly characteristics. The choice of the correct fluid is decisive for efficient heat transfer, guarantees reliable and safe operation, and optimum temperature control. Please view our compatibility chart under the "Downloads" tab when selecting your fluid in checkout. For more information, please contact us.

Specifications

SKU	Pump Max	Power Requirement	Controller	Safety
1003.0031.01	0.9 bar	400 V/60 Hz	Pilot ONE	III/FL
1003.0033.01	0.9 bar	400 V/60 Hz	Pilot ONE	III/FL
1003.0035.01	0.9 bar	400 V/60 Hz	Pilot ONE	III/FL
1083.0022.01	3.5 bar	400 V/60 Hz	Pilot ONE	III/FL
1083.0020.01	1.5 bar	400 V/50 Hz	Pilot ONE	III/FL
1004.0058.01	2.5 bar	380-400 V/60 Hz	Pilot ONE	III/FL
1024.0025.01	2.5 bar	360-460 V/60 Hz	Pilot ONE	III/FL
1038.0006.01	0.9 bar	400 V/60 Hz	Pilot ONE	III/FL

Accessory Specifications

SKU	Capacity	Quantity	Color
6164	10 L	Each	Clear
6166	10 L	Each	Clear
6158	10 L	Each	Clear
6479	10 L	Each	Yellow

Downloads

	Unistat T305 Specifications	Download
	Unistat T305 HT Specifications	Download
	Unistat T320 Specifications	Download
	Unistat T320 Specifications	Download
	Unistat T320W HT Specifications	Download
	Unistat T330W HT Specs	Download
	Unistat T340W HT Specifications	Download
	Unistat T402 Specifications	Download
	Huber Thermal Fluids Compatibility Chart	Download

Additional Info

SKU	Width	Depth	Height
1003.0031.01	16.7322925 in	9.84 in	24.8425331 in
1003.0033.01	16.7322925 in	9.84 in	24.8425331 in
1003.0035.01	16.7322925 in	9.84 in	24.8425331 in
1083.0022.01	21.259854 in	26.69 in	28.3071019 in
1083.0020.01	21.259854 in	26.69 in	28.3071019 in
1004.0058.01	21.259854 in	26.69 in	46.2204974 in
1024.0025.01	31.49608 in	41.73 in	62.99216 in
1038.0006.01	19.8819005 in	15.75 in	30.1181265 in

Starting at $25,650.00

Select a product below and add it to your cart to request a quote.

Unistat T Series Dynamic Temperature Control Systems
