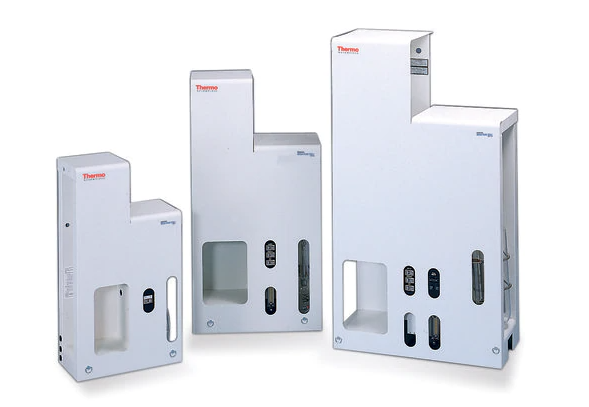

Barnstead™ Megapure™ Glass Stills

Obtain high purity water from distillation using Thermo Scientific™ Barnstead™ Mega-Pure™ Glass Stills, constructed of non-leaching components. These glass stills effectively remove inorganic solids, organics with boiling points higher than water, bacteria and pyrogens. Available in five production capacities, units are easily wall- or bench-mounted. Maximum purity is provided from the vertical condenser design. Gain easy access for cleaning with the quick release cover.

Features:

• Contact with only glass, quartz and PTFE components ensures ultimate purity and eliminates cross-contamination
• Vertical condenser design provides maximum purity
• High temperature cutoff shuts down the still if the temperature is too high, preventing heating element burnout
• Quick-release cover provides easy cleaning access
• Connection to optional Automatic Connection System (ACS) assures a 24-hour automatic system
• Stills include feedwater solenoid valve for automatic operation
• Stills produce water with a resistivity of 1 to 10MΩ-cm, depending on feedwater quality

MP-1:

• Compact, easy-to-use 1L/hr. glass still
• Available with or without a storage bottle

MP-3A, MP-6A and MP-11A:

• For larger volume demands with storage and options (3.4 to 13L/hr.)

MP-12A:

• Features built-in deionizer for pretreated feed to boiler
• Distillate cooler allows product water to be used as it is produced, cooling it from 85°C (185°F) to about 55°C (131°F) for ease of handling
• No need to wait for cooling

Ordering Information:

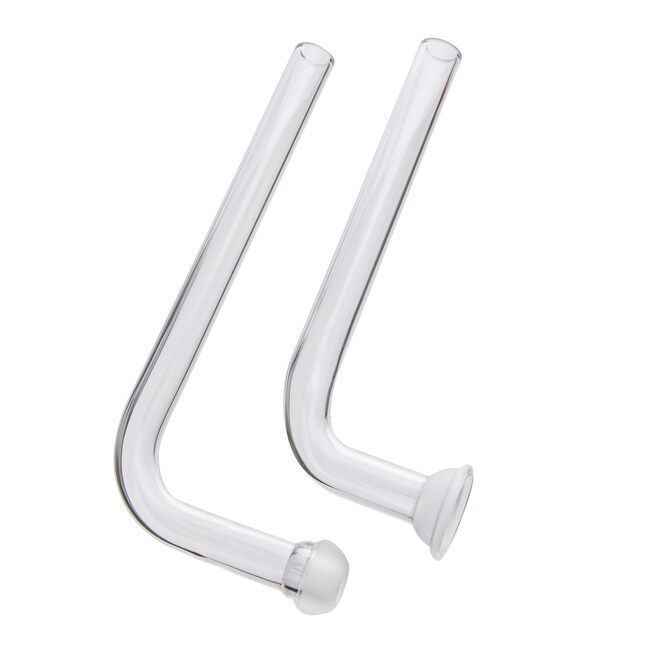

• Optional accessories include single or dual cartridge deionizers (D440046 or D440066), adapter kits (440376 or 440375), and replacement cartridges (D400377, D400499 or D440265)

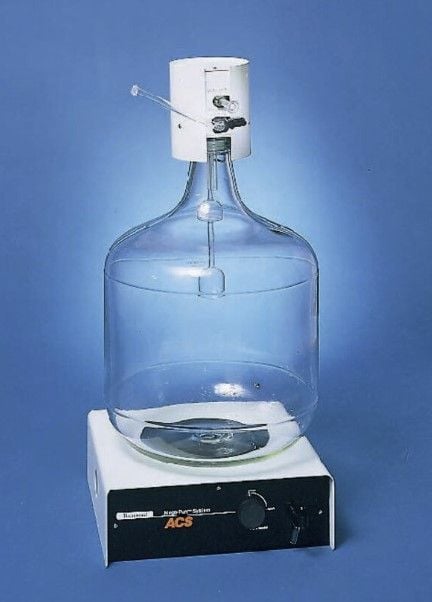

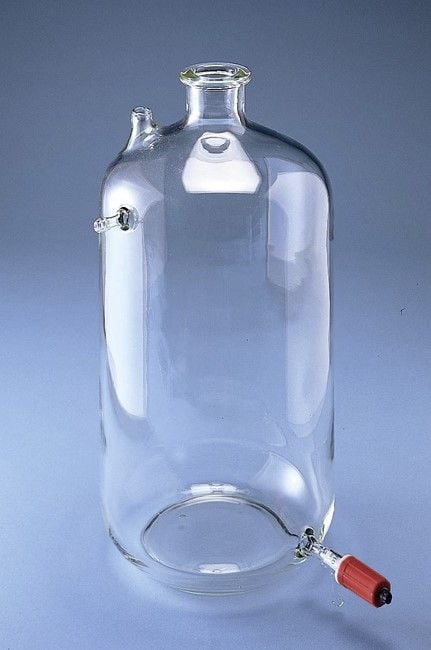

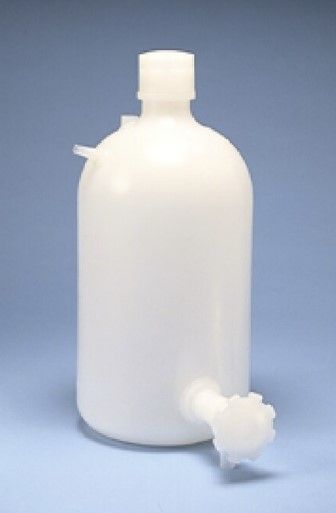

• Storage options include bottles (413964, 410535, 413934, 410164), or Automated Collection System (B440704)
• All sold separately; contact your sales representative for details

Includes:

• Feed water solenoid valve for automatic operation

Requires:

• Water supply and storage reservoir
• Dual Solenoid required if using pretreated (DI, distilled, RO) feedwater:
• 440236 - for use with MP-1 (240V), MP-3A, MP-6A, and MP-11A
• RY798X2A - for use with MP-1 (120V)
• Deionization Cartridges required for MP-12A:
• D440046 - Single Cartridge Deionizer (D1)
• D440066 - Dual Cartridge Deionizer (D2)

Recommended for:

• Buffer/reagent prep, glassware washing, dishwasher feed

Warranty:

• 1 year parts, 90 days labor

Please Note: This product is not available in all regions. All accessories sold separately. Disclaimer to internal research use restriction: Any restrictions on the purchaser to utilize the product(s) for internal research purposes only does not apply to the product(s) on the web pages associated with this statement.
