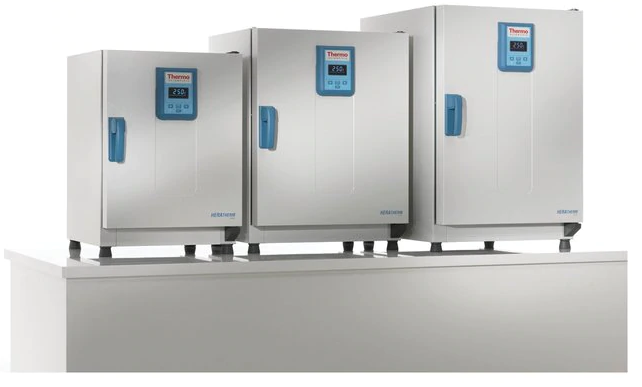

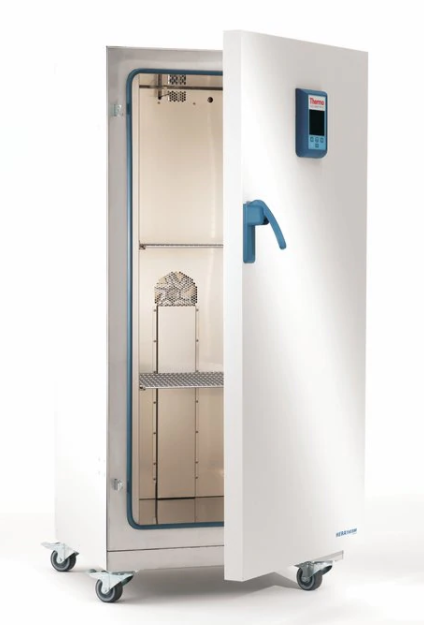

Heratherm™ Mechanical Convection Advanced Protocol Ovens
Manufacturer: Thermo Fisher
Description
The oven’s advanced functionality is centered on its precise control and superior performance. A programmable controller allows you to set up to 10 programs, each with 10 discrete steps, for automated temperature ramps and dwells. You can also fine-tune your drying and heating process with an adjustable fan speed and damper position. These ovens provide excellent temperature uniformity of ±3.0°C or better, and a stability of at least ±0.2°C at 150°C. A convenient access port allows for independent data monitoring, and a simple calibration routine ensures temperature accuracy over time. With large capacities up to 731 L and a two-year warranty, this oven is a versatile and dependable powerhouse for your lab.
Features:
- Unsurpassed temperature performance with stability of at least ±0.2°C at 150°C
- Programmable controller allows for temperature ramps and dwells
- Adjustable fan speed for application-related airflow and expedited drying
- High speed for quick recovery and optimal temperature uniformity
- Access port allows for independent data monitoring
- Simple calibration routine ensures temperature accuracy over time
- Available in large capacities up to 731 L
- Backed by a two-year warranty
Disclaimer to internal research use restriction: Any restrictions on the purchaser to utilize the product(s) for internal research purposes only does not apply to the product(s) on the web pages associated with this statement.
| SKU | # of Shelves | Temperature Range | Temperature Stability | Max. # of Shelves | Power Requirement |
|---|---|---|---|---|---|
| 51028124 | 2 Adjustable | 0°C to 330°C | ±1.5°C | 13 Adjustable | 120V, 60 Hz, 1440 W, 12 A |
| 51029344 | 2 Adjustable | 0°C to 330°C | ±3.1°C | 39 Adjustable | 208/240V, 60 Hz, 3000 W, 14.5 A |
| 51029343 | 2 Adjustable | 0°C to 330°C | ±3.1°C | 39 Adjustable | 208/240V, 60 Hz, 3000 W, 14.5 A |
| 51029330 | 2 Adjustable | 0°C to 330°C | ±2.1°C | 39 Adjustable | 208/240V, 60 Hz, 3000 W, 13.5 A |
| 51029329 | 2 Adjustable | 0°C to 330°C | ±2.1°C | 39 Adjustable | 208/240V, 60 Hz, 3000 W, 13.5 A |
| 51028125 | 2 Adjustable | 0°C to 330°C | ±1.3°C | 16 Adjustable | 208/240V, 60 Hz, 3360 W, 14 A |
| 51029332 | 2 Adjustable | 0°C to 330°C | ±2.1°C | 39 Adjustable | 230V, 50/60 Hz, 3000 W, 13 A |
| 51029348 | 2 Adjustable | Ambient 10°C to 250°C | ±3.1°C | 39 Adjustable | 400V, 50/60 Hz, 5750 W, 12 A |
|
|
Heratherm™ Heating and Drying Oven Manual | Download |
|
|
Heratherm™ Heating and Drying Oven Specification Sheet | Download |
| SKU | Controller | Warranty | Internal Dimensions | External Dimensions | Plug Type | Display |
|---|---|---|---|---|---|---|
| 51028124 | Programmable Microprocessor | 2 Year | 13.5 in x 13.9 in x 20.0 in | 22.2 in x 20.9 in x 28.3 in | Nema 5-15 | Vacuum Fluorescent Display |
| 51029344 | Programmable Microprocessor | 2 Year | 21.5 in x 39.5 in x 52.6 in | 30.3 in x 49.7 in x 60.8 in | Nema 6-20 | Vacuum Fluorescent Display |
| 51029343 | Programmable Microprocessor | 2 Year | 21.5 in x 39.5 in x 52.6 in | 30.3 in x 49.7 in x 60.8 in | Nema 6-20 | Vacuum Fluorescent Display |
| 51029330 | Programmable Microprocessor | 2 Year | 21.5 in x 21.4 in x 52.6 in | 30.3 in x 30.6 in x 60.8 in | Nema 6-20 | Vacuum Fluorescent Display |
| 51029329 | Programmable Microprocessor | 2 Year | 21.5 in x 21.4 in x 52.6 in | 30.3 in x 30.6 in x 60.8 in | Nema 6-20 | Vacuum Fluorescent Display |
| 51028125 | Programmable Microprocessor | 2 Year | 13.5 in x 18.3 in x 23.9 in | 22.2 in x 25.2 in x 32.3 in | Nema 6-20 | Vacuum Fluorescent Display |
| 51029332 | Programmable Microprocessor | 2 Year | 21.5 in x 21.4 in x 52.6 in | 30.3 in x 30.6 in x 60.8 in | Country Specific | Vacuum Fluorescent Display |
| 51029348 | Programmable Microprocessor | 2 Year | 21.5 in x 39.5 in x 52.6 in | 30.3 in x 49.7 in x 60.8 in | Country Specific | Vacuum Fluorescent Display |
Starting at from $4,810.00 Sale $3,548.00
