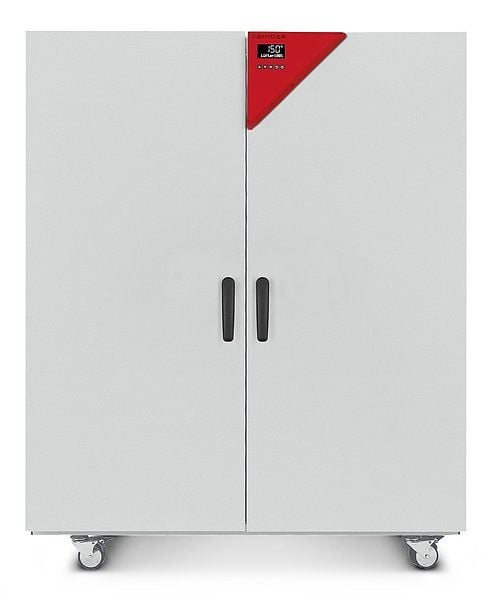

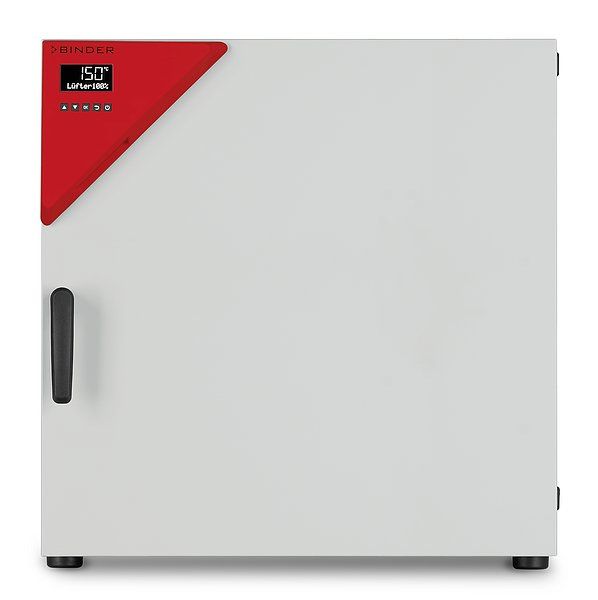

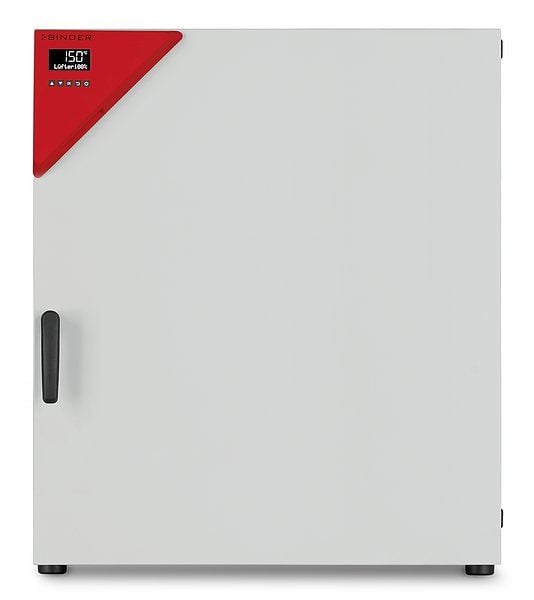

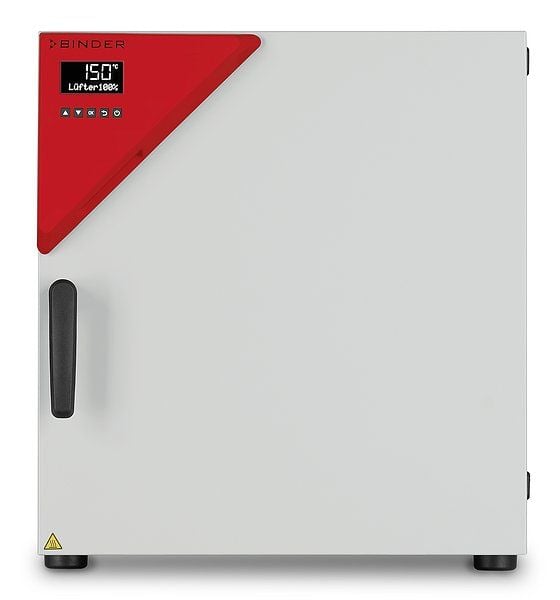

FD Series Avantgarde Drying and Heating Chambers
Manufacturer: BINDER Inc.
The BINDER Series FD Avantgarde Line Drying and Heating Chambers with Forced Convection are renowned for their exceptional reliability in any laboratory and application. These units ensure that the appropriate amount of heat is distributed to the corresponding specimen. These units have a fully homogeneous temperature distribution, a powerful fan, and quick dynamics that allow them to be the best in the line.
Description
In Stock!
Lead Times May Vary
The BINDER Series FD Advantgarde Line Drying and Heating Chambers with Forced Convection are always used when fast drying and sterilization is required. Thanks to its fully homogeneous temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time.
Features:
- Temperature range: +10°C above ambient temperature to +300°C
- High temperature accuracy thanks to APT.line™ technology
- Forced convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Units up to 115L are stackable
- Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
- Ergonomic handle design
- USB port for recording data
Benefits:
- Best energy efficiency on the market
- Excellent temporal and spatial temperature accuracy
- USB connection for recording data
- Temperature range up to +300°C
| SKU | Temperature Range | Temperature Fluctuation | Temperature Variation | Air Change |
|---|---|---|---|---|
| 9010-0303 | 300°C +10°C | ± 0.3 at 150°C | ± 1.7 at 150°C | 80 x/h at 100°C |
| 9010-0304 | 300°C +10°C | ± 0.3 at 150°C | ± 1.7 at 150°C | 80 x/h at 100°C |
| 9010-0305 | 300°C +10°C | ± 0.3 at 150°C | ± 1.7 at 150°C | 32 x/h at 100°C |
| 9010-0306 | 300°C +10°C | ± 0.3 at 150°C | ± 1.7 at 150°C | 32 x/h at 100°C |
| 9010-0310 | 300°C +10°C | ± 0.4 at 150°C | ± 1.9 at 150°C | 9 x/h at 100°C |
| 9010-0309 | 300°C +10°C | ± 0.4 at 150°C | ± 1.9 at 150°C | 9 x/h at 100°C |
| 9010-0311 | 300°C +12°C | ± 0.6 at 150°C | ± 2.5 at 150°C | 5 x/h at 100°C |
| SKU | # of Shelves | Depth | Height | Width | Power Requirement |
|---|---|---|---|---|---|
| 9010-0303 | 2 std./4 max. | 22.26 in | 24.63 in | 22.06 in | 230V, 50/60Hz |
| 9010-0304 | 2 std./4 max. | 22.26 in | 24.63 in | 22.06 in | 120V, 60Hz |
| 9010-0305 | 2 std./5 max. | 23.84 in | 28.96 in | 27.97 in | 230V, 50/60Hz |
| 9010-0306 | 2 std./5 max. | 23.84 in | 28.96 in | 27.97 in | 120V, 60Hz |
| 9010-0310 | 2 std./8 max. | 32.5 in | 37.04 in | 31.91 in | 240V, 60Hz |
| 9010-0309 | 2 std./8 max. | 32.5 in | 37.04 in | 31.91 in | 230V, 50/60Hz |
| 9010-0311 | 2 std./16 max. | 34.28 in | 62.6 in | 45.9 in | 400V, 50/60Hz |
The BINDER Series FD Avantgarde Line Drying and Heating Chambers with Forced Convection are renowned for their exceptional reliability in any laboratory and application. These units ensure that the appropriate amount of heat is distributed to the corresponding specimen. These units have a fully homogeneous temperature distribution, a powerful fan, and quick dynamics that allow them to be the best in the line.
Starting at $2,645.00
Request A Quote
![FD Series Avantgarde Drying and Heating Chambers]()
Select a product below and add it to your cart to request a quote.
