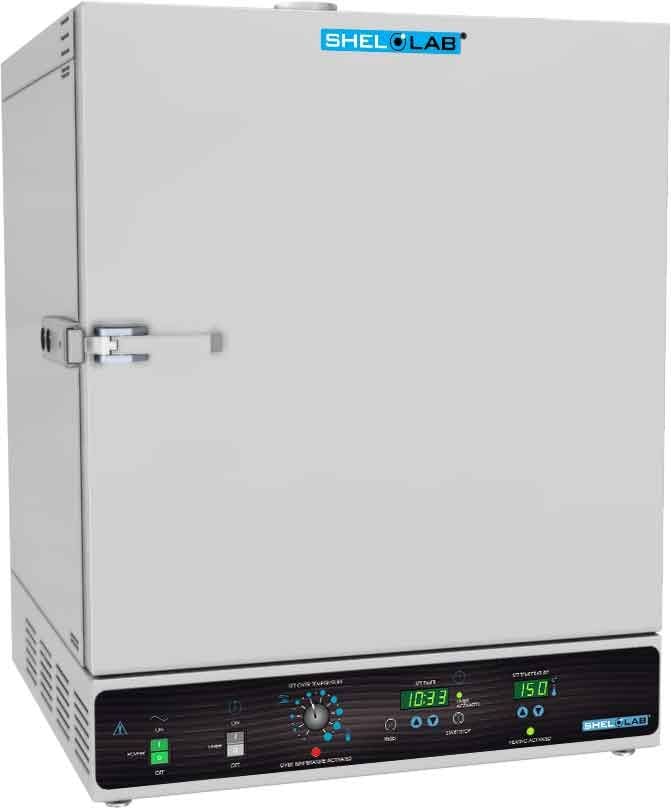

Gravity Convection Laboratory Oven
Manufacturer: Sheldon Manufacturing
Starting at from $3,395.14 Sale $3,225.38
Select a product below and add it to your cart to request a quote.
Gravity Convection Laboratory Oven
Description
Model | SGO1 | SGO3 | SGO5 |
Interior Volume, Nominal | 1.4 cu ft (39.4 L) | 3.0 cu ft (85 L) | 4.9 cu ft (138 L) |
---|---|---|---|
Interior Dimensions, W x D x H | 12.1 x 13.7 x 14.5" (307 x 349 x 368 mm) | 16.5 x 19.5 x 16.2" (419 x 495 x 412 mm) | 21 x 19.4 x 20.7" (533 x 494 x 527 mm) |
Exterior Dimensions, W x D x H | 22.7 x 23.5 x 31.5" (577 x 596 x 800 mm) | 26.9 x 28.6 x 34" (684 x 727 x 840 mm) | 31.4 x 28.1 x 38.1" (798 x 714 x 986 mm) |
Interior Construction | 430 series stainless steel | 430 series stainless steel | 430 series stainless steel |
Exterior Construction | 20 gauge steel, powder coated | 20 gauge steel, powder coated | 20 gauge steel, powder coated |
Shelves | 2 (max of 6) | 3 (max of 7) | 3 (max of 9) |
Maximum Weight per Shelf | 50 lbs (22.6 kg) | 50 lbs (22.6 kg) | 50 lbs (22.6 kg) |
Permitted Total Load | 100 lbs (45.3 kg) | 200 lbs (91 kg) | 200 lbs (91 kg) |
Electrical | 50/60Hz, AC | 50/60Hz, AC | 50/60Hz, AC |
Voltage | 110 to 120V | 110 to 120V | 110 to 120V |
Full Load Amps | 12 | 14 | 14 |
Nominal Power (watts @ 150°C) | 864 | 1008 | 1008 |
NEMA Plug Supplied | 5-15P | 5-15P | 5-15P |
Energy Consumption at 80°C (kWh/day) | 11.7 | 13.6 | 13.6 |
Energy Consumption at 150°C (kWh/day) | 20.1 | 23.4 | 23.4 |
Energy Consumption at 306°C (kWh/day) | 31.8 | 37.1 | 37.1 |
Temperature Uniformity at 80°C | 2.5 | 2.5 | 2.5 |
Temperature Uniformity at 150°C | 3.5 | 3.5 | 3.5 |
Temperature Uniformity at 306°C | 4 | 4 | 4.5 |
Air Changes/Hr at 80°C | 330 | 225 | 180 |
Velocity (cfm) | 5.6 | 11.3 | 15.2 |
Brochure for Ovens, Gravity Convection | Download |
