Ecocell® Natural Gravity Convection Ovens
Manufacturer: BMT USA
The BMT USA Ecocell® Natural Gravity Convection Ovens are ideal for drying sensitive and industrial materials, warming bedding and blankets, sterilizing glassware, and more. These units utilize gentle airflow with low vibration for even temperature distribution and uniformity. They feature the ECO microprocessor controller with fuzzy logic and a 3-inch LCD display. These controllers have nine programs with two segments each, up to 99 cycles. For easy cleaning, the interior has rounded corners and a removable chamber. These natural convection ovens are CE, UL, and CSA listed.
Description
In Stock!
Lead Times May Vary
The Ecocell® Gravity Convection Oven produces gentle air flow with low vibration and even temperature distribution throughout the chamber. It is an ideal solution for carefully drying sensitive materials, including light powders and compounds, while also being suitable for industrial materials testing applications, warming bedding and blankets, and sterilizing lab glassware and media.
Features:
- ECO standard microprocessor controller
- Fuzzy logic and 3-inch digital LCD display
- Real-time programming and cycling
- 9 programs / 2 segments each for varying loads and parameters up to 99 cycles
- Digital safety thermostat
- Delayed heating start and stop function
- Acoustic and digital alarms
- Keypad lock
- USB and RS 232 port
- Pharmaceutical grade AISI 304 stainless steel chamber
- Removable inner chamber
- Double wall chamber construction with 5 layers of insulation for more uniform internal chamber conditions
- Rounded interior corners
- Patented 4-point closing system that seals the door to the chamber gasket and enables hands-free opening and closing
- Molded brackets into the inner chamber walls
Certifications:
- CE, UL, and CSA listed
| SKU | Shelf Type | Model # | Temperature Uniformity | Hinge | Door Type | Heat-Up Time | Interior Material |
|---|---|---|---|---|---|---|---|
| MC 000200 | Adjustable | Ecocell ECO 22 | ±1.0°C | Right | Solid Swing Door | 54 min @ 230V | AISI 304 Stainless Steel |

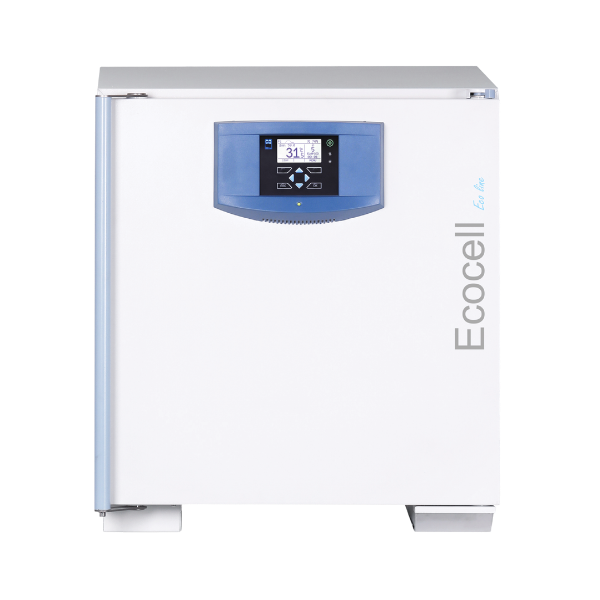

| MC 000201 | Adjustable | Ecocell ECO 55 | ±0.3°C | Right | Solid Swing Door | 59 min @ 230V | AISI 304 Stainless Steel |

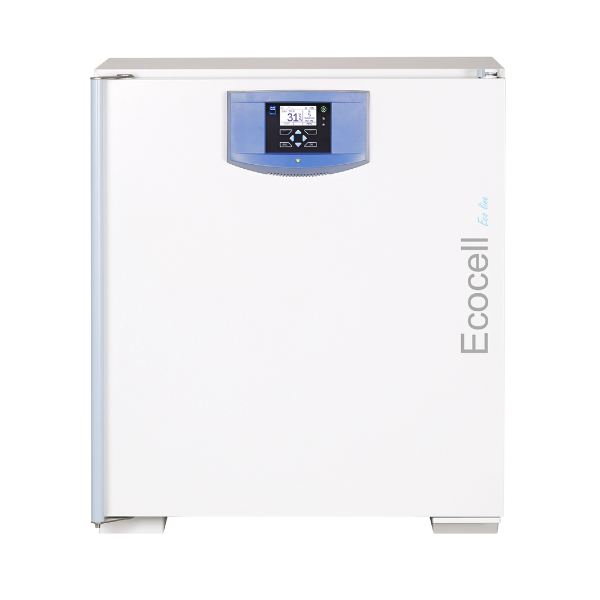

| MC 000202 | Adjustable | Ecocell ECO 111 | ±≤0.8°C | Right | Solid Swing Door | 60 min @ 230V | AISI 304 Stainless Steel |

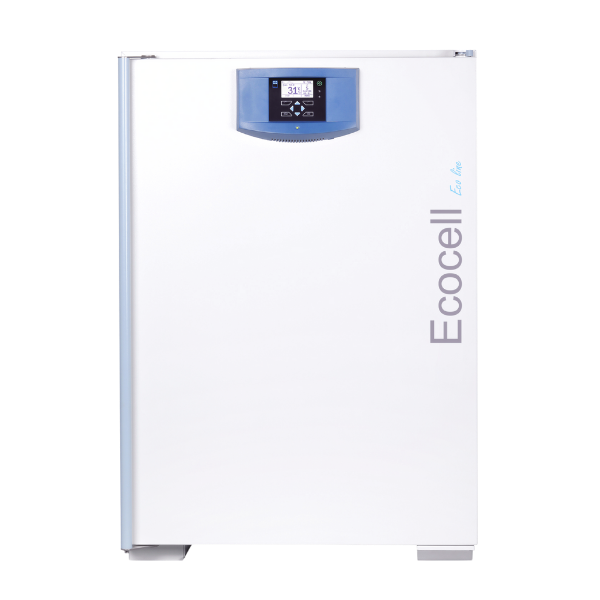

| MC 000203 | Adjustable | Ecocell ECO 222 | ±≤0.8°C | Right | Solid Swing Door | 99 min @ 230V | AISI 304 Stainless Steel |

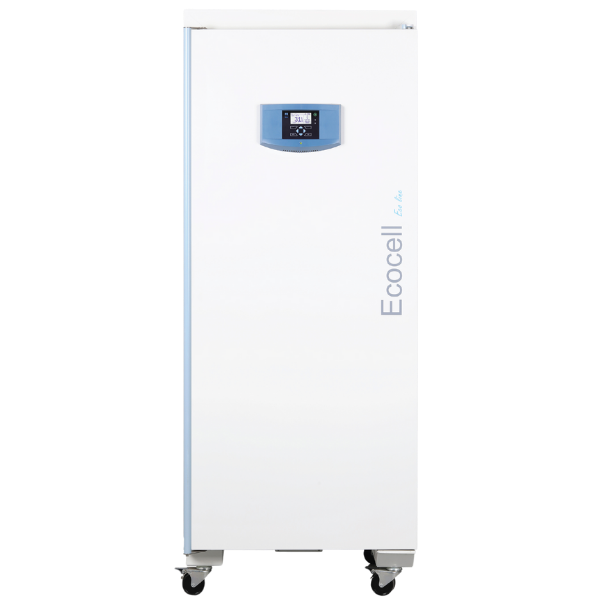

| MC 000204 | Adjustable | Ecocell ECO 404 | ±≤1.0°C | Right | Solid Swing Door | 85 min @ 230V | AISI 304 Stainless Steel |

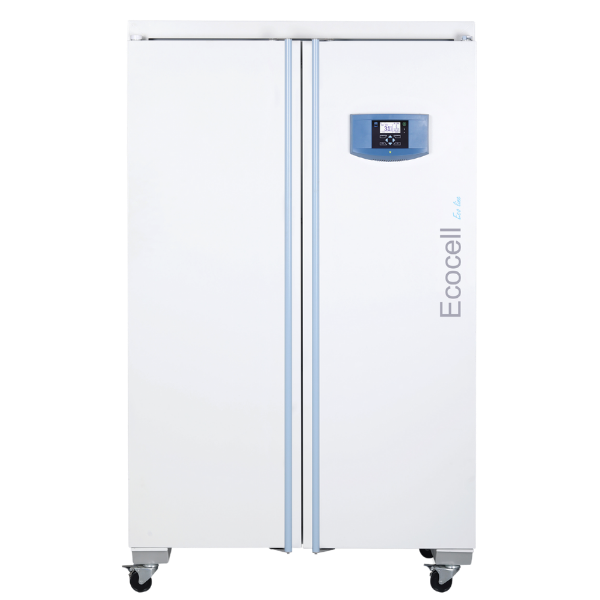

| MC 000205 | Adjustable | Ecocell ECO 707 | ±≤1.0°C | Left and Right | Dual Solid Swing Door | 95 min @ 230V | AISI 304 Stainless Steel |
|
Ecocell Natural Gravity Convection Ovens Data Sheet | Download |
| SKU | Max. # of Shelves | Shelf Capacity | Electrical Information | Dimensions | Internal Dimensions | Display |
|---|---|---|---|---|---|---|
| MC 000200 | 4 Shelves | 22 lbs | 115V, 50/60Hz, 8A, 920W | 22.0 in x 16.0 in x 24.0 in | 13.8 in x 9.4 in x 11.8 in | Digital |
| MC 000201 | 4 Shelves | 44 lbs | 115V, 50/60Hz, 10.4A, 1196W | 26.8 in x 24.4 in x 26.8 in | 15.4 in x 14.6 in x 13.5 in | Digital |
| MC 000202 | 7 Shelves | 44 lbs | 115V, 50/60Hz, 15.6A, 1806W | 29.9 in x 26.8 in x 29.9 in | 21.3 in x 14.6 in x 20.9 in | Digital |
| MC 000203 | 10 Shelves | 66 lbs | 115V, 50/60Hz, 15.6A, 1806W | 32.7 in x 29.9 in x 42.9 in | 21.3 in x 20.5 in x 29.9 in | Digital |
| MC 000204 | 19 Shelves | 66 lbs | 230V, 50/60Hz, 15.7A, 3611W | 31.1 in x 29.9 in x 75.2 in | 21.3 in x 20.5 in x 55.7 in | Digital |
| MC 000205 | 19 Shelves | 110 lbs | 230V, 50/60Hz, 13.6A, 3128W | 45.7 in x 31.1 in x 75.2 in | 37.0 in x 20.5 in x 55.7 in | Digital |
The BMT USA Ecocell® Natural Gravity Convection Ovens are ideal for drying sensitive and industrial materials, warming bedding and blankets, sterilizing glassware, and more. These units utilize gentle airflow with low vibration for even temperature distribution and uniformity. They feature the ECO microprocessor controller with fuzzy logic and a 3-inch LCD display. These controllers have nine programs with two segments each, up to 99 cycles. For easy cleaning, the interior has rounded corners and a removable chamber. These natural convection ovens are CE, UL, and CSA listed.
Starting at $2,504.02
Request A Quote

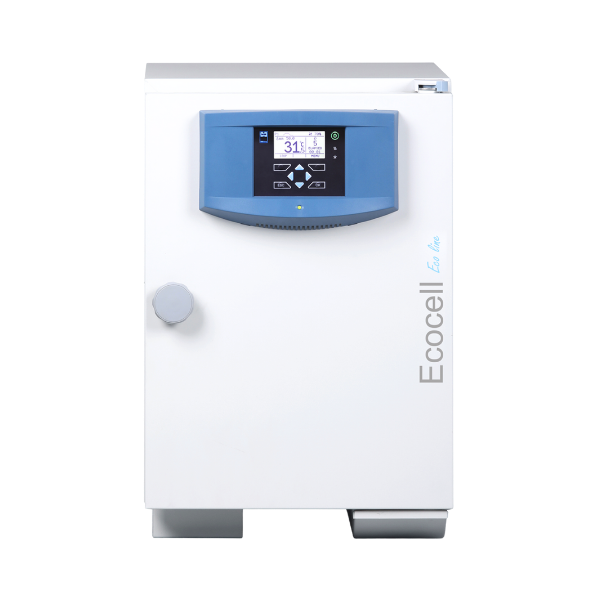

![BMT USA 22 L Ecocell Natural Gravity Convection Oven, 115V]()
Select a product below and add it to your cart to request a quote.
