VDC Cubic Vacuum Desiccators

Name: VDC Cubic Vacuum Desiccators
Brand: JeioTech
SKU: AAAD4001-GROUP

Manufacturer: JeioTech

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Capacity	Color	Price	Qty

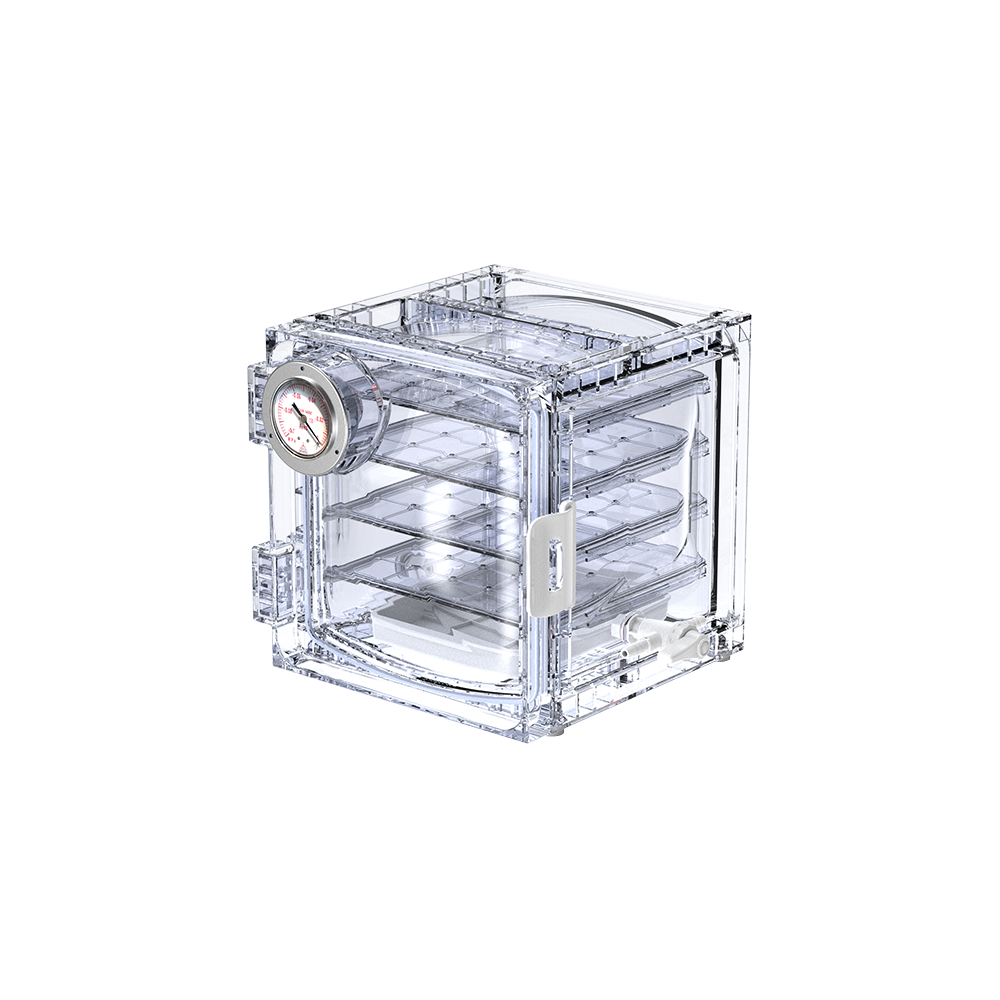

AAAD4001 AAAD4001	11 L VDC-11 Desiccator	11 L (0.4 cu ft.)	Clear	$1,242.00	+ -

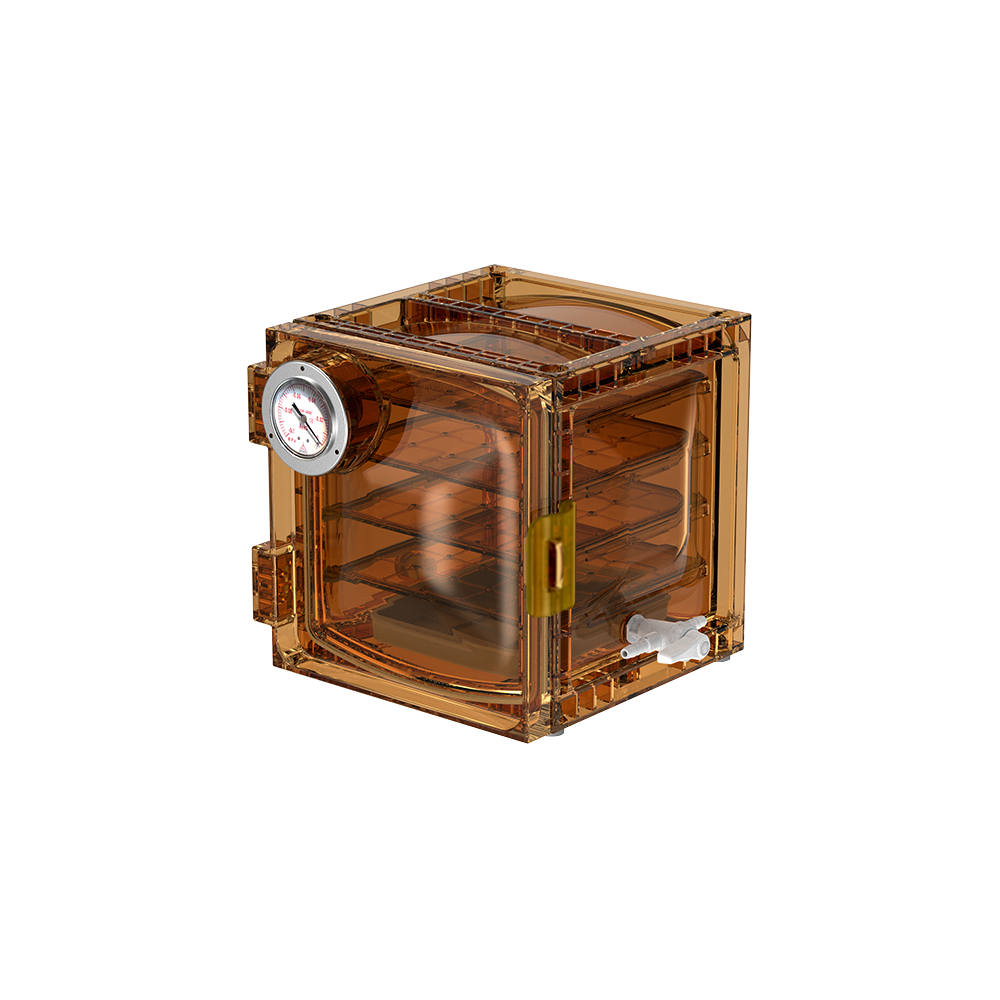

AAAD4101 AAAD4101	11 L VDC-11U Desiccator with UV Block Effect	11 L (0.4 cu ft.)	Amber	$1,317.00	+ -

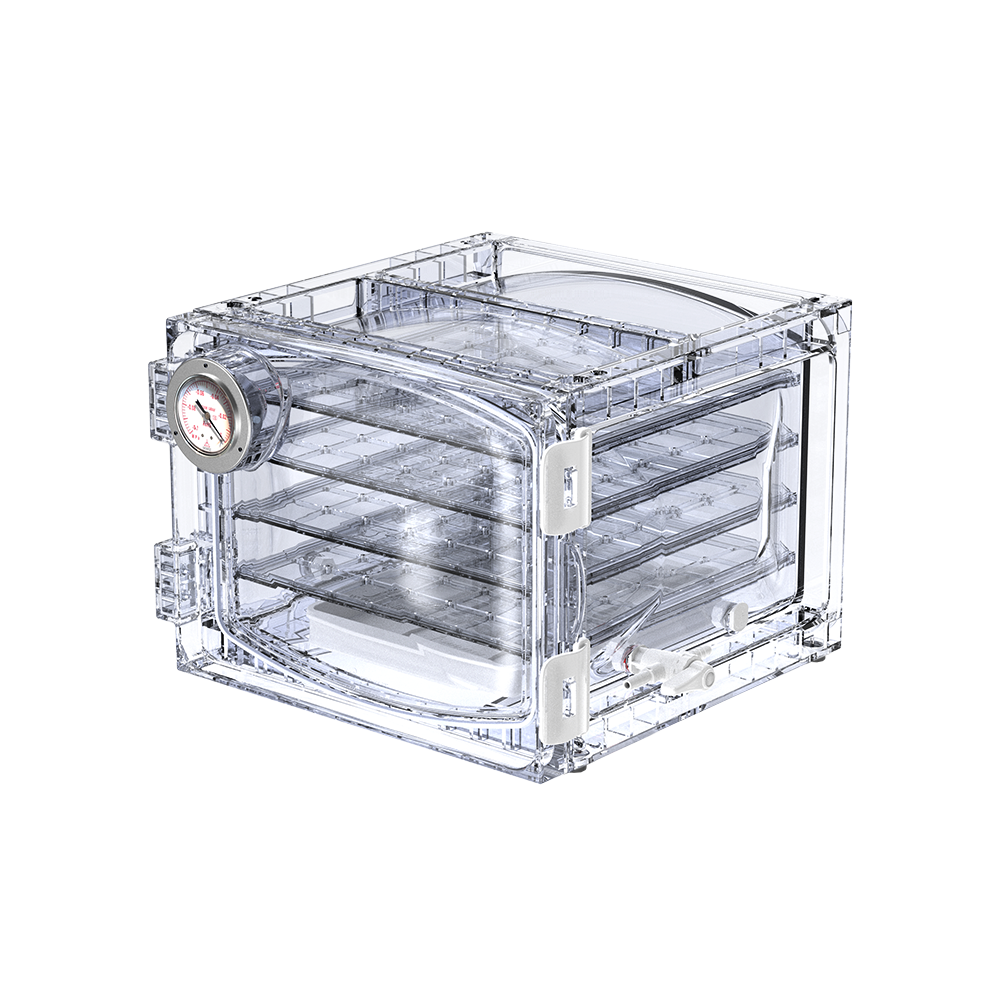

AAAD4021 AAAD4021	23 L VDC-21 Desiccator	23 L (0.8 cu ft.)	Clear	$1,583.00	+ -

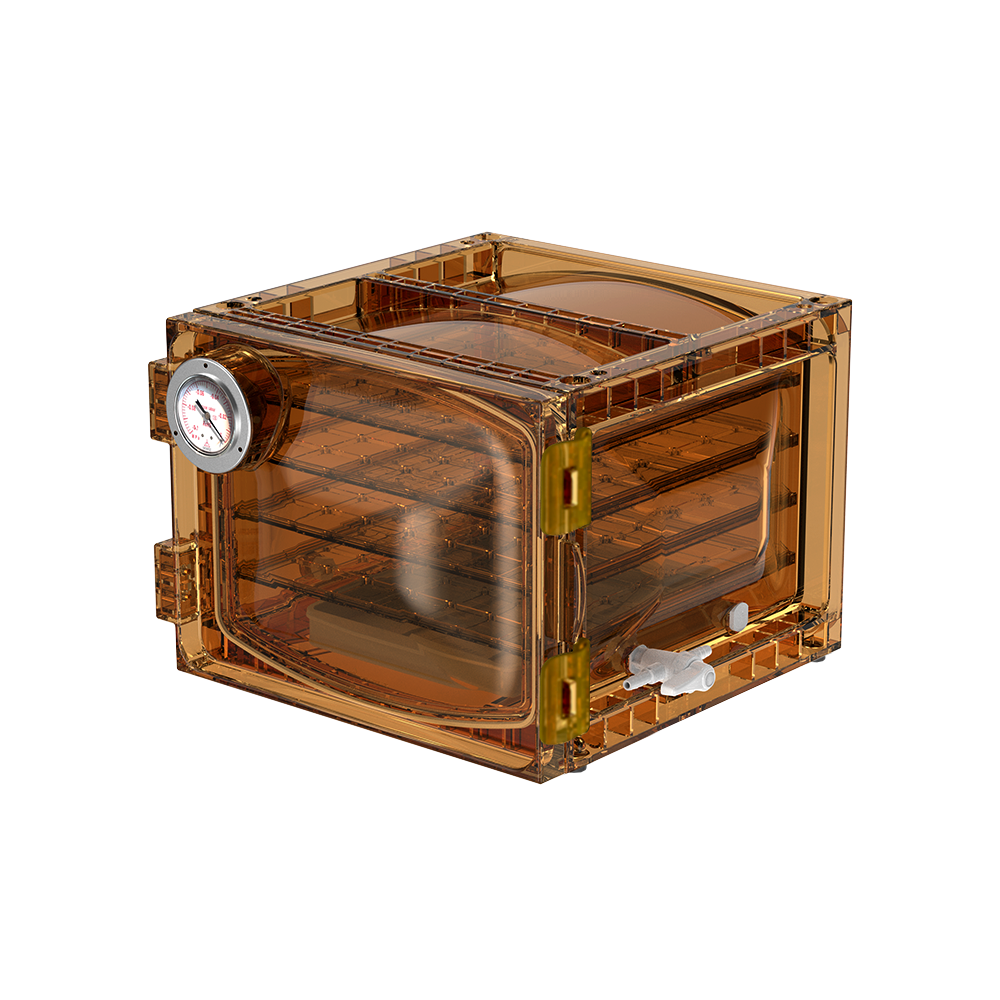

AAAD4121 AAAD4121	23 L VDC-21U Desiccator with UV Block Effect	23 L (0.8 cu ft.)	Amber	$1,627.00	+ -

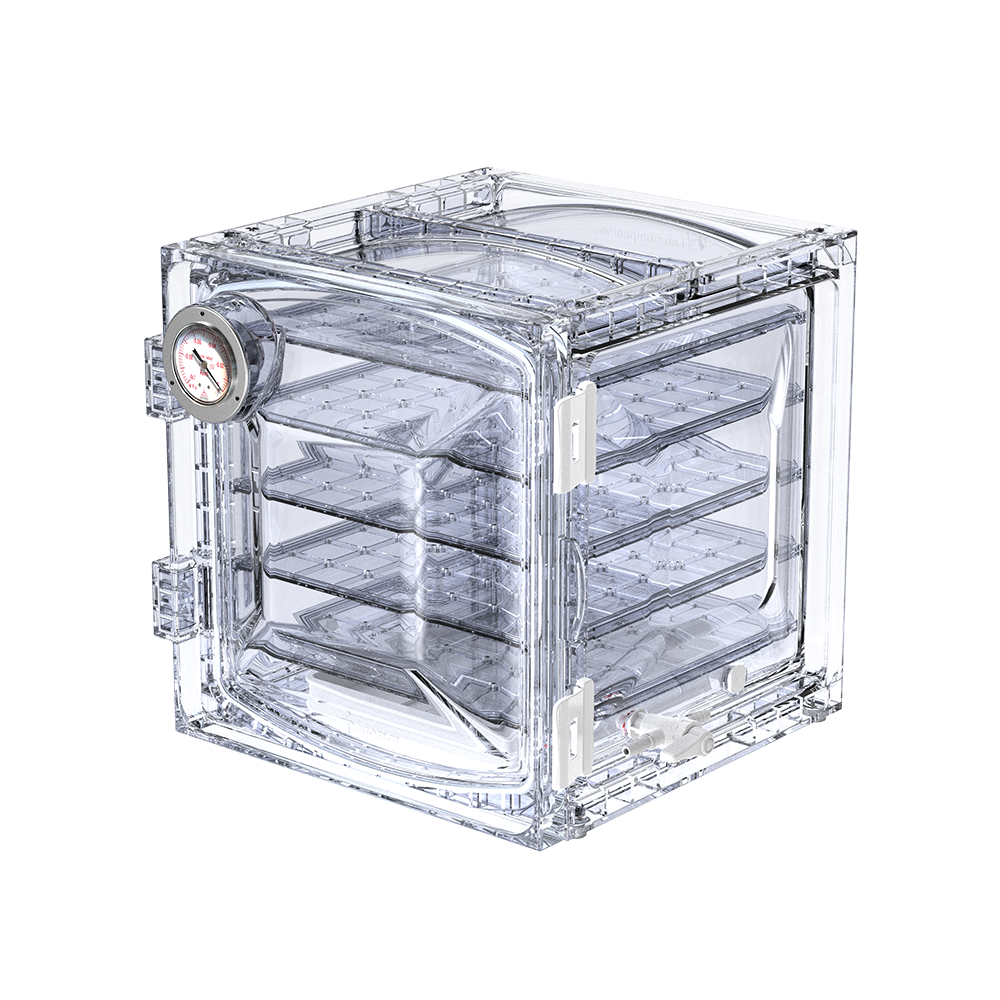

AAAD4011 AAAD4011	35 L VDC-31 Desiccator	35 L (1.2 cu ft.)	Clear	$1,972.00	+ -

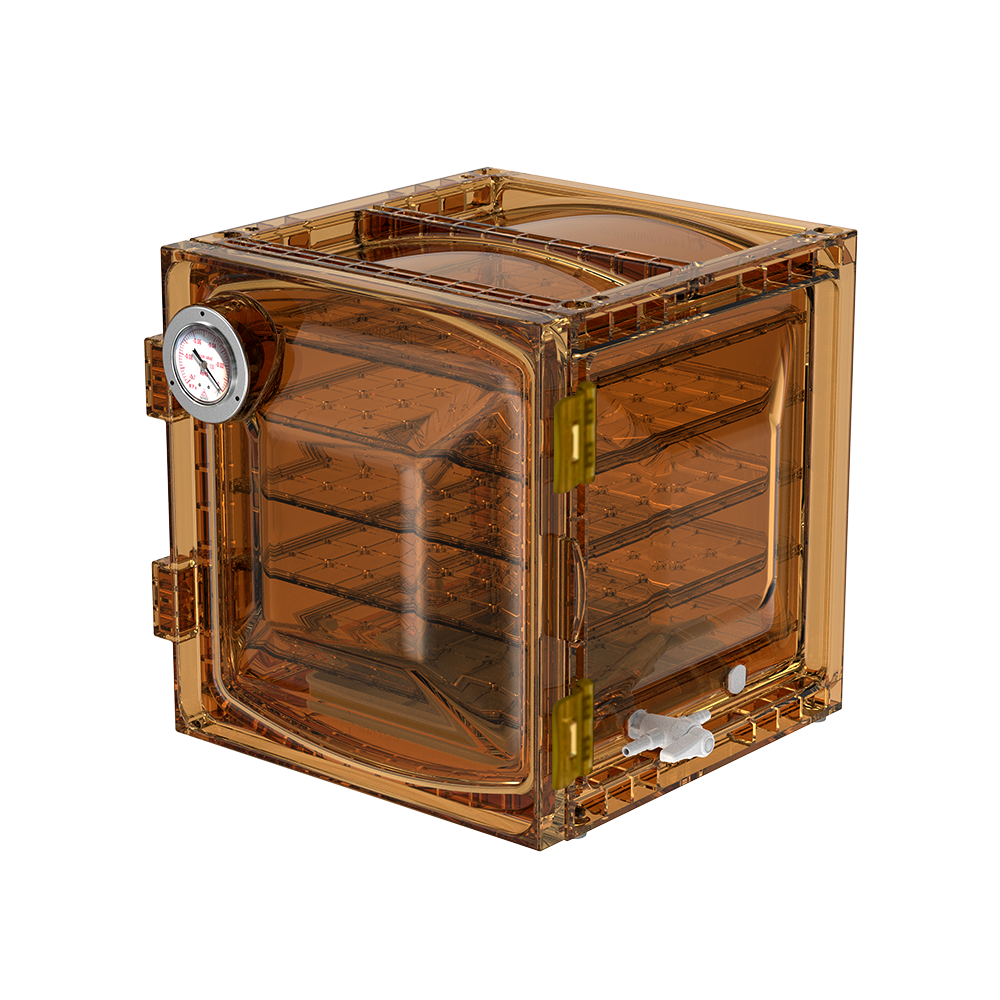

AAAD4111 AAAD4111	35 L VDC-31U Desiccator with UV Block Effect	35 L (1.2 cu ft.)	Amber	$2,065.00	+ -

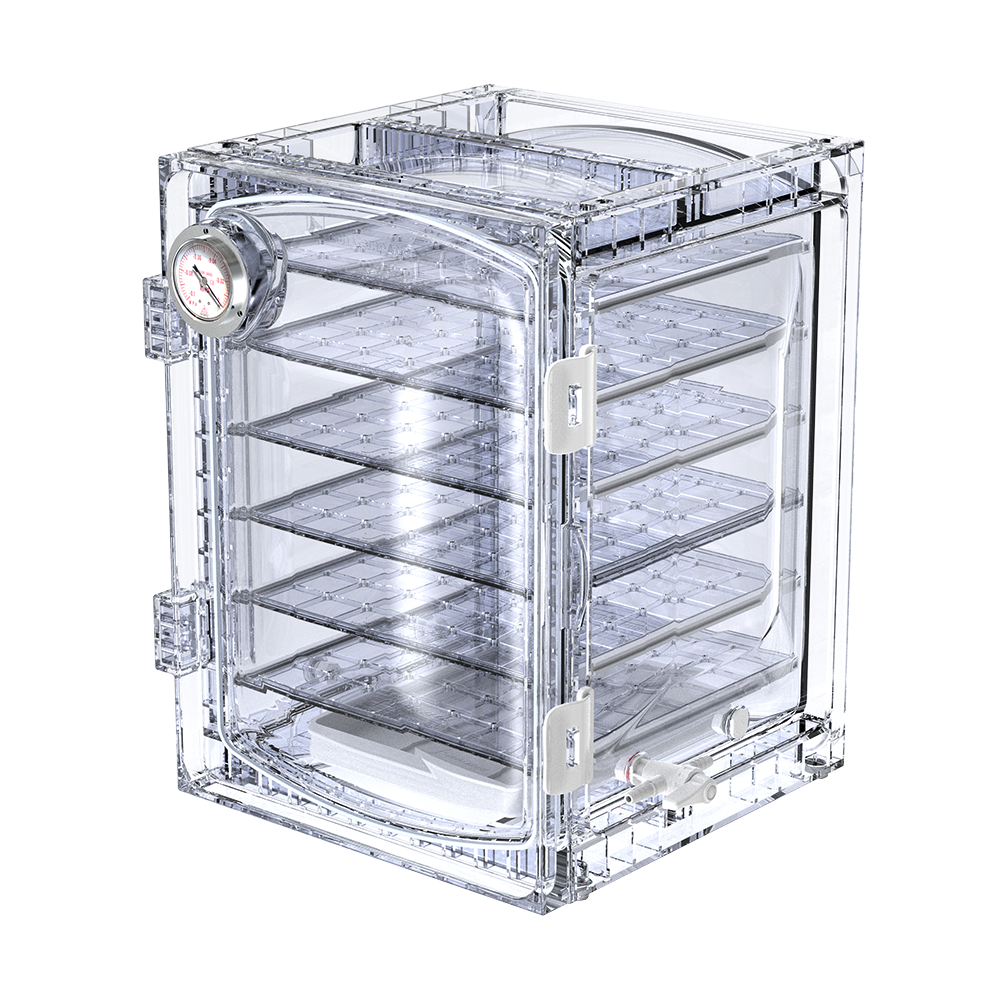

AAAD4031 AAAD4031	45 L VDC-41 Desiccator	45 L (1.6 cu ft.)	Clear	$2,523.00	+ -

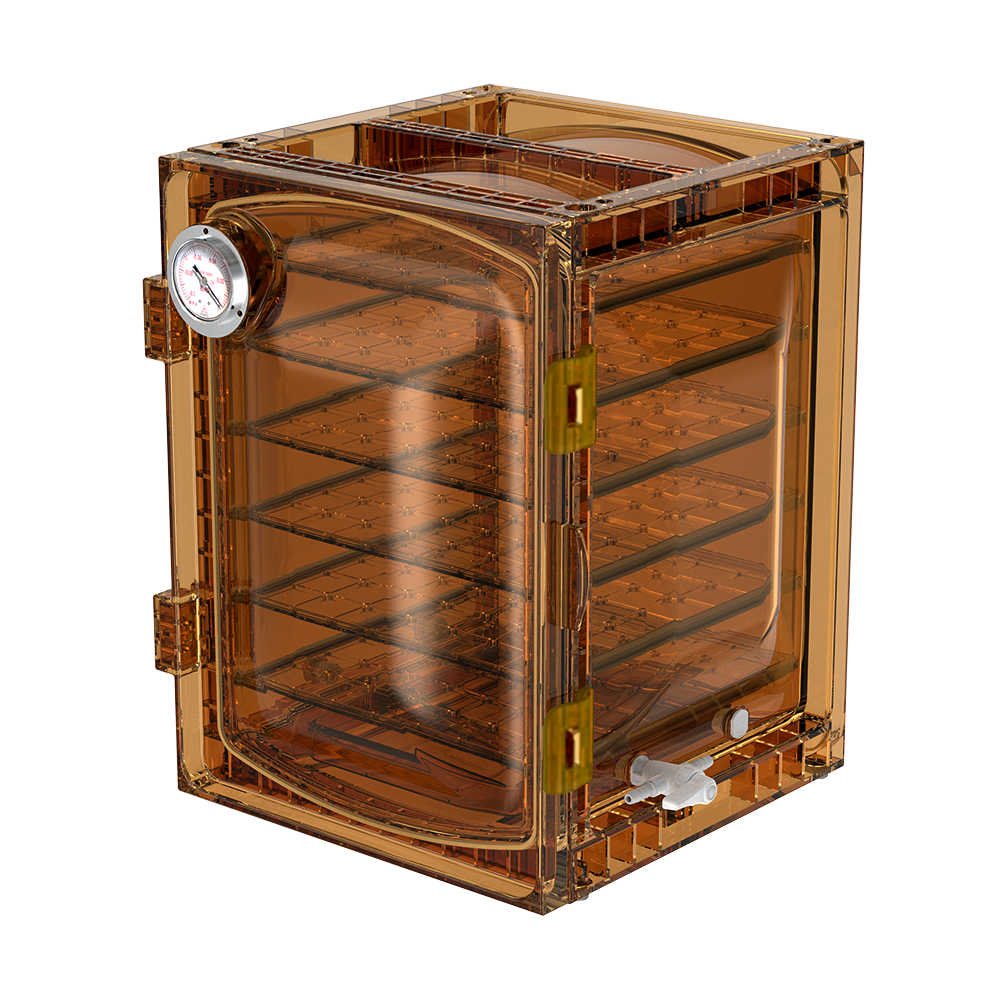

AAAD4131 AAAD4131	45 L VDC-41U Desiccator with UV Block Effect	45 L (1.6 cu ft.)	Amber	$2,650.00	+ -
Total $0.00

Use the Quantity box to select product first.

Maximize your lab's efficiency with the VDC Cubic Vacuum Desiccators from JeioTech, featuring an integrally molded design for superior vacuum retention and durability. These stackable, high-transparency polycarbonate desiccators feature a greaseless seal and a convenient three-way stopcock, ideal for sensitive sample storage and diverse laboratory applications. These units come in different sizes and are available with or without an UV blocking effect.

Description

Overview

In Stock!

Lead Times May Vary

These Vacuum Desiccators feature an integrally molded design, ensuring outstanding vacuum capability with virutually no leakage. This construction provides exceptional durability, making them a reliable choice for your laboratory needs.

Features:

Maximum vacuum of 1 Torr (1.33 x 10-4 Mpa) for more than 72 hours
High quality silicone gasket ensures greaseless airtight seal for the clean and cost effective test environment
Highly transparent, shatterproof, non-corrosive, and easy to clean polycarbonate construction
Three-way stopcock provides great convenience for consistent and uniform vacuum draw, vacuum release, or gas exchange

The barbed fitting on each side secures attachment of tubing

Maximized utilization of internal space using maximum four to six shelves depending on product sizes
Stackable space-saving design allowing efficient usage of cramped lab space
Easy vacuum level checking with the standard vacuum gauge attached to the front door
Minimizing damages or discoloration of light-sensitive samples (for U models)
Four built-in ports allowing easy attachment of tubing
RoHS except for VDC-U models

Specifications

SKU	Type	Material	Gauge	Internal Dimensions	External Dimensions
AAAD4001	Cubic	Polycarbonate	0 Mpa to -0.1 Mpa	9.8 in x 10.0 in x 9.4 in	12.7 in x 11.2 in x 10.7 in
AAAD4101	Cubic	Polycarbonate	0 Mpa to -0.1 Mpa	9.8 in x 10.0 in x 9.4 in	12.7 in x 11.2 in x 10.7 in
AAAD4021	Cubic	Polycarbonate	0 Mpa to -0.1 Mpa	13.6 in x 14.4 in x 9.7 in	16.5 in x 15.6 in x 11.1 in
AAAD4121	Cubic	Polycarbonate	0 Mpa to -0.1 Mpa	13.6 in x 14.4 in x 9.7 in	16.5 in x 15.6 in x 11.1 in
AAAD4011	Cubic	Polycarbonate	0 Mpa to -0.1 Mpa	14.0 in x 14.8 in x 13.6 in	16.5 in x 15.6 in x 15.0 in
AAAD4111	Cubic	Polycarbonate	0 Mpa to -0.1 Mpa	14.0 in x 14.8 in x 13.6 in	16.5 in x 15.6 in x 15.0 in
AAAD4031	Cubic	Polycarbonate	0 Mpa to -0.1 Mpa	14.0 in x 14.7 in x 17.5 in	16.5 in x 15.6 in x 19.3 in
AAAD4131	Cubic	Polycarbonate	0 Mpa to -0.1 Mpa	14.0 in x 14.7 in x 17.5 in	16.5 in x 15.6 in x 19.3 in

Downloads

JeioTech Desiccator Brochure

Download

Additional Info

SKU	# of Shelves	Max. # of Shelves	Certification	Barb Fitting Diameter	Maximum Load
AAAD4001	2	4	RoHS Compliant	0.37 in (9.5 mm)	6.6 lb
AAAD4101	2	4		0.37 in (9.5 mm)	6.6 lb
AAAD4021	2	4	RoHS Compliant	0.37 in (9.5 mm)	11 lb
AAAD4121	2	4		0.37 in (9.5 mm)	11 lb
AAAD4011	3	5	RoHS Compliant	0.37 in (9.5 mm)	11 lb
AAAD4111	3	5		0.37 in (9.5 mm)	11 lb
AAAD4031	3	6	RoHS Compliant	0.37 in (9.5 mm)	11 lb
AAAD4131	3	6		0.37 in (9.5 mm)	11 lb
