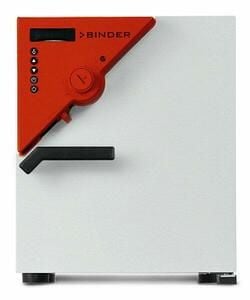

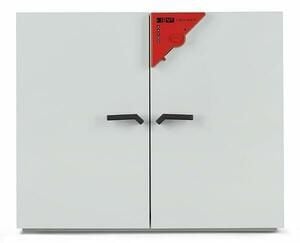

BD Series Standard Classic Incubators with Gravity Convection
Manufacturer: BINDER Inc.
The BINDER Series BD Classic Line Standard Incubators with Gravity Convection are powerful and reliable units for many applications. These units have exceptional efficiency and temperature accuracy to meet growth and incubation requirements. This incubator is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media or microbiological heating.
Description
In Stock!
Lead Times May Vary
The BINDER Series BD Classic Line Standard Incubators with Gravity Convection are the specialist in long-term and stable continuous operation. This incubator is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media or microbiological heating.
Features:
- Temperature range: ambient temperature plus 5°C to 100°C
- High temperature accuracy thanks to APT.lin™ technology
- Gravity convection
- Adjustable exhaust air flap
- Controller with timer functions
- Inner door made of tempered safety glass
- 2 chrome-plated racks
- Units up to 115 liters are stackable
- Class 3.1 independent temperature safety device (DIN 12880) with visual temperature alarm
- Computer interface: RS 422
Benefits:
- Safe and reproducible incubation even under high batch throughputs in long-term operation
- Stable atmosphere by inner glass door
- 100°C disinfection routine
| SKU | Temperature Range | Temperature Fluctuation | Temperature Variation | Warm Up Time |
|---|---|---|---|---|
| 9010-0187 | 100°C +5°C | ± 0.2 at 37°C | ± 0.5 at 37°C | 59 min to 37°C |
| 9010-0189 | 100°C +5°C | ± 0.2 at 37°C | ± 0.5 at 37°C | 59 min to 37°C |
| 9010-0073 | 100°C +5°C | ± 0.1 at 37°C | ± 0.5 at 37°C | 120 min to 37°C |
| 9010-0176 | 100°C +5°C | ± 0.1 at 37°C | ± 0.5 at 37°C | 120 min to 37°C |
|
BD Classic Operating Manual | Download |
|
|
BD Quick Start | Download |
|
|
BINDER Service | Download |
|
|
Model BD 023 Data Sheet | Download |
|
|
Model BD 400 Data Sheet | Download |
|
|
Standard Incubators Brochure | Download |
| SKU | # of Shelves | Door Recovery Time | Depth | Height | Width | Power Requirement |
|---|---|---|---|---|---|---|
| 9010-0187 | 2 std./4 max. | 20 min | 20.49 in | 19.5 in | 17.14 in | 230 V, 50/60 Hz |
| 9010-0189 | 2 std./4 max. | 20 min | 20.49 in | 19.5 in | 17.14 in | 120 V, 50/60 Hz |
| 9010-0073 | 2 std./9 max. | 10 min | 30.14 in | 40.4 in | 48.7 in | 230 V, 50/60 Hz |
| 9010-0176 | 2 std./9 max. | 10 min | 30.14 in | 40.4 in | 48.7 in | 120 V, 50/60 Hz |
The BINDER Series BD Classic Line Standard Incubators with Gravity Convection are powerful and reliable units for many applications. These units have exceptional efficiency and temperature accuracy to meet growth and incubation requirements. This incubator is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media or microbiological heating.
Starting at $2,627.00
