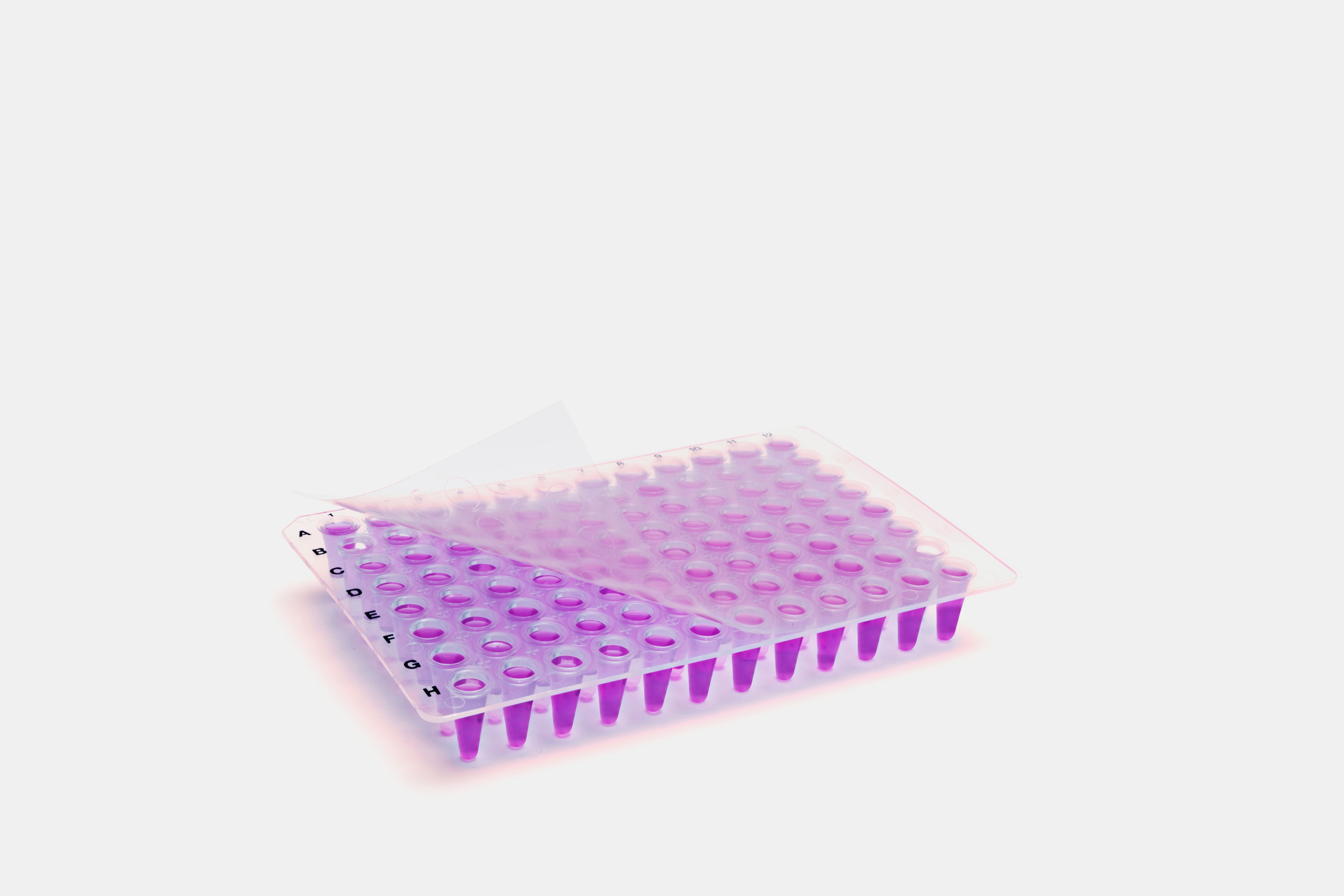

ThermalSeal® RTS™
Manufacturer: Excel Scientific
The specialized Excel Scientific ThermalSeal® RTS ™ seals provide a pressure-activated, strong seal to help minimize evaporation with a silicon-based adhesive. Sufficient pressure must be applied to create a secure bond around the wells and the perimeter of the plate. These seals are Certified DNase- and RNase- free and chemically resistant to DMSO, acetonitrile, and methanol. They have high optical clarity and low autofluorescence. Ideal for dry samples, the adhesive remains non-tacky until activated by pressure. Using a roller or sealing paddle is recommended for a consistent seal around the whole plate. There are multiple options for using this product, including roll availability for automation.
Description
In Stock!
Lead Times May Vary
ThermalSeal RTS provides an extremely strong seal to minimize evaporation. The silicone adhesive is non-tacky until pressure is applied to the sealing surface which then creates a secure bond around the wells and perimeter of the plate. Also ideal for dry samples (e.g. soil, seeds, insects, etc.) because the non-activated adhesive above the wells remains non-tacky. A roller or sealing paddle is highly recommended for use with this product to ensure consistent and adequate pressure is applied during the sealing process.
Features:
- Features a pressure-activated, non-tacky, silicone adhesive
- Certified DNase- & RNase- free
- Handling and plate positioning is simplified as a result of the non-tacky adhesive
- Chemically resistant to DMSO, acetonitrile, and methanol
- Ideal for use with flat-top, raised-rim and non-skirted PCR plates
- High optical clarity and low auto-fluorescence
- Available in roll format for automation: ThermalSeal RTS Roll-Seal
- A complimentary sealing paddle is included in each box
- All sales are final. No refunds are permitted except from manufacturer defects.
Helpful Tips:
- Sufficient pressure must be applied to activate the silicone adhesive
- Multiple swipes of the sealing paddle in both directions is highly recommended
- A 10 minute or greater wait period before thermal cycling increases the film-to-plate bond
| SKU | Application | Temperature Range | Dimensions |
|---|---|---|---|
| TSSRTQ100 | qPCR, long-term storage, protein crystallography & HPLC | -80°C to +105°C | 5.500" ± 0.015" x 3.0833" ± 0.015" |
| TSSRTQ25 | qPCR, long-term storage, protein crystallography & HPLC | -80°C to +105°C | 5.500" ± 0.015" x 3.0833" ± 0.015" |
| TSSRTQS50 | qPCR, long-term storage, protein crystallography & HPLC | -80°C to +105°C | 5.500" ± 0.015" x 3.0833" ± 0.015" |
| RRTS79x65 | qPCR, long-term storage, protein crystallography & HPLC | -80°C to +105°C | 3.093" x 214' |
| SKU | Tab Dimensions | Film Material | Film Thickness | Adhesive Thickness |
|---|---|---|---|---|
| TSSRTQ100 | 0.375" ± 0.015" | Optically Clear Polyolefin | 2.0 mil ±10% | 1.8 - 2.2 mil |
| TSSRTQ25 | 0.375" ± 0.015" | Optically Clear Polyolefin | 2.0 mil ±10% | 1.8 - 2.2 mil |
| TSSRTQS50 | 0.375" ± 0.015" | Optically Clear Polyolefin | 2.0 mil ±10% | 1.8 - 2.2 mil |
| RRTS79x65 | - | Optically Clear Polyolefin | 2.0 mil ±10% | 1.8 - 2.2 mil |
The specialized Excel Scientific ThermalSeal® RTS ™ seals provide a pressure-activated, strong seal to help minimize evaporation with a silicon-based adhesive. Sufficient pressure must be applied to create a secure bond around the wells and the perimeter of the plate. These seals are Certified DNase- and RNase- free and chemically resistant to DMSO, acetonitrile, and methanol. They have high optical clarity and low autofluorescence. Ideal for dry samples, the adhesive remains non-tacky until activated by pressure. Using a roller or sealing paddle is recommended for a consistent seal around the whole plate. There are multiple options for using this product, including roll availability for automation.
Starting at $76.68
Request A Quote
