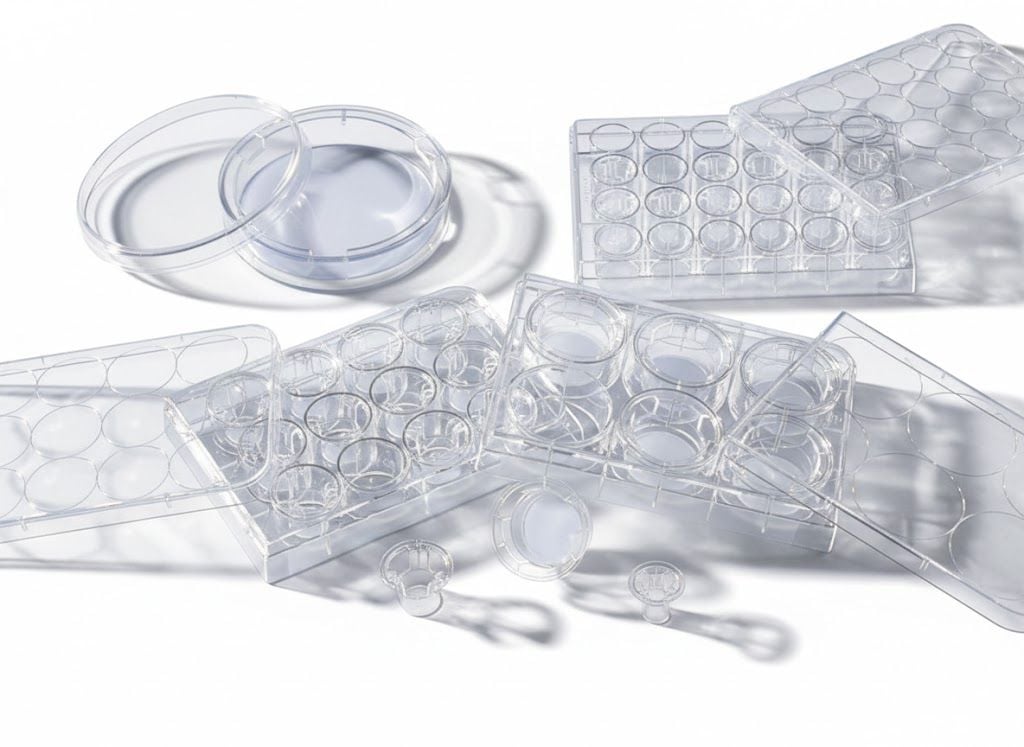

Transwell® Permeable Supports with Polycarbonate (PC) Membrane
Manufacturer: Corning Life Sciences
Create a more biologically relevant environment for your research with Corning® Transwell® Permeable Supports with Polycarbonate (PC) Membrane. These inserts are the industry standard for studying polarized cell types, such as epithelial and endothelial barriers. By allowing cells to access nutrients from both the apical and basolateral sides, they promote a state of differentiation that closely mimics in vivo physiology.
Description
In Stock!
Lead Times May Vary
Unlike the "Clear" PET versions, Polycarbonate membranes are translucent, which provides a high pore density for maximum molecular exchange. Because they are translucent, cells must be stained (e.g., with Crystal Violet or DAPI) for visualization under a microscope, making them ideal for endpoint assays where precise quantification is required.
Features:
- Optimal Cell Attachment: All membranes are Tissue Culture (TC) treated to ensure robust anchorage-dependent growth
- High Pore Density: The track-etched polycarbonate provides a uniform, sieve-like structure that is excellent for transport and permeability studies
- Biologically Relevant: Supports the formation of tight junctions and polarized metabolic activity
- Wide Range of Sizes: Available from 6.5 mm (24-well format) up to a massive 75 mm for large-scale tissue cultivation
- Absolute Sterility: Gamma-irradiated and supplied pre-loaded in standard well plates for immediate use
Pore Size Application Guide
Choosing the correct pore size is critical for the success of your assay:
- 0.4 µm: The gold standard for drug transport (Caco-2), toxicity screening, and co-culture without cell migration
- 3.0 µm: Optimized for chemotaxis and studying the migration of leukocytes or other smaller cells
- 5.0 to 8.0 µm: Specifically designed for tumor cell invasion and migration assays where larger cells must pass through the membrane
Pro-Tip: Visualizing Your Cells:
Because Polycarbonate membranes are translucent, you cannot see your cells clearly using standard phase-contrast microscopy while they are on the membrane. For best results:
- Fix the cells with 4% Paraformaldehyde.
- Stain with a DNA-binding dye (like Hoechst or DAPI) or a cytoplasmic stain.
- Remove the membrane from the insert with a scalpel and mount it on a glass slide for high-resolution imaging.
| SKU | Size | Well Volume | Membrane Diameter | Pore Size | Pore Density | Cell Growth Area |
|---|---|---|---|---|---|---|
| 3412 | 24 mm | Well: 2.6 mL Insert: 1.5 mL |
24 mm | 0.4 µm | 1 x 108 pores per cm2 | 4.67 cm2 |
| 3414 | 24 mm | Well: 2.6 mL Insert: 1.5 mL |
24 mm | 3.0 µm | 2 x 106 pores per cm2 | 4.67 cm2 |
| 3428 | 24 mm | Well: 2.6 mL Insert: 1.5 mL |
24 mm | 8.0 µm | 1 x 105 pores per cm2 | 4.67 cm2 |
| 3413 | 6.5 mm | Well: 0.6 mL Insert: 0.1 mL |
6.5 mm | 0.4 µm | 1 x 108 pores per cm2 | 0.33 cm2 |
| 3415 | 6.5 mm | Well: 0.6 mL Insert: 0.1 mL |
6.5 mm | 3.0 µm | 2 x 106 pores per cm2 | 0.33 cm2 |
| 3421 | 6.5 mm | Well: 0.6 mL Insert: 0.1 mL |
6.5 mm | 5.0 µm | 4 x 105 pores per cm2 | 0.33 cm2 |
| 3422 | 6.5 mm | Well: 0.6 mL Insert: 0.1 mL |
6.5 mm | 8.0 µm | 1 x 105 pores per cm2 | 0.33 cm2 |
| 3401 | 12 mm | Well: 1.5 mL Insert: 0.5 mL |
12 mm | 0.4 µm | 1 x 108 pores per cm2 | 1.12 cm2 |
| 3402 | 12 mm | Well: 1.5 mL Insert: 0.5 mL |
12 mm | 3.0 µm | 2 x 106 pores per cm2 | 1.12 cm2 |
| 3420 | 75 mm | Well: 13 mL Insert: 9 mL |
75 mm | 3.0 µm | 2 x 106 pores per cm2 | 44 cm2 |
| 7910 | Well: 13 mL Insert: 9 mL |
75 mm | 0.4 µm | 1.6 x 106 pores per cm2 | 44 cm2 |
| SKU | Includes | Type | Color | Well Shape | Material | Bottom Style | Sterility |
|---|---|---|---|---|---|---|---|
| 3412 | Lids | TC-Treated | Clear | Round | Polycarbonate | Flat, Clear | Sterile |
| 3414 | Lids | TC-Treated | Clear | Round | Polycarbonate | Flat, Clear | Sterile |
| 3428 | Lids | TC-Treated | Clear | Round | Polycarbonate | Flat, Clear | Sterile |
| 3413 | Lids | TC-Treated | Clear | Round | Polycarbonate | Flat, Clear | Sterile |
| 3415 | Lids | TC-Treated | Clear | Round | Polycarbonate | Flat, Clear | Sterile |
| 3421 | Lids | TC-Treated | Clear | Round | Polycarbonate | Flat, Clear | Sterile |
| 3422 | Lids | TC-Treated | Clear | Round | Polycarbonate | Flat, Clear | Sterile |
| 3401 | Lids | TC-Treated | Clear | Round | Polycarbonate | Flat, Clear | Sterile |
| 3402 | Lids | TC-Treated | Clear | Round | Polycarbonate | Flat, Clear | Sterile |
| 3420 | 100 mm Dishes, Lids | TC-Treated | Clear | Round | Polycarbonate | Flat, Clear | Sterile |
| 7910 | 100 mm Dishes, Lids | TC-Treated | Clear | Round | Polycarbonate | Flat, Clear | Sterile |
Create a more biologically relevant environment for your research with Corning® Transwell® Permeable Supports with Polycarbonate (PC) Membrane. These inserts are the industry standard for studying polarized cell types, such as epithelial and endothelial barriers. By allowing cells to access nutrients from both the apical and basolateral sides, they promote a state of differentiation that closely mimics in vivo physiology.
Starting at $174.08
