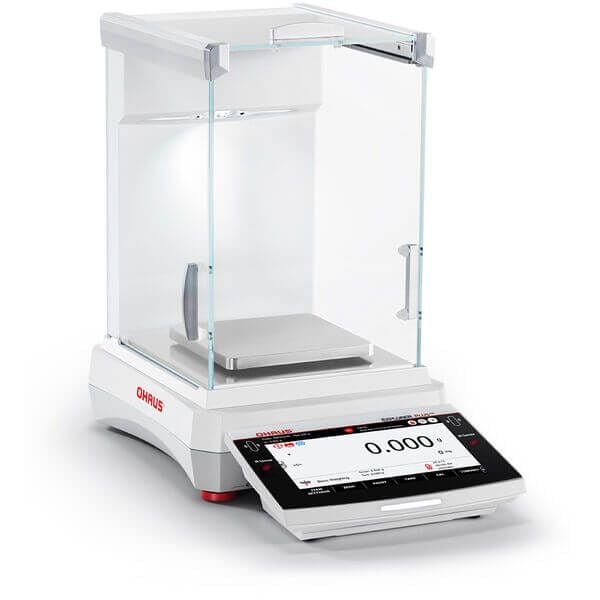

Explorer Plus™ Precision EXP Draftshield Balances (1 mg)
Manufacturer: Ohaus Corporation
Description
The Explorer Plus™ Precision EXP Draftshield Balances (1 mg) transforms routine weighing into an optimized user experience. It features a stunning 7-inch TFT color touchscreen with intuitive operation and 15 versatile application modes, accommodating sophisticated tasks like density determination, SQC, and Formulation. Built-in advanced features including motorized leveling and 2 touchless sensors for contamination-free results. The included anti-static glass draftshield (on 1 mg readability models) and the stainless steel 316 weighing pan ensure superior stability and corrosion resistance. With an internal system log capacity of 100,000 entries and comprehensive connectivity options, this balance is built for the future of compliant and automated precision weighing.
Features:
- Premium weighing performance for precision laboratory applications
- Max capacities ranging from 220 g to 1200 g
- 7-inch TFT color touchscreen with intuitive operation
- Motorized leveling system ensures optimal balance positioning
- 15 versatile application modes including Density Determination and SQC
- 2 touchless sensors enable hands-free operation
- Robust data traceability with an internal system log capacity of 100,000 entries
- Stainless steel 316 weighing pan for exceptional corrosion resistance
- Anti-static glass draftshield eliminates electrostatic interference (1 mg models)
- Comprehensive connectivity including USB Host x2, Ethernet, and RS232
Each unit includes Draftshield, AC Adapter, In-Use Cover, and Built-in Ionizer.
| SKU | Internal Calibration | Model # | Pan Size | Repeatability | Stabilization Time | Display |
|---|---|---|---|---|---|---|
| 31059176 | AutoCal™ Automatic | EXP223/AD | 5.1 in x 5.1 in | 1 mg | 1.5 s | 7 in Color TFT Touchscreen |
| 31059177 | AutoCal™ Automatic | EXP423/AD | 5.1 in x 5.1 in | 1 mg | 1.5 s | 7 in Color TFT Touchscreen |
| 31059178 | AutoCal™ Automatic | EXP623/AD | 5.1 in x 5.1 in | 1 mg | 1.5 s | 7 in Color TFT Touchscreen |
| 31059179 | AutoCal™ Automatic | EXP1203/AD | 5.1 in x 5.1 in | 1 mg | 1.5 s | 7 in Color TFT Touchscreen |
|
|
Explorer Plus™ Series Specification Sheet | Download |
|
|
Explorer Plus™ Series Instruction Manual | Download |
| SKU | Dimensions | Door Type | Linearity | Power Requirement | Working Environment |
|---|---|---|---|---|---|
| 31059176 | 16.1 in x 14.6 in x 9.0 in | Anti-Pinch Autodoors | ±2 mg | 100-240V, 0.5A | 10°C - 30°C, 80%RH, Non-Condensing |
| 31059177 | 16.1 in x 14.6 in x 9.0 in | Anti-Pinch Autodoors | ±2 mg | 100-240V, 0.5A | 10°C - 30°C, 80%RH, Non-Condensing |
| 31059178 | 16.1 in x 14.6 in x 9.0 in | Anti-Pinch Autodoors | ±2 mg | 100-240V, 0.5A | 10°C - 30°C, 80%RH, Non-Condensing |
| 31059179 | 16.1 in x 14.6 in x 9.0 in | Anti-Pinch Autodoors | ±2 mg | 100-240V, 0.5A | 10°C - 30°C, 80%RH, Non-Condensing |
Starting at $4,403.00
Select a product below and add it to your cart to request a quote.
