Korzun Process Reactors, Glass Baffles, 2 L - 50 L

Name: Korzun Process Reactors, Glass Baffles, 2 L - 50 L
Brand: Chemglass Life Sciences
SKU: CG-1971-120-GROUP

Manufacturer: Chemglass Life Sciences

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Quantity	Depth	Length	Width	For Use With	Price	Qty
CG-1971-120 CG-1971-120	20 mm Closed-Bottom Complete Glass Baffles, 10 L - 20 L	Each	30 mm	Overall: 32 in Effective: 13.5 in	20 mm	10 L - 20 L Reactors	$748.80	+ -
CG-1971-122 CG-1971-122	18 mm Closed-Bottom Complete Glass Baffles, 10 L - 20 L	Each	18 mm	Overall: 32 in Effective: 13.5 in	18 mm	10 L - 20 L Reactors	Regular Price $687.49 Special Price $687.49	+ -
CG-1971-132 CG-1971-132	20 mm Closed-Bottom Complete Glass Baffles, 30 L & 50 L	Each	30 mm	Overall: 34 in Effective: 14.0 in	20 mm	30 L & 50 L Short Reactors	$1,059.90	+ -
CG-1971-136 CG-1971-136	20 mm Closed-Bottom Complete Glass Baffles, 30 L & 50 L	Each	30 mm	Overall: 34 in Effective: 14.0 in	20 mm	30 L & 50 L Short Reactors	Regular Price $908.23 Special Price $908.23	+ -
Total $0.00

Use the Quantity box to select product first.

Accessories

Grouped product items
Cat Code	Description	Depth	Fitting Type	Length	Width	For Use With	Joint Size	Price	Qty
CG-1971-51 CG-1971-51	3/4 in Lower PTFE Compression Fitting	-	Fits 1/4 in Thermocouple	3/4 in	-	10 L - 50 L		Regular Price $139.94 Special Price $139.94	+ -
CG-1971-66 CG-1971-66	20 mm Closed Glass Baffle Only, 10 L - 20 L	30 mm	-	32 in	20 mm	10 L - 20 L Reactors	-	Regular Price $288.36 Special Price $288.36	+ -
CG-1971-70 CG-1971-70	18 mm Closed Glass Baffle Only, 10 L - 20 L	18 mm	-	32 in	18 mm	10 L - 20 L Reactors	-	Regular Price $227.64 Special Price $227.64	+ -
CG-1971-72 CG-1971-72	20 mm Open Glass Baffle Only, 30 L & 50 L	30 mm	-	34 in	20 mm	30 L & 50 L Short Reactors	-	$316.25	+ -
CG-1971-74 CG-1971-74	20 mm Closed Glass Baffle Only, 30 L & 50 L	30 mm	-	34 in	20 mm	30 L & 50 L Short Reactors	-	Regular Price $300.64 Special Price $300.64	+ -
CG-1971-80 CG-1971-80	Glass-Filled PTFE Adapter, 10 L - 20 L	-	-	-	-	10 L - 20 L Reactors	Adapter Joint Size: 45/50	Regular Price $475.63 Special Price $475.63	+ -
CG-1971-85 CG-1971-85	Glass-Filled PTFE Adapter, 30 L - 50 L	-	-	-	-	30 L & 50 L Short Reactors	Adapter Joint Size: 45/50 with Extension	Regular Price $615.51 Special Price $615.51	+ -
Total $0.00

Use the Quantity box to select product first.

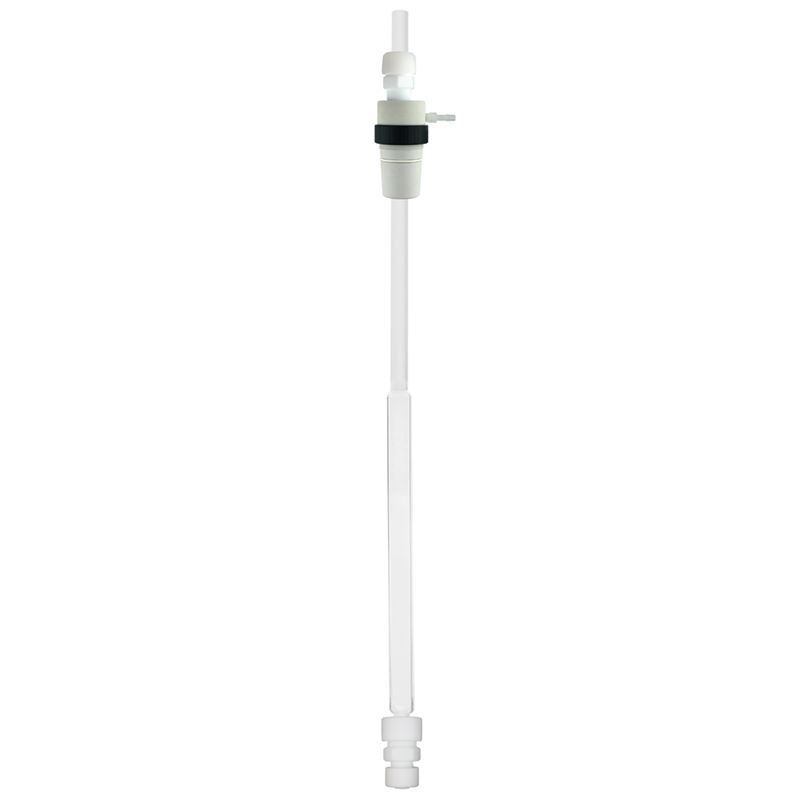

The Chemglass Korzun Process Reactors, Glass Baffles are designed to be used with 2L to 50L reactors. They increase agitation in the reactor and mimic baffles found in larger glass lined reactors. The baffles can be adjusted inside the reactor. It includes the glass baffle, the PTFE adapter, and the lower PTFE compression fitting.

Description

Overview

In Stock!

Lead Times May Vary.

Chemglass Korzun Process Reactors, Glass Baffles, 2 L - 50 L

Features:

Designed to increase agitation in the reactor and mimic baffles found in larger glass lined reactors
All baffles have 3/4" precision ground top and lower tubing for use with compression fittings and top jointed adapter
Available in square or rectangular shapes, open or closed bottom
PTFE joint is offset permitting baffle to be adjusted up to 1" towards the center of the reactor
Baffle can be vertically adjusted inside reactor
Hollow baffles allow thermocouples from 1/8 in to 1/4 in in diameter to be inserted into the reaction

Includes:

Glass baffle
Glass-filled PTFE adapter
Lower PTFE compression fitting

Please note: See CG-1872-B for pH electrode baffles.

Specifications

SKU	Joint Size	Fitting Type
CG-1971-122	Adapter Joint Size: 45/50	Lower PTFE Compression Fitting: Closed Bottom
CG-1971-132	Adapter Joint Size: 45/50	Lower PTFE Compression Fitting, 1/4 in
CG-1971-136	Adapter Joint Size: 45/50	Lower PTFE Compression Fitting: Closed Bottom
CG-1971-120	Adapter Joint Size: 45/50	Lower PTFE Compression Fitting: Closed Bottom
