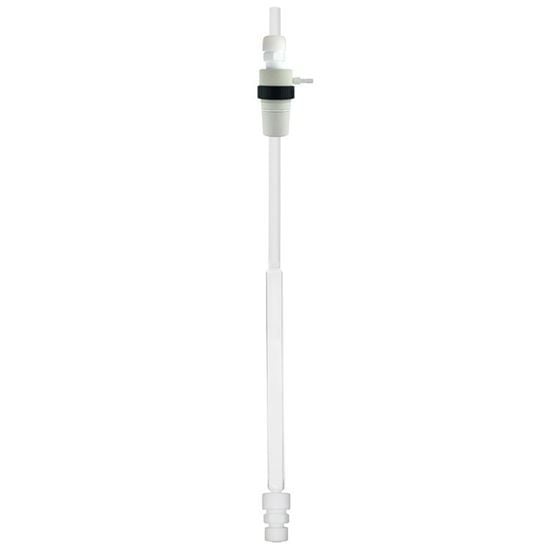

Korzun Process Reactors Glass Baffles, pH Electrode, 10L - 50L
Manufacturer: Chemglass Life Sciences
The Korzun Process Reactors Glass Baffles can be used to allow pH electrodes to be inserted into the reaction. It is a hollow baffle with open bottom. It also increases agitation in the reactor and mimics baffles found in larger glass lined reactors. There are three different sizes to choose from.
Description
In Stock!
Lead Times May Vary.
Chemglass Korzun Process Reactors Glass Baffles, pH Electrode, 10L - 50L
Features:
- Square or rectangular shape with open bottom
- PTFE joint is offset permitting baffle to be adjusted up to 1 in towards the center of the reactor
- Baffle can be vertically adjusted inside reactor
- Hollow baffles allow pH electrodes to be inserted into the reaction
- Increases agitation in the reactor
- Mimics baffles found in larger glass lined reactors
- All baffles have 3/4 in precision ground top and lower tubing for use with the compression fittings and top jointed adapter
Includes:
- Glass baffle
- Glass-filled PTFE adapter
- Lower PTFE compression fitting
Please note: See CG-1971 for thermocouple baffles and CG-1872 for pH electrodes.
| SKU | Joint Size | Fitting Type |
|---|---|---|
| CG-1872-B-01 | 45/50 | 1/2 in Lower Compression TFE Fitting |
| CG-1872-B-02 | 45/50 | 1/2 in Lower Compression TFE Fitting |
| CG-1872-B-10 | 45/50 | 1/2 in Lower Compression TFE Fitting |
The Korzun Process Reactors Glass Baffles can be used to allow pH electrodes to be inserted into the reaction. It is a hollow baffle with open bottom. It also increases agitation in the reactor and mimics baffles found in larger glass lined reactors. There are three different sizes to choose from.
Starting at $835.39
