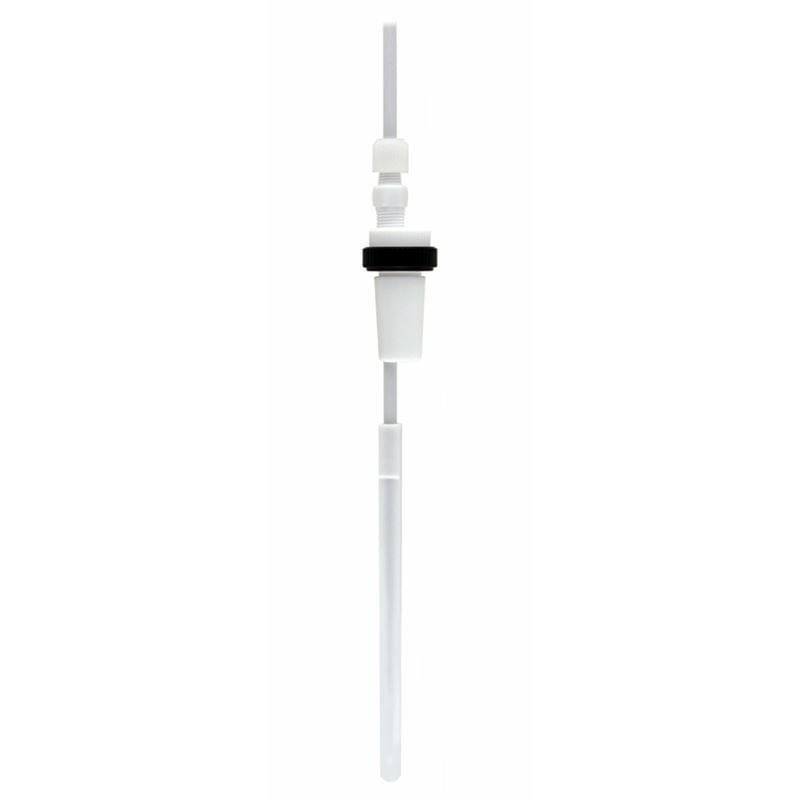

Process Reactors PTFE Baffles, 300mL - 5L
Manufacturer: Chemglass Life Sciences
The Chemglass Process Reactors PTFE Baffles are designed to increase agitation in the reactor. They also mimic baffles found in larger glass lined reactors. The baffle is rectangular and adjustable. There are three sizes to choose from for use with different sized reactors.
Description
In Stock!
Lead Times May Vary.
Chemglass Process Reactors PTFE Baffles
Features:
- Designed to increase agitation in the reactor
- Mimic baffles found in larger glass lined reactors
- PTFE jacketed stainless steel provides excellent strength and chemical durability
- Rectangular baffle
- PTFE standard taper adapter is offset permitting baffle to be adjusted up to 1/4 in towards the center of the reactor
- Baffle can be vertically adjusted inside reactor
Includes:
- PTFE jacketed S.S. baffle
- PTFE standard taper adapter
- 1/4 in PTFE compression fitting
| SKU | Joint Size | Width | Depth | Fitting Type |
|---|---|---|---|---|
| CG-1971-M-01 | 24/40 Adapter Joint | 7 mm | 10 mm | PTFE Compression Fitting, 1/4 in |
| CG-1971-M-02 | 24/40 Adapter Joint | 7 mm | 10 mm | PTFE Compression Fitting, 1/4 in |
| CG-1971-M-04 | 24/40 Adapter Joint | 7 mm | 10 mm | PTFE Compression Fitting, 1/4 in |
The Chemglass Process Reactors PTFE Baffles are designed to increase agitation in the reactor. They also mimic baffles found in larger glass lined reactors. The baffle is rectangular and adjustable. There are three sizes to choose from for use with different sized reactors.
Starting at $365.29
Request A Quote
![Process Reactors PTFE Baffles, 300mL - 5L]()
Select a product below and add it to your cart to request a quote.
