Airfree® Schlenk 15 mm O-ring Joint Adapters
Manufacturer: Chemglass Life Sciences
Achieve maximum versatility and a secure, greaseless connection for your vacuum manifold with the Airfree® Schlenk 15 mm O-ring Joint Adapter. This essential component is engineered to seamlessly integrate with your AF-0060 through AF-0062 manifolds, allowing you to connect a wide range of standard glassware or tubing. It's the perfect solution for expanding the functionality of your air-free system with a reliable, leak-tight seal.
Description
In Stock!
Lead Times May Vary.
The adapter's design offers flexibility for your specific needs. It can be used with a Cajon® fitting on the main ports or with heavy wall rubber vacuum tubing on the ends of the manifold. It comes supplied with a #116 Viton® O-ring, which provides a secure, greaseless seal that is vital for contamination-free work. The adapter is easily and reliably attached to your manifold with the included S.S. pinch clamp, making it simple to install, remove, and reconfigure your setup as needed.
Features:
- Designed for use with AF-0060 through AF-0062 vacuum manifolds
- Can be used with a Cajon® fitting or with heavy wall rubber vacuum tubing
- Supplied with a #116 Viton® O-ring for a secure, greaseless seal
- Attached to the manifold via a S.S. pinch clamp
- Serrated hose connections for easy identification and a secure fit
| SKU | Connection Type |
|---|---|

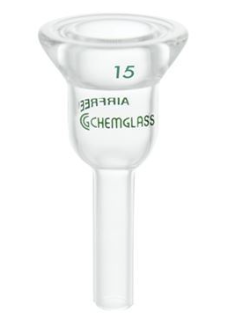

| AF-0070-01 | 15mm O-Ring Joint to 3/8in OD Straight Glass |
| AF-0070-02 | 15mm O-Ring Joint to 1/4in OD Straight Glass |
| AF-0070-03 | 15mm O-Ring Joint to 3/4in OD Straight Glass |
| AF-0070-04 | 15mm O-Ring Joint to 1in OD Straight Glass |

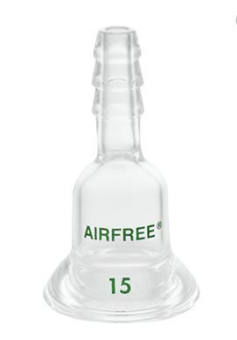

| AF-0070-05 | 15mm O-Ring Joint to 10mm Serrated Hose Connection |
| AF-0070-06 | 15mm O-Ring Joint to 11mm Serrated Hose Connection |
| AF-0070-07 | 15mm O-Ring Joint to 16mm Serrated Hose Connection |

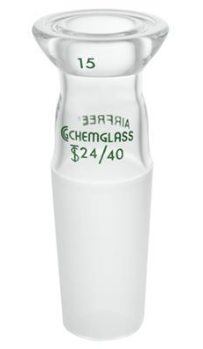

| AF-0070-08 | 15mm O-Ring Joint to 14/20 Inner Joint |
| AF-0070-09 | 15mm O-Ring Joint to 24/40 Inner Joint |

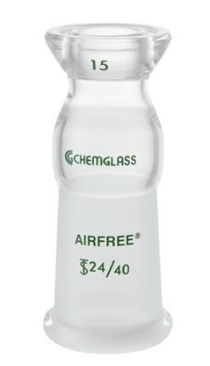

| AF-0070-10 | 15mm O-Ring Joint to 14/20 Outer Joint |
| AF-0070-11 | 15mm O-Ring Joint to 24/40 Outer Joint |

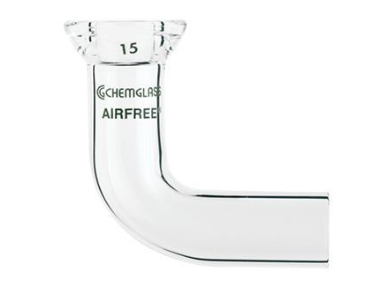

| AF-0070-20 | #15 O-Ring Joint To 3/4" Tubing, Bent 90 |
Achieve maximum versatility and a secure, greaseless connection for your vacuum manifold with the Airfree® Schlenk 15 mm O-ring Joint Adapter. This essential component is engineered to seamlessly integrate with your AF-0060 through AF-0062 manifolds, allowing you to connect a wide range of standard glassware or tubing. It's the perfect solution for expanding the functionality of your air-free system with a reliable, leak-tight seal.
Starting at $33.25
Request A Quote
![Airfree® Schlenk 15 mm O-ring Joint Adapters]()
Select a product below and add it to your cart to request a quote.
