Threaded Vacuum Adapter

Name: Threaded Vacuum Adapter
Brand: Chemglass Life Sciences
SKU: CG-1049-C-10-GROUP

Manufacturer: Chemglass Life Sciences

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Quantity	Includes	Length	For Use With	Price	Qty
CG-1049-C-02 CG-1049-C-02	Tooled Pluro Stopper Flare Adapter	Each	-	-	20-400 GPI Thread	Regular Price $115.23 Special Price $115.23	+ -
CG-1049-C-04 CG-1049-C-04	Outer Luer Joint Adapter	Each	-	-	20-400 GPI Thread	Regular Price $115.23 Special Price $115.23	+ -
CG-1049-C-06 CG-1049-C-06	GPI Thread to GPI Thread Adapter	Each	-	-	20-400 GPI Thread	Regular Price $115.23 Special Price $115.23	+ -
CG-1049-C-10 CG-1049-C-10	Vacuum Adapter Kit	Each	Polypropylene Box and CG-1049-C-02, CG-1049-C-04, CG-1049-C-06, CG-1049-C-50, CG-1401-11	-	-	Regular Price $335.23 Special Price $335.23	+ -
Total $0.00

Use the Quantity box to select product first.

Accessories

Grouped product items
Cat Code	Description	Quantity	Length	Price	Price	Qty
CG-1049-C-50 CG-1049-C-50	3/16 in ID x 1/4 in OD Long PTFE Delivery Stem	12/Pack	2-1/2 in	Regular Price $31.71 Special Price $31.71		+ -
Total $0.00

Use the Quantity box to select product first.

Vacuum Threaded Adapters are used for filtration directly into vials. There are three top configurations, with the bottom of all adapters having a 20-400 GPI thread for connection to vials using a CG-1318 Threaded Connector. Design incorporates a drip tube sealed within thread to prevent breakage and are supplied with a 2-1/2" PTFE delivery stem. The connection is 10mm outer diameter at the largest serration. The adapters are supplied with PTFE delivery system.

Description

Overview

In Stock!

Lead Times May Vary.

Chemglass Vacuum Threaded Adapter

Features:

Used for filtration directly into vials
Three top configurations, with the bottom of all adapters having a 20-400 GPI thread for connection to vials using a CG-1318 threaded connector
Design incorporates a drip tube sealed within thread to prevent breakage and are supplied with a 2-1/2” PTFE delivery stem
Hose connection is 10mm outer diameter at the largest serration
Adapters are supplied with PTFE delivery stem

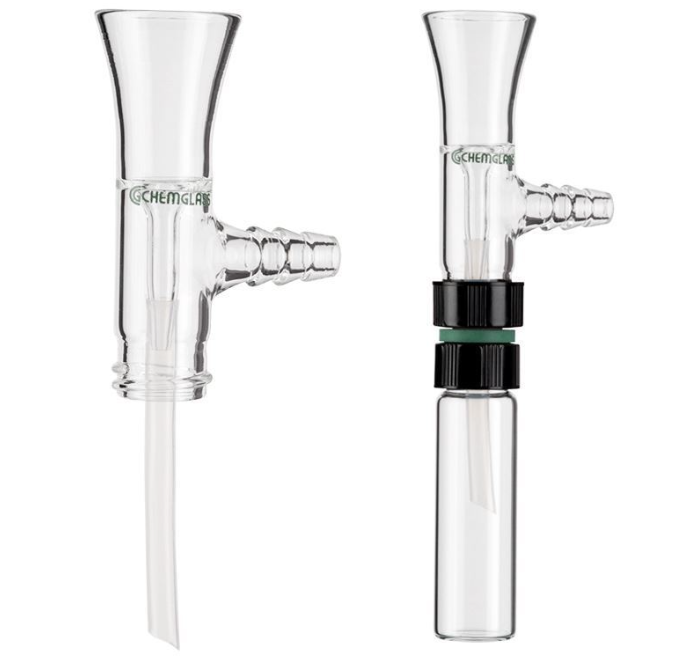

Adapter with tooled flare top is used for reduced pressure filtration with plain stem buchner funnels
Flare accepts a #2 Pluro Stopper

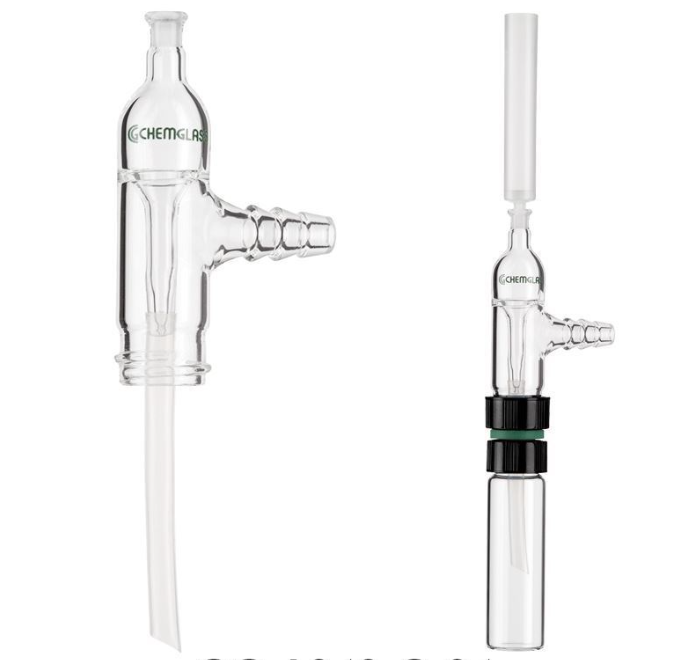

Adapter with outer luer joint provides a convenient way to connect solid phase extraction (SPE) cartridges, tubes or syringes
Adapter provides for easier sample concentration and clean-up while reducing the chances of cross-contamination
Adapter with 20-400 GPI thread allows for transfer from vial to vial
Kits are available with one each of the glass adapters, PTFE delivery stem packaged in a divided plastic box

Please note: Adapter is not supplied with rubber pluro stopper, unless purchased as a kit. See CG-1401 for stopper.
