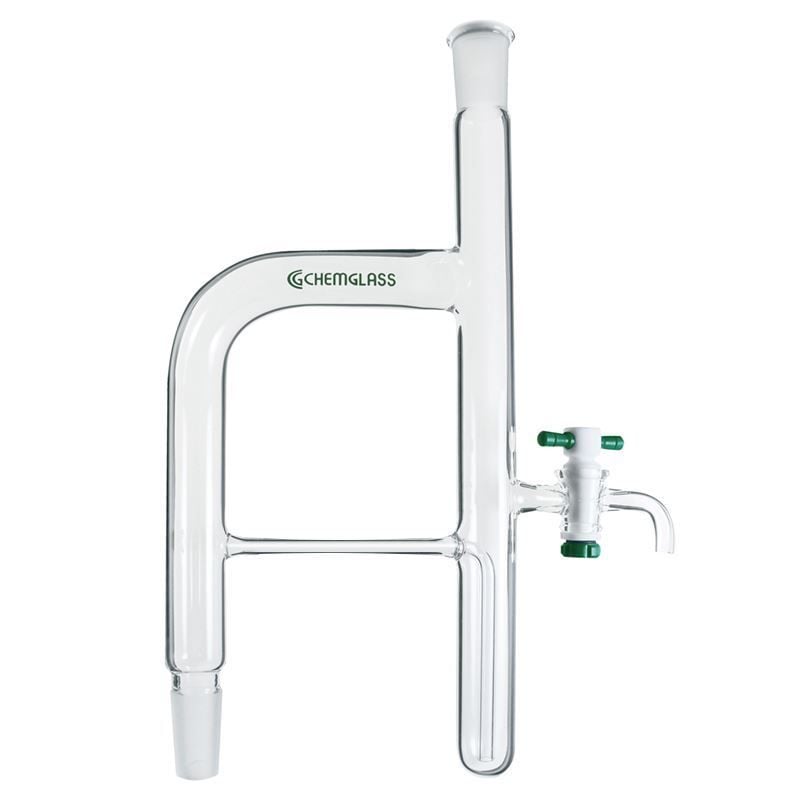

Modified, Dean-Stark Distilling Receivers
Manufacturer: Chemglass Life Sciences
The Modified, Dean-Stark Distilling Receivers from Chemglass are compact. They are to be used for azeotropic distillations that use solvents that are heavier than water. The vapors are condensed and collected in the reservoir section. The lower reservoir is approximately 50 mL in size.
Description
In Stock!
Lead Times May Vary.
Modified, Dean-Stark Distilling Receivers
Features:
- Compact Dean-Stark receiver
- Designed for azeotropic distillations using solvents that are heavier than water
- Vapors are condensed and collected in the reservoir section
- Solvent vapor travels through tube "A" to a condenser inserted in the top standard taper outer joint
- The layers separate and the heavier-than-water solvent overflows through tube "C" back into the distillation flask
- The upper water layer is drained out intermittently using the 4mm PTFE stopcock "D"
- Capacity of the lower reservoir is approximately 50 mL
| SKU | Height | Width |
|---|---|---|
| CG-1266-10 | 355 mm | 240 mm |
The Modified, Dean-Stark Distilling Receivers from Chemglass are compact. They are to be used for azeotropic distillations that use solvents that are heavier than water. The vapors are condensed and collected in the reservoir section. The lower reservoir is approximately 50 mL in size.
Starting at $606.50
Request A Quote
![Modified, Dean-Stark Distilling Receivers]()
Select a product below and add it to your cart to request a quote.
