Complete 24/40 Round Bottom Distilling Kits with Liebig Condenser
Manufacturer: The Lab Depot
Streamline your laboratory distillation setup with the The Lab Depot Complete 24/40 Round Bottom Distilling Kits. These comprehensive bundles provide all the essential glassware and hardware required for efficient solvent recovery, purification, and botanical extraction. Utilizing standard 24/40 ground glass joints, these components ensure a leak-proof, airtight seal for high-vacuum or atmospheric distillation.
Description
The heart of the kit is the Liebig Condenser, which features a straight inner tube for vapor and a surrounding outer jacket for cooling water. This design is optimized for high-speed condensation without the risk of "clogging" that can occur in coil-style condensers when processing more viscous distillates.
Each kit is a "ready-to-run" system (just add a thermometer and heat source):
- Boiling & Receiving Flasks: Two round-bottom flasks (sizes vary by kit)
- 3-Way Distilling Adapter: Connects the boiling flask, thermometer, and condenser
- Liebig Condenser: Available in 300 mm or 500 mm lengths for efficient heat exchange

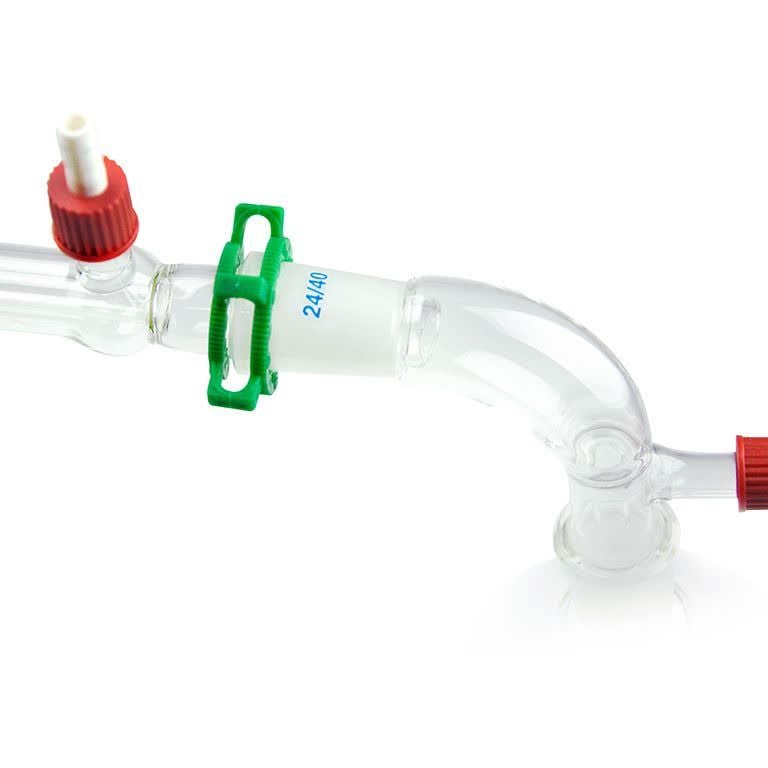

- 105° Vacuum Take-off Adapter: Guides the distillate into the receiving flask
- Support Hardware: Includes cast iron stands and coated burette clamps for stable mounting
- Keck Clamps: Set of 5 clips to secure the ground glass joints safely
- Thermometer Port: Includes a thermometer adapter
- Stands: 5 in x 8 in Cast Iron Base (Kits TLDKT3000RB & TLDKT5000RB include two stands/clamps)
Safety and Optimization Tips:
- It is highly recommended to use a heating mantle or oil bath with these round-bottom flasks to ensure even heat distribution and prevent bumping
- Always ensure the cooling water enters the condenser from the bottom port and exits through the top port to prevent air pockets and ensure maximum cooling efficiency
Please Note: These kits do not include a thermometer.
| SKU | Joint Size | Liebig Condenser | Material | Type |
|---|---|---|---|---|
| TLDKT0500RB | 24/40 | 300 mm | Borosilicate Glass | 500 mL Flask, 250 mL Flask |
| TLDKT1000RB | 24/40 | 300 mm | Borosilicate Glass | 1000 mL Flask, 500 mL Flask |
| TLDKT2000RB | 24/40 | 300 mm | Borosilicate Glass | 2000 mL Flask, 1000 mL Flask |
| TLDKT3000RB | 24/40 | 500 mm | Borosilicate Glass | 3000 mL Flask, 2000 mL Flask |
| TLDKT5000RB | 24/40 | 500 mm | Borosilicate Glass | 5000 mL Flask, 3000 mL Flask |
| SKU | Includes |
|---|---|
| TLDKT0500RB | 24/40 Liebig Condenser, 24/40 3-Way Adapter, 24/40 Bent 105° Adapter, (2) 24/40 Round Bottom Boiling Flask, Coated Jaws Burette Clamp, 5 in x 8 in Cast Iron Support Stand, 5 Keck Clamps, Thermometer Adapter |
| TLDKT1000RB | 24/40 Liebig Condenser, 24/40 3-Way Adapter, 24/40 Bent 105° Adapter, (2) 24/40 Round Bottom Boiling Flask, Coated Jaws Burette Clamp, 5 in x 8 in Cast Iron Support Stand, 5 Keck Clamps, Thermometer Adapter |
| TLDKT2000RB | 24/40 Liebig Condenser, 24/40 3-Way Adapter, 24/40 Bent 105° Adapter, (2) 24/40 Round Bottom Boiling Flask, Coated Jaws Burette Clamp, 5 in x 8 in Cast Iron Support Stand, 5 Keck Clamps, Thermometer Adapter |
| TLDKT3000RB | 24/40 Liebig Condenser, 24/40 3-Way Adapter, 24/40 Bent 105° Adapter, (2) 24/40 Round Bottom Boiling Flask, (2) Coated Jaws Burette Clamp, (2) 5 in x 8 in Cast Iron Support Stand, 5 Keck Clamps, Thermometer Adapter |
| TLDKT5000RB | 24/40 Liebig Condenser, 24/40 3-Way Adapter, 24/40 Bent 105° Adapter, (2) 24/40 Round Bottom Boiling Flask, (2) Coated Jaws Burette Clamp, (2) 5 in x 8 in Cast Iron Support Stand, 5 Keck Clamps, Thermometer Adapter |
