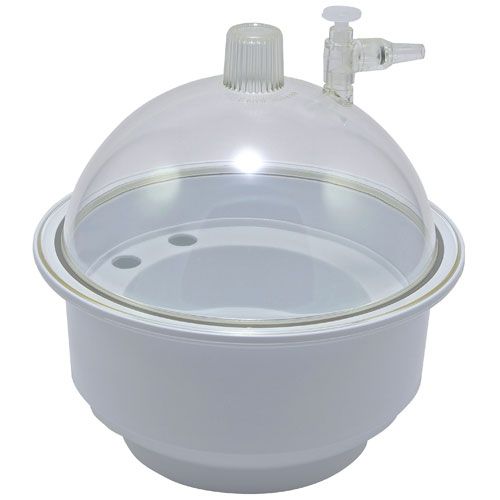

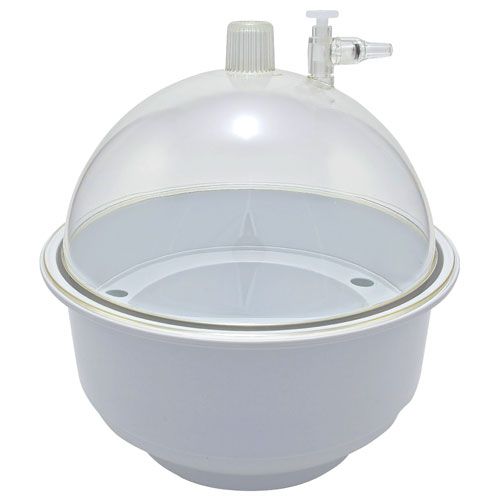

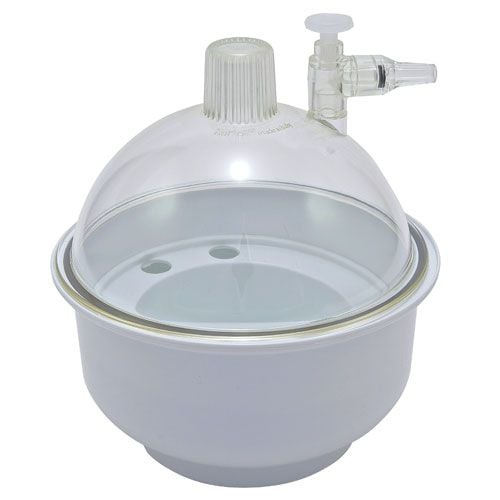

Plastic Vacuum Desiccators

The desiccator's robust construction and thoughtful design provide superior performance and convenience. A polycarbonate cover and a polypropylene base make the unit unbreakable, while a neoprene "O" ring provides an excellent, greaseless seal. It holds a high-quality vacuum of 740 mm Hg for up to 24 hours. A key feature is the vacuum retention valve, which allows air to be re-admitted slowly to prevent any disturbance to your samples. A removable pan for a drying agent, such as calcium chloride, is also included for your convenience. The desiccators are available in three capacities to meet a variety of lab needs.

Features:

• Unbreakable, implosion-proof polycarbonate cover and polypropylene base
• Holds a high-quality vacuum of 740 mm Hg for 24 hours with minimal loss
• Neoprene "O" ring in the bottom groove for an excellent seal
• Removable pan for holding calcium chloride or other drying agents
• Vacuum retention valve allows air to enter slowly to prevent damage to samples
• Available in three capacities: 2.15L, 4.35L, and 9.2L

Usage Instructions:

1. Remove the cover in PC - insert the samples in the pan
2. Open the vacuum retention valve (PE needle) and connect the tube of the pump to the desiccator spigot in order to create a vacuum
3. Close the vacuum retention valve

Plate Diameter:

• TLDKT243025/256025: 5.5 in (141 mm)
• TLDKT243045/256045: 7.5 in (190 mm)
• TLDKT243065/256065: 9.4 in (239 mm)
